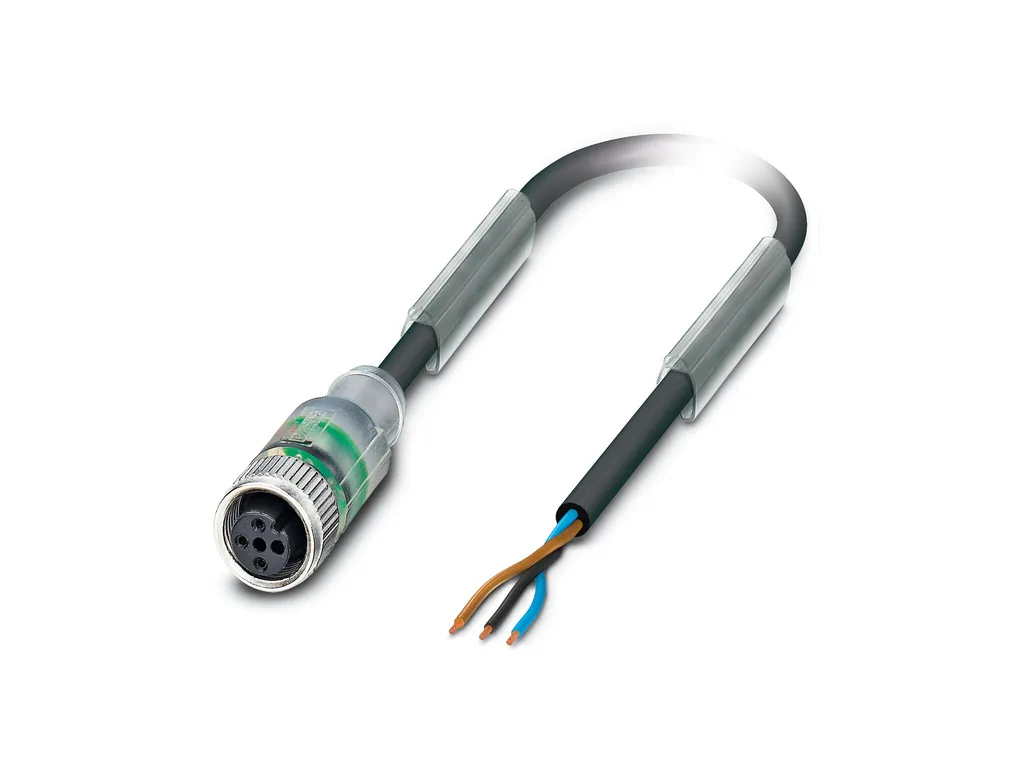

| Product properties | Product type: Sensor/actuator cable Number of positions: 4 Application: External areas No. of cable outlets: 1 Shielded: no Coding: A Insulation characteristics Overvoltage category: II Degree of pollution: 3 |
| Material specifications | Flammability rating according to UL 94: V0 Seal material: FPM Material of grip body: PP Contact material: CuSn Contact surface material: Ni/Au Contact carrier material: PP Material for screw connection: Stainless steel |
| Electrical properties | Contact resistance: ââ°¤ 5 mé Insulation resistance: ââ°¥ 100 Mé Nominal voltage UN: 250 VÃAC 250 VÃDC Nominal current IN: 4 A Protective circuit: unwired |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ââ°¥ 100 |
| Signaling | Status display: No Status display present: No |
| Connection data | Conductor connection Tightening torque: 0.4 Nm (M12 connector) |
| Connector | Connection 1 Type: free cable end Connection 2 Type: Socket straight M12 Number of positions: 4 Coding type: A |
| Cable/line | Cable length: 5 m PE-X blackÃ[28X] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/913dcd66dd479b4897ac358d309324f9/-S204x204-FJPG Cable weight: 44 kg/km Number of positions: 4 Shielded: no Cable type: PE-X blackÃ[28X] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 4x 0.5 mm² (Signal line) Wire diameter incl. insulation: 1.6 mm ñ0.05 mm (Signal line) External cable diameter: 5.2 mm ñ0.2Ãmm Outer sheath, material: PE-X External sheath, color: black-gray RAL 7021 Conductor material: Bare Cu litz wires Material wire insulation: PE-X Single wire, color: brown, white, blue, black Thickness, insulation: approx. 0.3 mm (Core insulation) approx. 0.6 mm (Outer cable sheath) Overall twist: 4 wires, twisted Length of twist, overall twist: 61.6 mm Max. conductor resistance: ââ°¤ 39 é/km (at 20ðC) Insulation resistance: ââ°¥ 100 Mé*km (at 20ðC) Nominal voltage, cable: ââ°¤ 300 VÃAC Test voltage: ââ°¥ 3000 VÃAC Smallest bending radius, fixed installation: 26 mm Smallest bending radius, movable installation: 52 mm Max. bending cycles: 2000000 Halogen-free: in accordance with DINÃVDEÃ0472 partÃ815 Flame resistance: according to DINÃ60332-1-2 according to DINÃENÃ50266-2-5 according to IEC 60332-3-25 (bunched fire test) Fume corrosiveness: according to IEC 60754 Concentration of fumes: according to DINÃENÃ61034 Resistance to oil: in accordance with DINÃENÃ60811-2-1 Other resistance: UV resistant according to DINÃVDEÃ0276-605 Special properties: Irradiated Ambient temperature (operation): -40°C ... 105°C (cable, fixed installation) -15°C ... 105°C (Cable, flexible installation) 120°C (at 48 h - see test report 19233) 180°C (at 48 h - see test report 19233) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP68 IP69K Ambient temperature (operation): -40°C ... 105°C (Plug / socket) -40°C ... 85°C (On sudden changes in temperature (according to IEC 60512-11-4)) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
