| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. |
| Mounting | Assembly instructions: The wires can be connected both with ferrules and without ferrules Connection method: Screw connection |

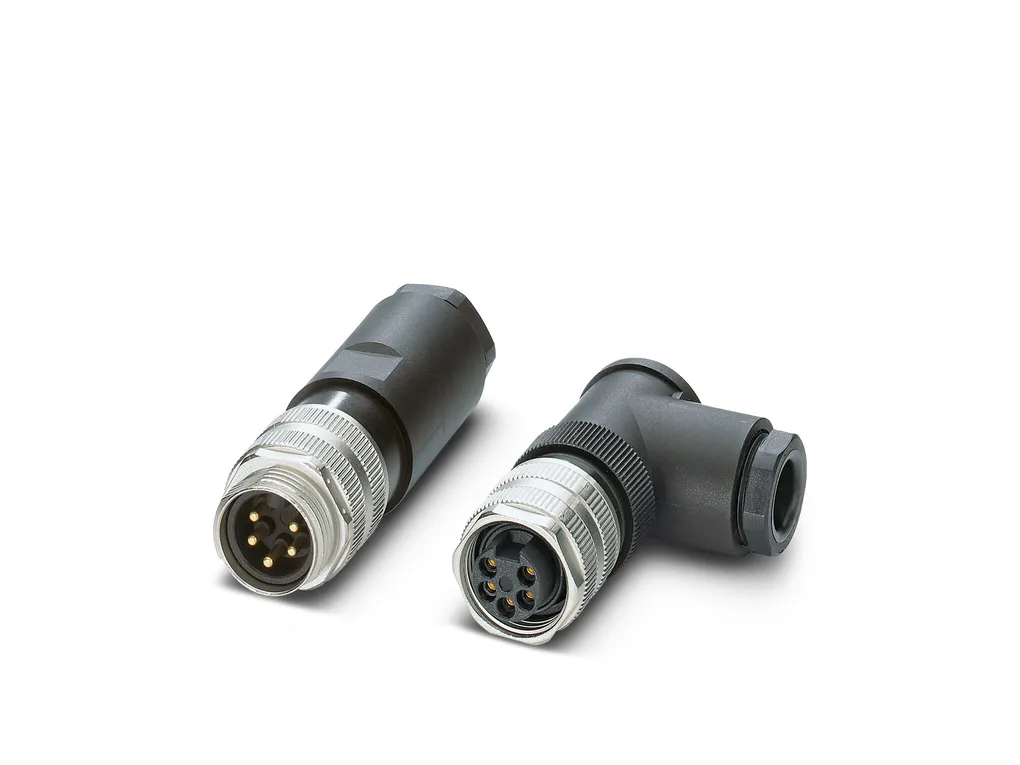

| Product properties | Product type: Circular connector (cable-side) Sensor type: Universal Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: angled Pg screw connection: Pg13,5 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/2423e230de9c7541a11dae3b1bc69e7f/-S204x204-FJPG Width: 28 mm Height: 53 mm Length: 71.6 mm External dimensions Outside diameter: 10 mm ... 12 mm Housing Diameter housing: 28 mm |
| Material specifications | Flammability rating according to UL 94: HB Material of grip body: PBT Contact material: CuZn Contact surface material: Au Contact carrier material: PUR/PA 6.6 Material for screw connection: Zinc die-cast, nickel-plated |
| Connection data | Conductor connection Connection method: Screw connection Connection cross section: 0.34 mm² ... 2.5 mm² (without ferrule) 0.34 mm² ... 2.5 mm² (with ferrule) 0.34 mm² ... 2.5 mm² (solid) Connection cross section AWG: 22 ... 14 (without ferrule) 22 ... 14 (with ferrule) Stripping length of the individual wire: 7 mm Tightening torque: 0.8 Nm (7/8" connectors) 0.4 Nm (Screw terminal blocks) 1 Nm ... 1.4 Nm (Pressure screw) |
| Electrical properties | Rated surge voltage: 4 kV Contact resistance: ⤠5 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 300 VAC 300 VDC Nominal current IN: 9 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Connector | Connection 1 Head design: Plug Head cable outlet: angled Head thread type: 7/8"-16UNF Coding: A |
| Cable/line | Signal type/category: Universal Stripping length of the individual wire: 7 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -25°C ... 85°C (Plug / socket) |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 9.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
