1508310 PHOENIX CONTACT - Technology Bsa

RCK-TGUM/BL12/15,0PUR-U - Master cable

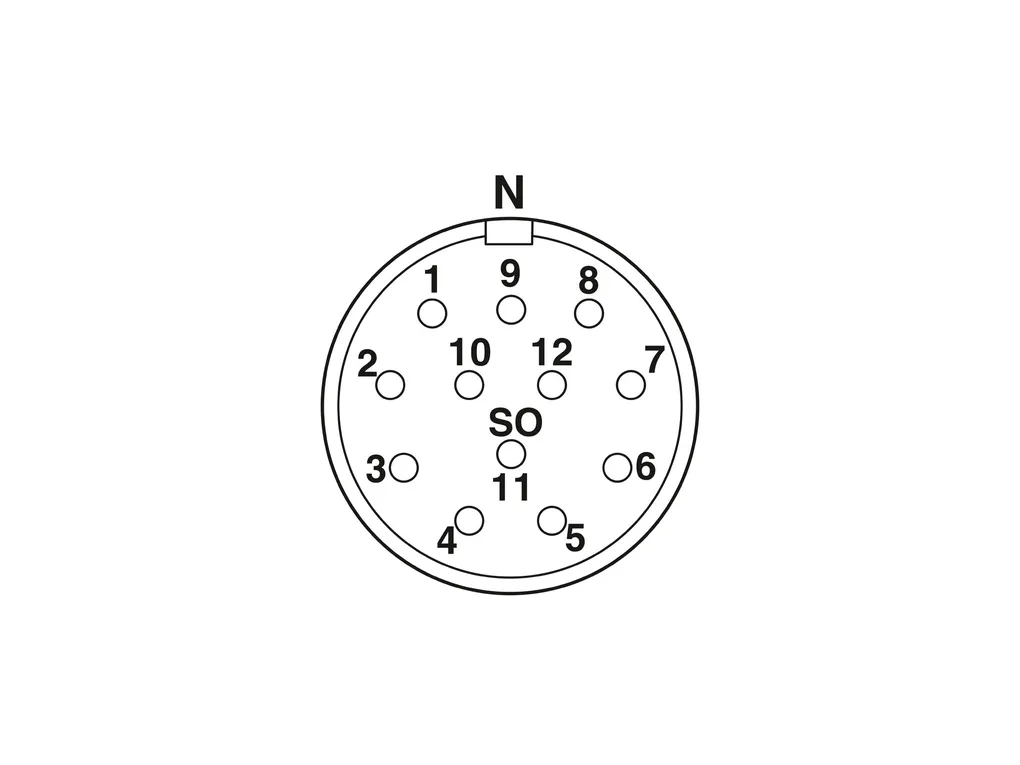

Master cable, connection method: M12 socket, number of positions: 12, status display: No; master cable connection: M23 socket, cable length: 15 m, shielding: no, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1260768

Product Code: 1508310

Partner cod.: 1508310

PHOENIX CONTACT

Product properties	Product type: Master cable, assembled Number of positions: 12
Electrical properties	Nominal voltage U_N: 48 VAC 60 VDC
Signaling	Status display present: No
Material specifications	Material: PUR Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: gold-plated
Cable/line	Cable length: 15 m PUR/PVC black[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/32ff8981971ece47a157c2350faaa7a4/-S204x204-FJPG Cable weight: 107.4 kg/km UL AWM Style: 20549 (80°C/300 V) Number of positions: 11 Shielded: no Cable type: PUR/PVC black[PUR] Conductor structure signal line: 19x 0.15 mm AWG signal line: 22 Conductor cross section: 8x 0.34 mm² (Signal line) 3x 0.75 mm² (power line) Wire diameter incl. insulation: 1.3 mm ±0.1mm (Signal line) 1.8 mm ±0.1mm (power line) External cable diameter: 8.5 mm ±0.2mm Outer sheath, material: PUR External sheath, color: black RAL9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet Inner sheath thickness: Ã¢¥ 0.15 mm Thickness, outer sheath: Ã¢¥ 0.38 mm Overall twist: Wires twisted in layers Max. conductor resistance: Ã¢¤ 53 Ã©/km (Signal line) Ã¢¤ 26 Ã©/km (power line) Insulation resistance: Ã¢¥ 5 MÃ©*km Nominal voltage, cable: 300 VAC Test voltage Core/Core: 2000 V (50Hz, 5min.) Minimum bending radius, fixed installation: 7.5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 1500000 Flame resistance: DINEN50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -40°C ... 125°C
Mounting	Connection method: Fixed connection
