Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. Unused slots are to be sealed off prior to commissioning. Suitable sealing elements are to be found under "Accessories". |

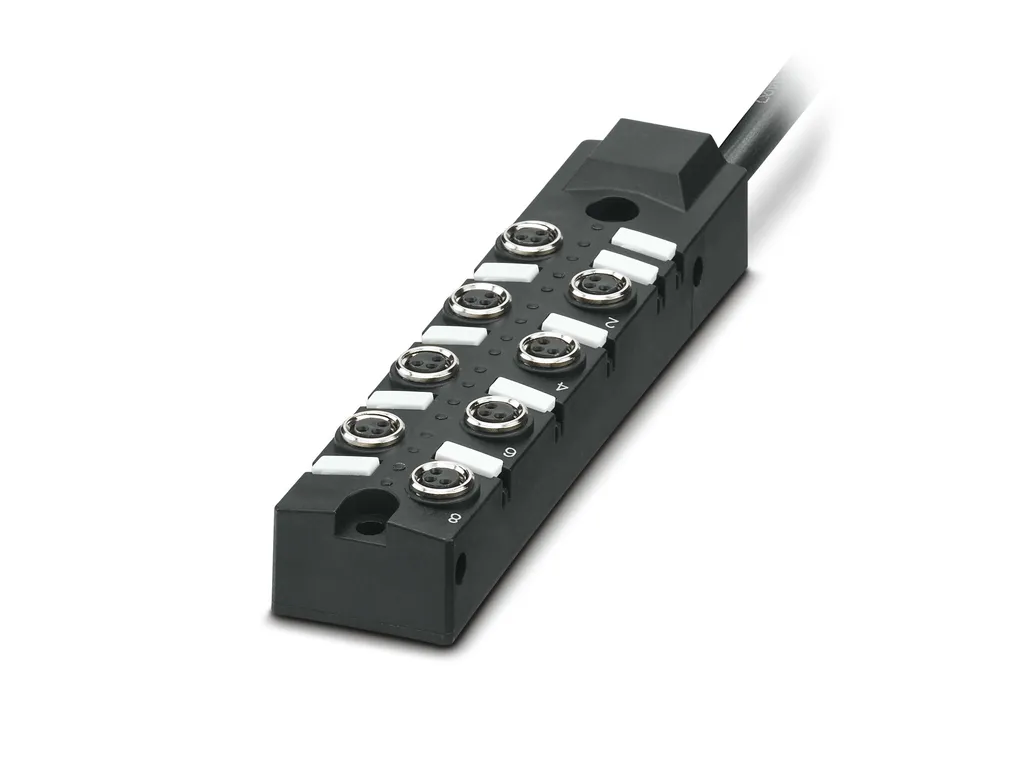

Product properties | Product type: Header with metric measurement slots Number of positions: 5 Application: Standard Number of slots: 6 Coding: A LED: yes |
System properties | Local diagnostics Monitored function: Supply voltage per module Optical representation: Green LED |
Electrical properties | Max. operating voltage Umax: 30 VDC Local diagnostics: Supply voltage per module Green LED Status display I/O Yellow LED Nominal voltage UN: 24 VDC Rated current, total: 10 A 2x 8 A (For electrical isolation) Max. current carrying capacity per path: 2 A Current carrying capacity per slot: 4 A |
Signaling | Status display present: Yes |

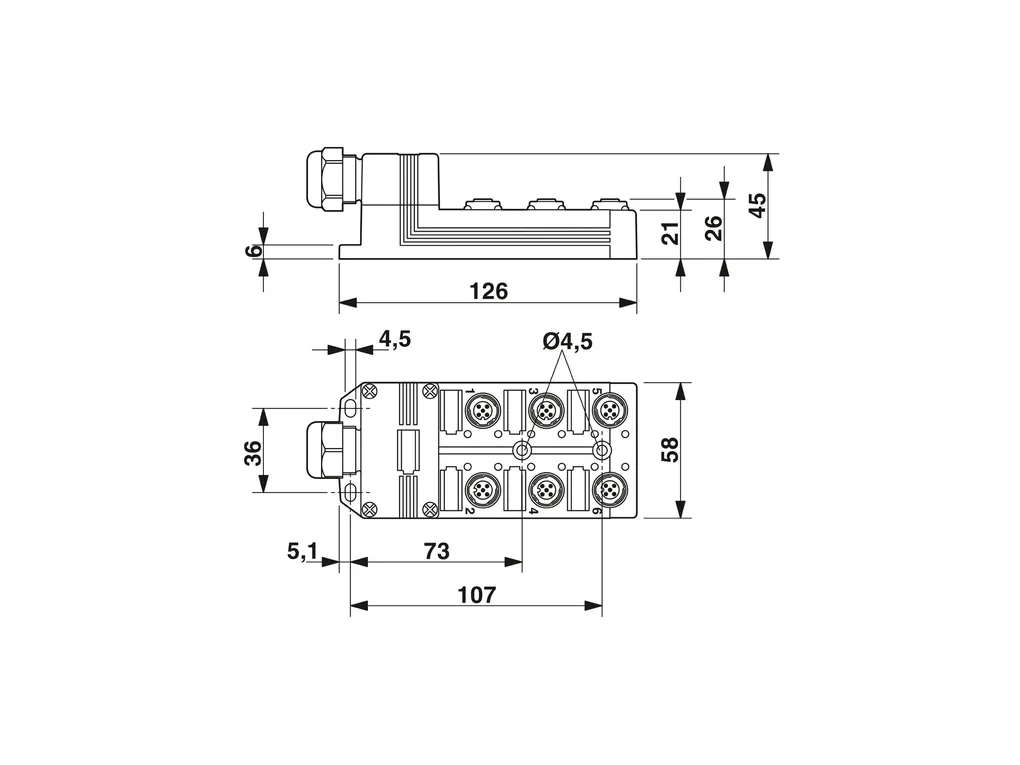

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/25dd43c7d2e2c84ca0ea03df7c3fc7a1/-S204x204-FJPG Width: 58 mm Height: 26 mm Length: 126 mm |
Material specifications | Material: Die-cast zinc PBT PUR Flammability rating according to UL 94: V0 Seal material O-ring: NBR Contact material: Cu alloy Contact surface material: gold-plated Contact carrier material: PA Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA 6.6 V0 Material of contact surface, master cable side: gold-plated |
Cable/line | Sensor/actuator connection system: M12-SPEEDCON-socket Connection method: Pluggable screw connection Tightening torque of mounting screw for fixing the housing: 0.5 Nm Tightening torque slot sensor/actuator cable: 0.4 Nm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP65 IP67 IP69K Ambient temperature (operation): -30°C ... 80°C |
Standards and regulations | Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
