1519529 PHOENIX CONTACT - Technology Bsa

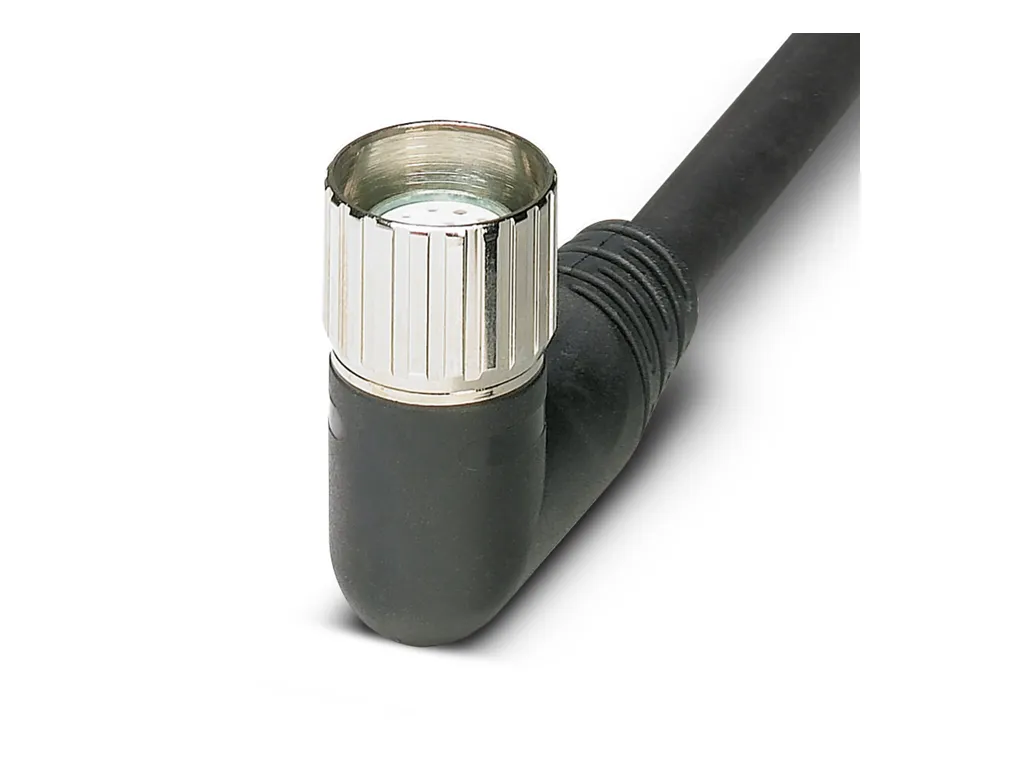

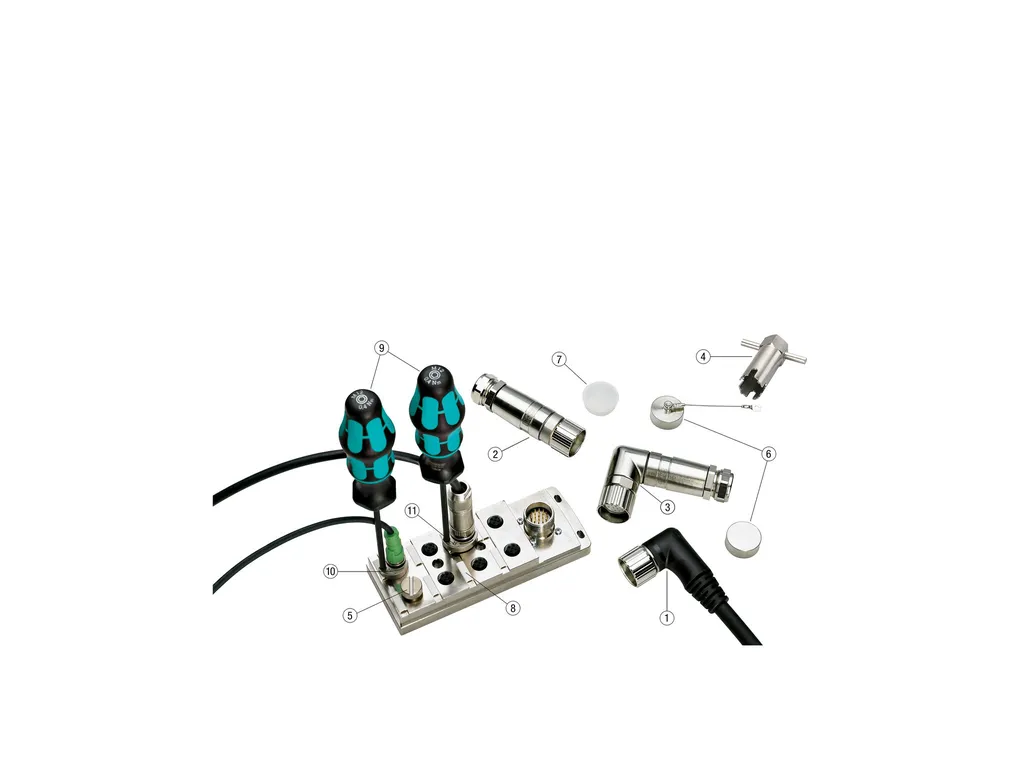

RCK-TWGM/BL16+3/ 5,0PUR SH - Master cable

Master cable, application: Sensor/actuator box, connection method: M12 socket Metal, number of positions: 19, slot assignment: Double, status display: No; master cable connection: M23 plug connection, PUR/PVC, cable length: 5 m, shielding: yes, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1260760

Product Code: 1519529 Copia - Copy

Partner cod.: 1519529 Copia - Copy

PHOENIX CONTACT

Notes	General: The master cable is earmarked for use on the sensor/actuator boxes with an M23 plug-in connection.
Product properties	Product type: Master cable, assembled Number of positions: 19 Application: Sensor/actuator box
Electrical properties	Nominal voltage U_N: 48 VÃAC 60 VÃDC
Signaling	Status display present: No
Material specifications	Material: PUR Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: gold-plated
Connector	Connection 1 Head design: Socket Head cable outlet: angled Head thread type: M23 Connection 2 Head design: free cable end
Cable/line	Cable length: 5 m PUR/PVC shielded, blackÃ[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/9c0d5b139ce12045a6daef336e423e07/-S204x204-FJPG Number of positions: 19 Shielded: yes Cable type: PUR/PVC shielded, blackÃ[PUR] Conductor structure signal line: 64x 0.10 mm AWG signal line: 20 Conductor cross section: 16x 0.5 mm² (Signal line) 3x 1 mm² (Power supply) External cable diameter: 11.6 mm Ã±0.3Ãmm Outer sheath, material: PUR External sheath, color: deep black RAL 9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown Overall twist: Wires twisted in layers Nominal voltage, cable: 300 V Test voltage: 2000 V Max. bending cycles: 1500000 Flame resistance: DINÃENÃ50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Free of substances which would hinder coating with paint or varnish Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 Ambient temperature (operation): -40°C ... 125°C (Plug / socket)
Mounting	Connection method: Fixed connection
