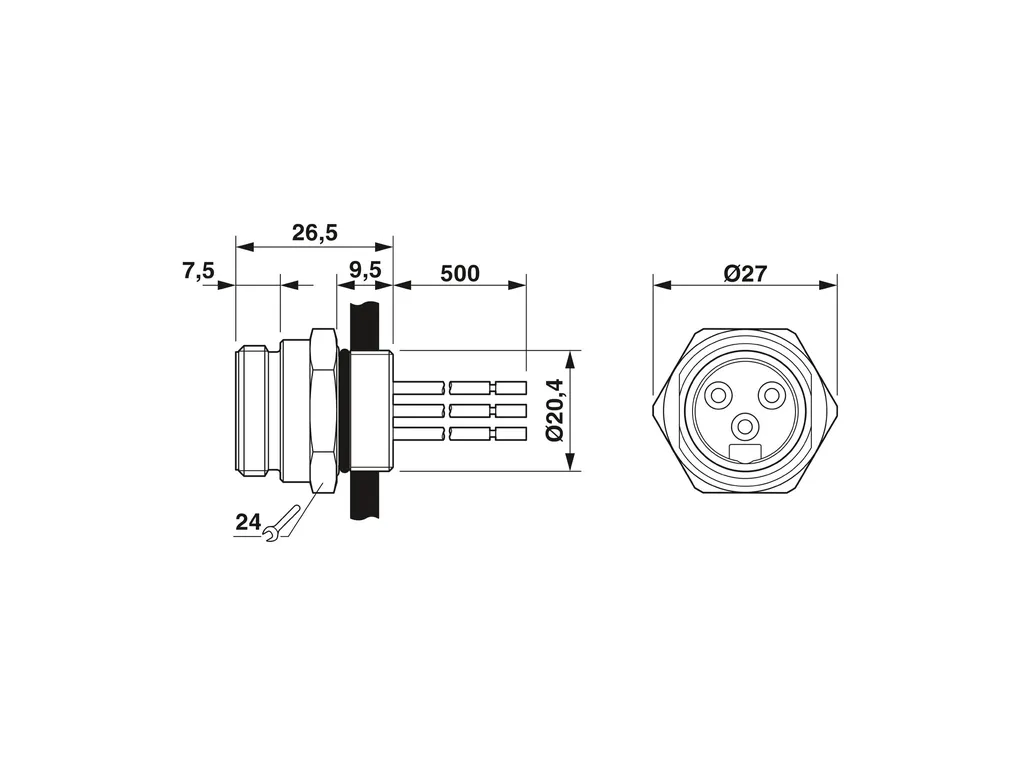

SACC-E-MINMS-5CON-PG13/0,5 - Device connector front mounting

Sensor/actuator flush-type plug, 5-pos., 7/8", front mounting with Pg13.5 thread, with 0.5 m PVC litz wire, 5 x 0.75 mm²

Product Code: 1521452 Copia - Copy

Partner cod.: 1521452 Copia - Copy

PHOENIX CONTACT

Mounting	Mounting type: Front mounting Pg13.5 Connection method: Individual wires
Product properties	Product type: Circular connectors (device side) Number of positions: 5 No. of cable outlets: 1 Shielded: no Coding: A Thread type: 7/8" Insulation characteristics Overvoltage category: II Degree of pollution: 3
Material specifications	Flammability rating according to UL 94: HB Seal material: Viton Contact material: CuZn Contact surface material: Au Contact carrier material: PUR Material for screw connection: Zinc die-cast, nickel-plated
Electrical properties	Contact resistance: Ã¢Ã¢°¤ 5 mÃ© Insulation resistance: Ã¢Ã¢°¥ 100 MÃ© Nominal voltage U_N: 250 V Nominal current I_N: 9 A
Connection data	Conductor connection Connection method: Individual wires Contact connection type: Socket Conductor cross section: 0.75 mm²
Connector	Connection 1 Head design: Pin Head cable outlet: straight Head thread type: 7/8"-16UNF Connection 2 Head design: free cable end
Cable/line	Cable length: 0.5 m Cable type: PVC litz wire Wire diameter incl. insulation: 2.7 mm Single wire, color: brown, white, blue, black, green-yellow Cable cross section: 0.75 mm² Conductor structure signal line: 24x 0.20 mm AWG signal line: 18 Material wire insulation: PE Thickness, insulation: 0.85 mm (Core insulation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug) -40°C ... 85°C (cable, fixed installation)
