1537938 PHOENIX CONTACT - Technology Bsa

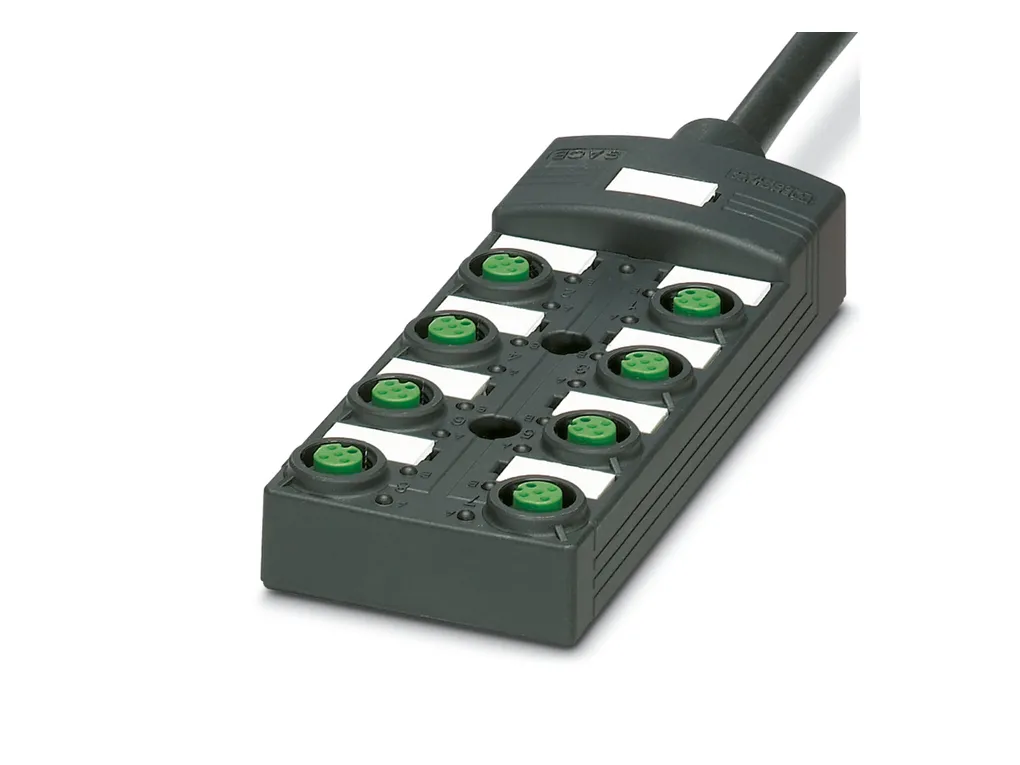

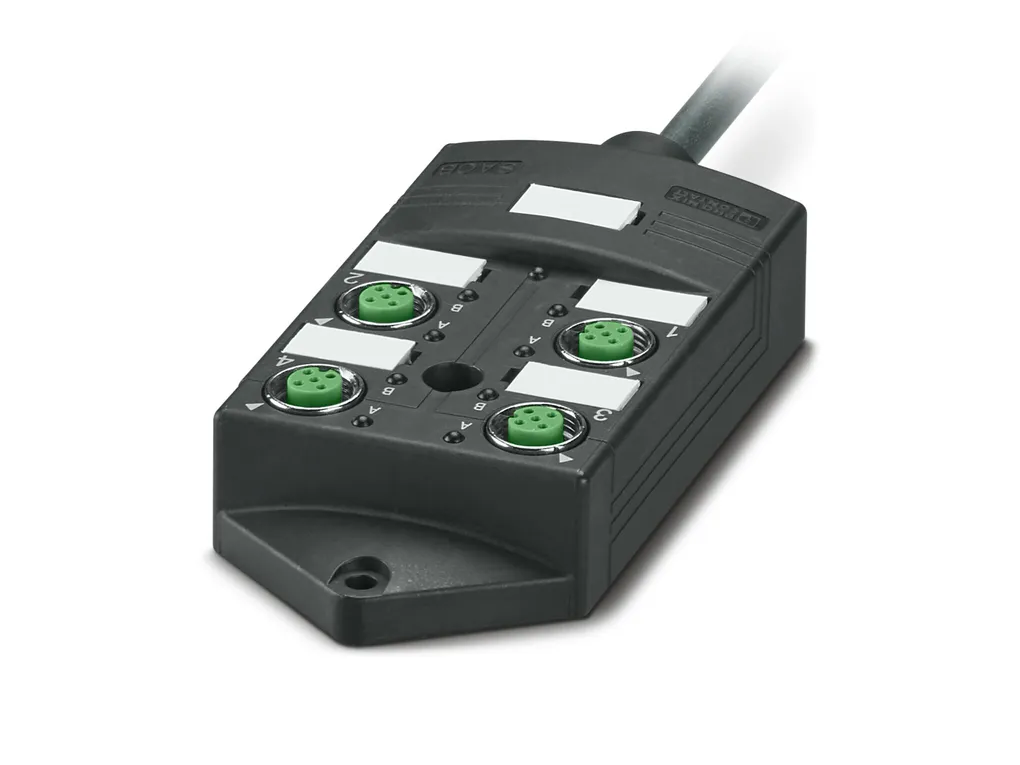

SACB-C-H180-8/16-15,0PUR SCO - Connector hood

Connector hood, application: Sensor/actuator box, connection method: M12-SPEEDCON-socket Metal / QUICKON, number of slots: 8, slot assignment: Double, status display: No; master cable connection: Pluggable screw connection 180°, PUR/PVC, cable length: 15 m, shielding: no

Product Code: 1537938

Partner cod.: 1537938

PHOENIX CONTACT

Notes	General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties.
Product properties	Product type: Connector hood Application: Sensor/actuator box Number of slots: 8 LED: No
Electrical properties	Nominal voltage U_N: 120 VAC 120 VDC Rated current, total: 10 A Max. current carrying capacity per path: 2 A
Signaling	Status display present: No
Dimensions	Width: 58 mm Height: 21 mm Length: 34 mm
Material specifications	Material: PBT Material of contact, master cable side: CU alloy Material of the contact carrier on the master cable side: PA Material of contact surface, master cable side: gold-plated
Cable/line	Cable length: 15 m PUR/PVC black[PUR] Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d30eea0a677da64eabc3381e76b117f4/-S204x204-FJPG Cable weight: 183.7 kg/km UL AWM Style: 20549 (80°C/300 V) Number of positions: 19 Shielded: no Cable type: PUR/PVC black[PUR] Conductor structure signal line: 28x 0.15 mm AWG signal line: 20 Conductor cross section: 16x 0.5 mm² (Signal line) 3x 1 mm² (power line) Wire diameter incl. insulation: 1.5 mm ±0.1mm (Signal line) 2.1 mm ±0.1mm (power line) External cable diameter: 10.5 mm ±0.2mm Outer sheath, material: PUR External sheath, color: black RAL9005 Conductor material: Bare Cu litz wires Material wire insulation: PVC Single wire, color: brown, blue, green/yellow, white, green, yellow, gray, pink, red, black, violet, gray/pink, red/blue, white/green, brown/green, white/yellow, yellow/brown, white/gray, gray/brown Inner sheath thickness: Ã¢¥ 0.15 mm Thickness, outer sheath: Ã¢¥ 0.76 mm Overall twist: Wires twisted in layers Nominal voltage, cable: 300 V Test voltage: 2000 V Minimum bending radius, fixed installation: 7.5 x D Minimum bending radius, flexible installation: 10 x D Max. bending cycles: 1500000 Flame resistance: according to DINEN50265 Resistance to oil: according to VDE 0472 Part 803 Other resistance: Highly resistant to acids, alkaline solutions and solvents Special properties: Silicone-free Ambient temperature (operation): -40°C ... 90°C (cable, fixed installation) -5°C ... 80°C (Cable, flexible installation)
Environmental and real-life conditions	Ambient conditions Degree of protection: IP65 IP67 IP69K Ambient temperature (operation): -30°C ... 80°C
