| Notes | General: NOTE: Observe the permissible bending radii when laying conductors, since the degree of protection may be put in jeopardy if the bending forces are too high. Alleviate mechanical loads upstream of the connector, e.g.by using cable ties. |
| Mounting | Assembly instructions: The connector pin assignment can be rotated 90° to the cable outlet Connection method: Screw connection |
| Product properties | Product type: Circular connector (cable-side) Sensor type: Universal Number of positions: 4 No. of cable outlets: 1 Shielded: no Coding: A Cable outlet: angled Pg screw connection: Pg7 Insulation characteristics Overvoltage category: II Degree of pollution: 3 |

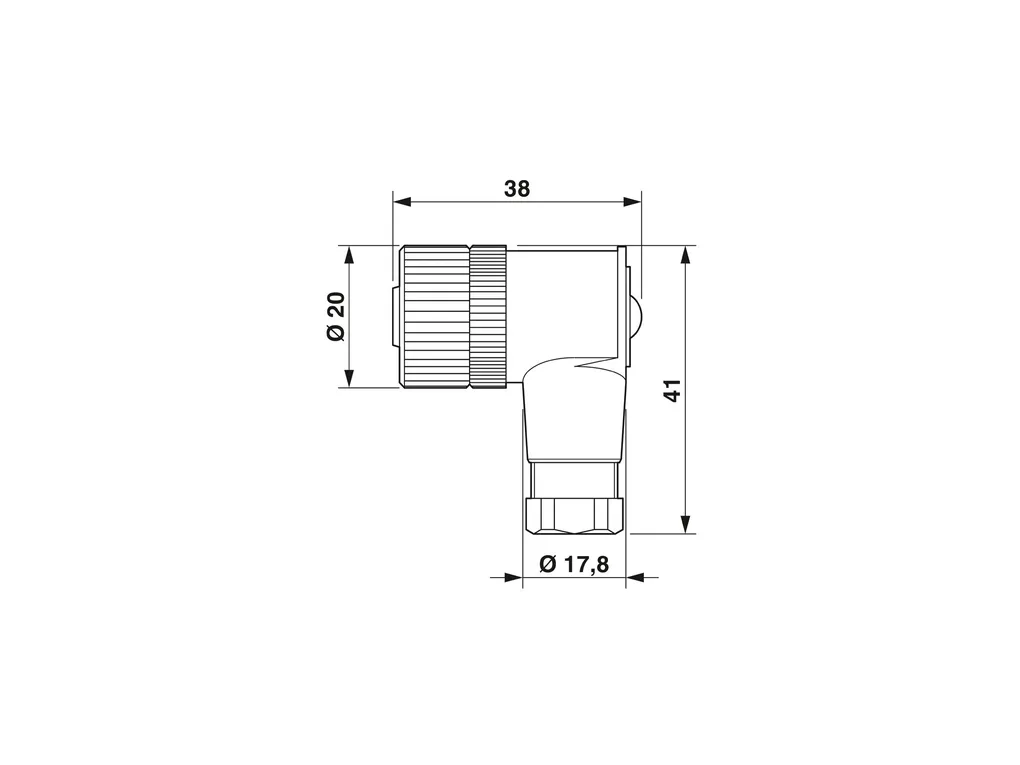

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/dfbb7b593de33d4a8f4c1e07c1addfc4/-S204x204-FJPG Length: 35 mm External dimensions Outside diameter: 4 mm ... 6 mm Housing Diameter housing: 20 mm |
| Material specifications | Flammability rating according to UL 94: HB Seal material: NBR Material of grip body: PBT Contact material: CuZn Contact surface material: CuSnZn Contact carrier material: PA Material for screw connection: Brass, nickel-plated |
| Connection data | Conductor connection Connection method: Screw connection Connection cross section: 0.25 mm² ... 0.75 mm² (without ferrule) 0.14 mm² ... 0.75 mm² (with ferrule) 0.25 mm² ... 0.75 mm² (solid) Connection cross section AWG: 24 ... 18 (without ferrule) 26 ... 20 (with ferrule) Stripping length of the individual wire: 5 mm Tightening torque: 0.4 Nm (M12 knurl) 0.2 Nm (Screw terminal blocks) 0.8 Nm ... 1 Nm (Pressure screw with sleeve housing) |
| Electrical properties | Rated surge voltage: 2.5 kV Contact resistance: ⤠8 mé Insulation resistance: ⥠100 Mé Nominal voltage UN: 250 VAC 250 VDC Nominal current IN: 4 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠100 |
| Connector | Connection 1 Head design: Socket Head cable outlet: angled Head thread type: M12 Head locking type: SPEEDCON Coding: A |
| Cable/line | Signal type/category: Universal Stripping length of the individual wire: 5 mm |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 85°C (Plug / socket) |
| Standards and regulations | M12 Standard designation: M12 connector Standards/specifications: IEC 61076-2-101 |
| ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
| ETIM | ETIM 9.0: EC002635 |
| UNSPSC | UNSPSC 21.0: 39121400 |
