| Notes | General: For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B24 type Connectors may be operated only when there is no load/voltage. |
| Product properties | Type: B24 for the right side of the control cabinet Product type: Terminal adapter Number of positions: 64 Connection profile: 64+PE Series: HC-D Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Electrical properties | Rated voltage (III/3): 250 V Rated surge voltage: 4 kV Rated current: 10 A SCCR: 5 kA (UL 2237) |
| Connection data | Connection technology Connection technology: Push-in connection Conductor connection Conductor cross section: 0.5 mm² ... 2.5 mm² Connection cross section AWG: 22 ... 12 Stripping length of the individual wire: 10 mm |

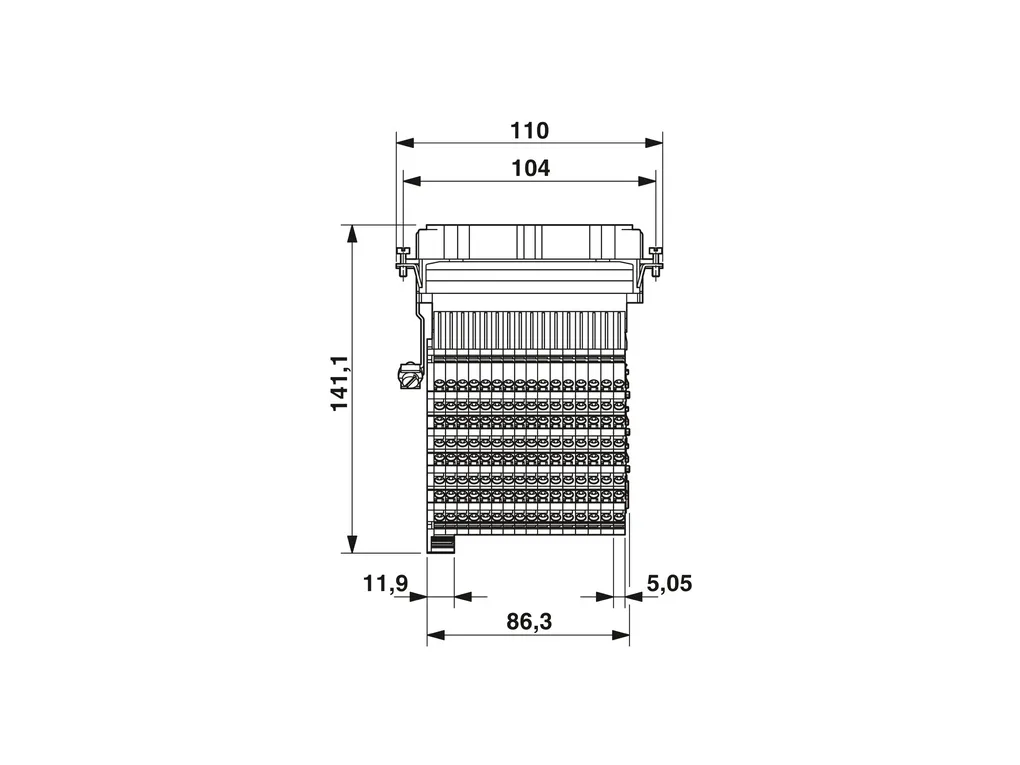

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8cec8cd127896f4eb02ee4421e4d267c/-S204x204-FJPG Width: 34 mm Height: 141.1 mm Length: 110 mm Drill hole distance, horizontal: 104 mm Drill hole distance, vertical: 27 mm |
| Material specifications | Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PA Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Cable/line | Stripping length of the individual wire: 10 mm |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C |
| Standards and regulations | Constructional and testing regulations: DINEN61984 DINEN60664 IEC 60352 Tests: DINEN61984 DINEN60664 IEC 60352 Testing Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Not for HC-EVO panel mounting bases Not for HC-EVO panel mounting bases Connectors may be plugged in only when there is no load/voltage. Not for HC-B 24-AMQ-EMV housings |
