HC-B 16-TMSO1STM32G/M25S-EEE - Housing
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: For contact inserts HC-B16, BB32, D40, DD72, HS6, HV6, M, K |
Product properties | Type: B16 Product type: Housing with screw locking Application: Offshore/EMC Type of the screw connection: 1x M25 / 1x M32 Fixing screws: M6 (screw head: 5 mm Allen screw) Housing type: Sleeve housing Cable outlet: straight |
Connection data | Tightening torque: 3 Nm (Locking screw) |

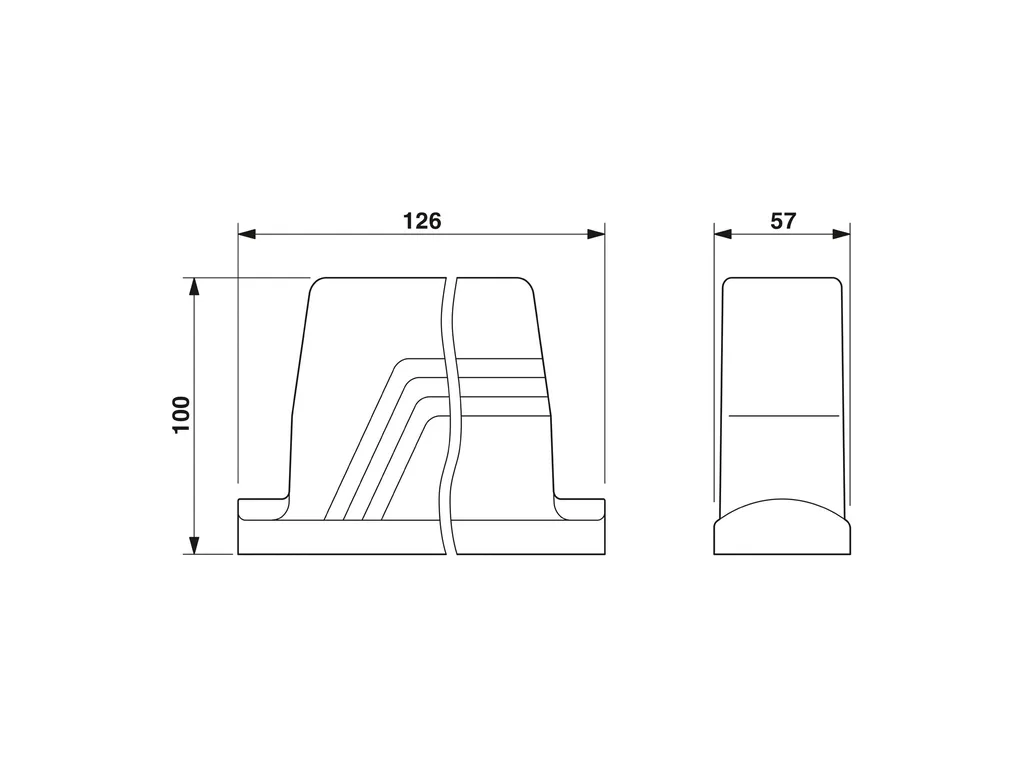

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/d8cc71a1553a2344a95adcf7711bdde1/-S204x204-FJPG Width: 57 mm Height: 100 mm Length: 126 mm Installation dimensions Width of the assembly cutout: 35 mm Length of the assembly cutout: 86 mm |
Material specifications | Seal material: NBR, conductive Housing surface material: uncoated Locking latch material: Stainless steel Housing material: Die-cast aluminum, salt water resistant |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP66 IP68 (0.2bar/24h) IP69 Enclosure rating (NEMA): 4 (NEMA 250) 4X (NEMA 250) 6P (NEMA 250) 12 (NEMA 250) Ambient temperature (operation): -40°C ... 125°C |
Mechanical properties | Mechanical data Type of the screw connection: 1x M25 / 1x M32 |
Mounting | Assembly instructions: In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. To ensure optimum shielding, any insulating power coating must be removed from the profile gasket area on the control cabinet panel. Tightening torque of locking screw: 3Nm. Fixing screws: M6 (screw head: 5 mm Allen screw) |
ECLASS | ECLASS-11.0: 27440202 ECLASS-12.0: 27440202 ECLASS-13.0: 27440202 |
ETIM | ETIM 9.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
