HC-D 64-A-UT-PER-F - Terminal adapter

HEAVYCON terminal adapter female insert, D64 series, 64-pos., left protective conductor connection for the right side of the control cabinet, screw connection

Product Code: 1584321

Partner cod.: 1584321

PHOENIX CONTACT

Notes	General: For HEAVYCON-ADVANCE mounting flange and HEAVYCON panel mounting base of B24 type Connectors may be operated only when there is no load/voltage.
Product properties	Type: B24 for the right side of the control cabinet Product type: Terminal adapter Number of positions: 64 Connection profile: 64+PE Series: HC-D Screwdriver blade: 0.5 x 3.5 mm Insulation characteristics Overvoltage category: III Degree of pollution: 3
Electrical properties	Rated voltage (III/3): 250 V Rated surge voltage: 4 kV Rated current: 10 A SCCR: 5 kA (UL 2237)
Connection data	Connection technology Connection technology: Screw connection Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.2 mm² ... 2.5 mm² Connection cross section AWG: 22 ... 12 Tightening torque: 0.5 Nm ... 0.8 Nm Stripping length of the individual wire: 10 mm

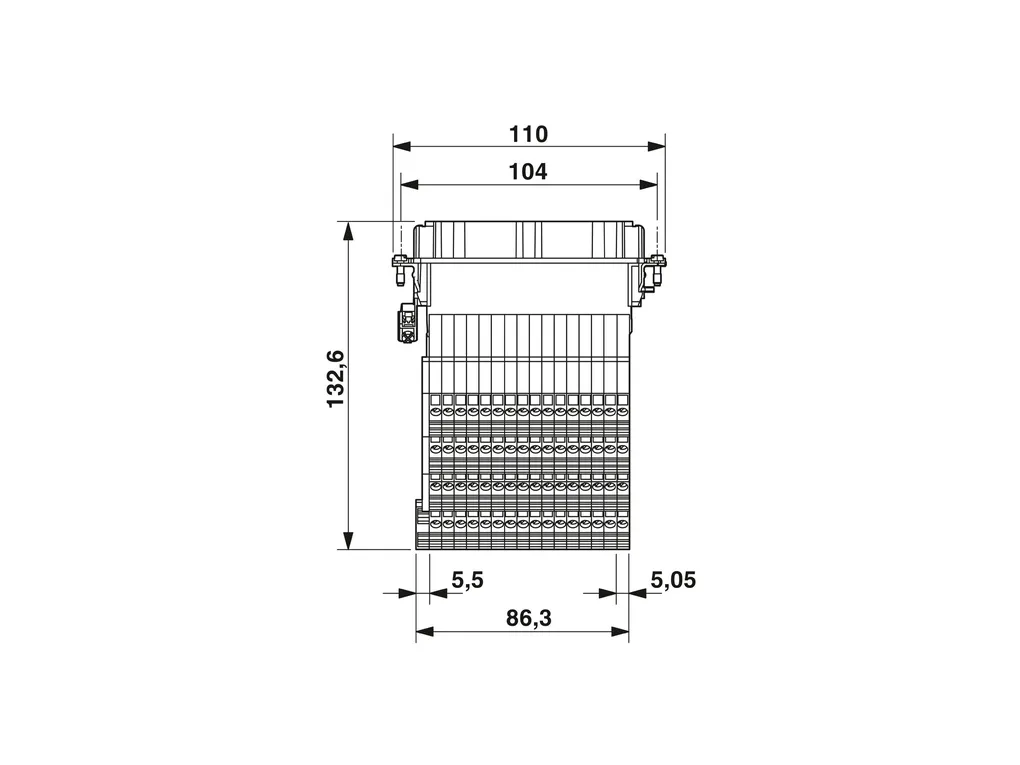

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/589e9b1718e6a44f83c0321635265e97/-S204x204-FJPG Width: 34 mm Height: 132.6 mm Length: 110 mm Drill hole distance, horizontal: 104 mm Drill hole distance, vertical: 27 mm
Material specifications	Flammability rating according to UL 94: V0 Contact material: Copper alloy Contact surface material: Ag Contact carrier material: PA Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3)
Cable/line	Stripping length of the individual wire: 10 mm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: Ã¢¥ 500
Environmental and real-life conditions	Ambient conditions Ambient temperature (operation): -40°C ... 125°C
Standards and regulations	Constructional and testing regulations: DINEN61984 DINEN60664 IEC 60352 Tests: DINEN61984 DINEN60664 IEC 60352 Testing Standards/regulations: PA: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3)
Mounting	Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required Not for HC-EVO panel mounting bases Not for HC-EVO panel mounting bases Not for HC-B 24-AMQ-EMV housings
