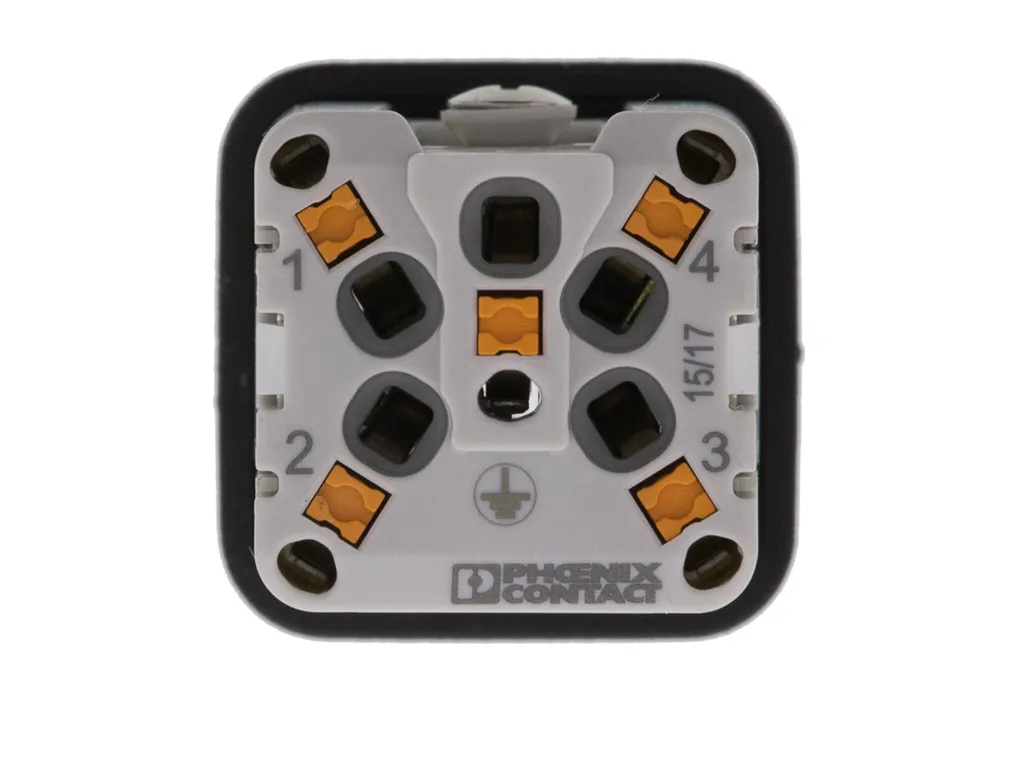

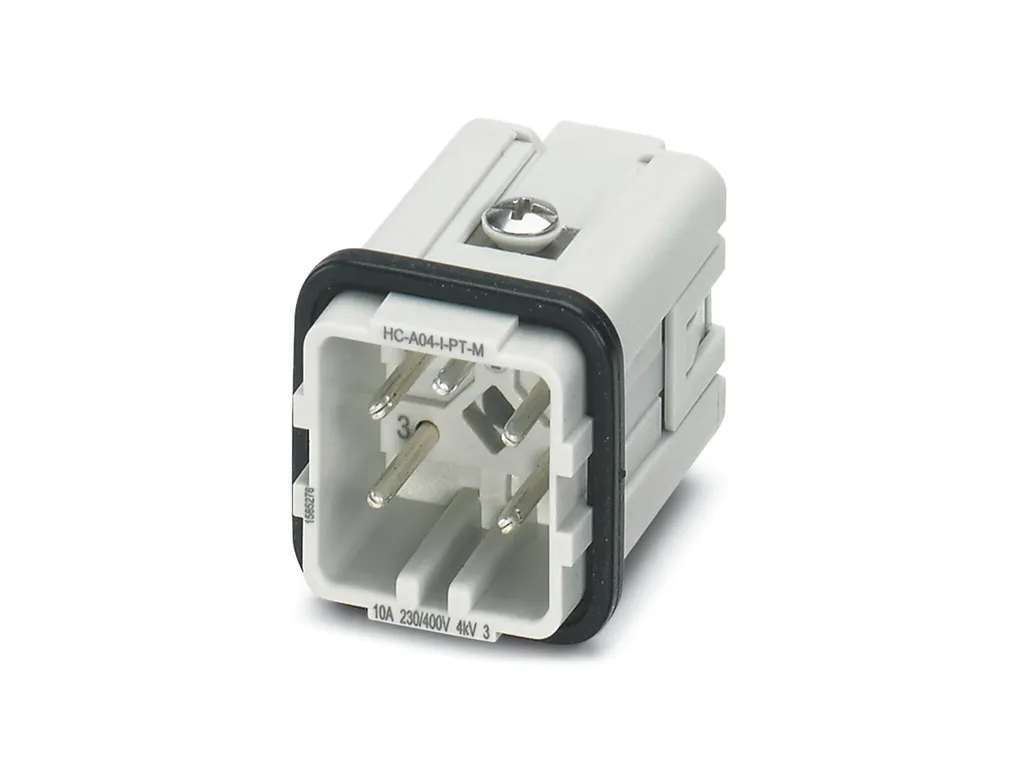

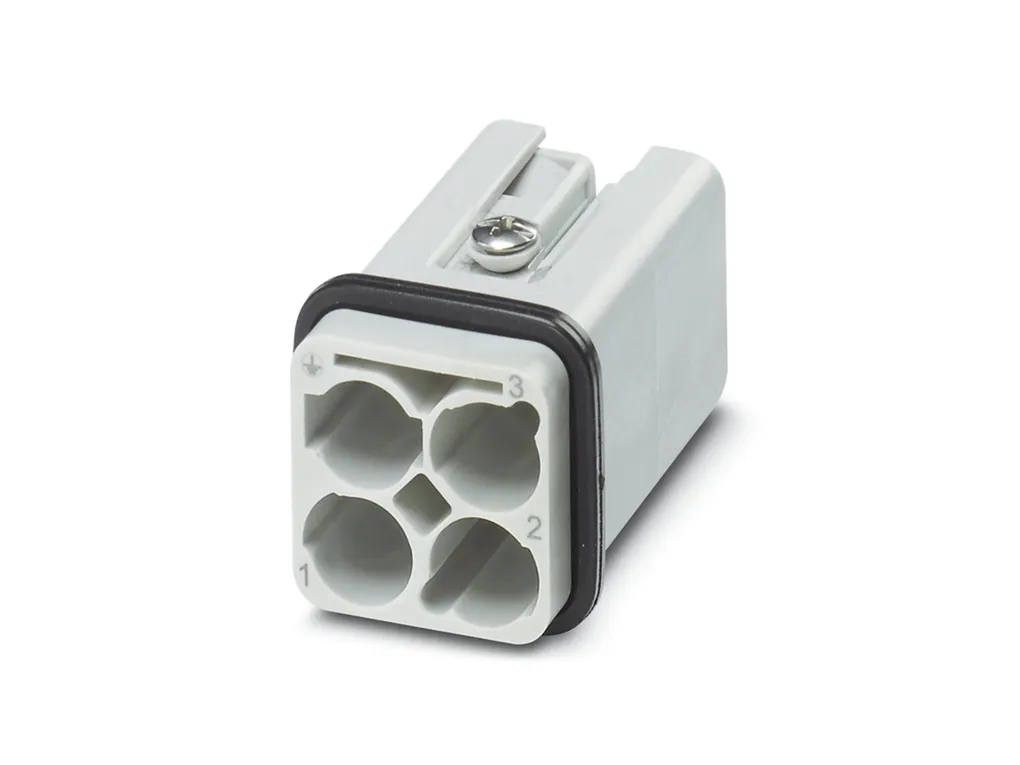

HC-A04-I-PT-M - Contact insert
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: only use flexible conductors with ferrules Connectors may be operated only when there is no load/voltage. for housing HC-D7 |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |
Product properties | Type: D7 Product type: Contact insert with a fixed no. of positions Number of positions: 4 Connection profile: 4+PE Contact numbering: 1 - 4 Number of connections per position: 1 Contact material type: rolled Series: HC-A Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/7b742efbc6dec94b96cbc46f709ab482/-S204x204-FJPG Width: 21 mm Height: 34 mm Length: 21 mm Mechanical characteristics Contact diameter: 1.6 mm |
Connection data | Connection technology Connection technology: Push-in connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.14 mm² ... 1.5 mm² Connection cross section AWG: 26 ... 16 Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 10 mm |
Electrical properties | Rated voltage (III/3): 230 V (Conductor-PE) 400 V (Conductor-Conductor) Rated voltage for power contacts: 230/400 V Rated surge voltage: 4 kV Rated current: 10 A |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
Material specifications | Flammability rating according to UL 94: V0 Seal material: NBR, conductive Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
Standards and regulations | Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121500 |
