| Notes | General: only use flexible conductors with ferrules Connectors may be operated only when there is no load/voltage. for housing HC-D7 |
| Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |

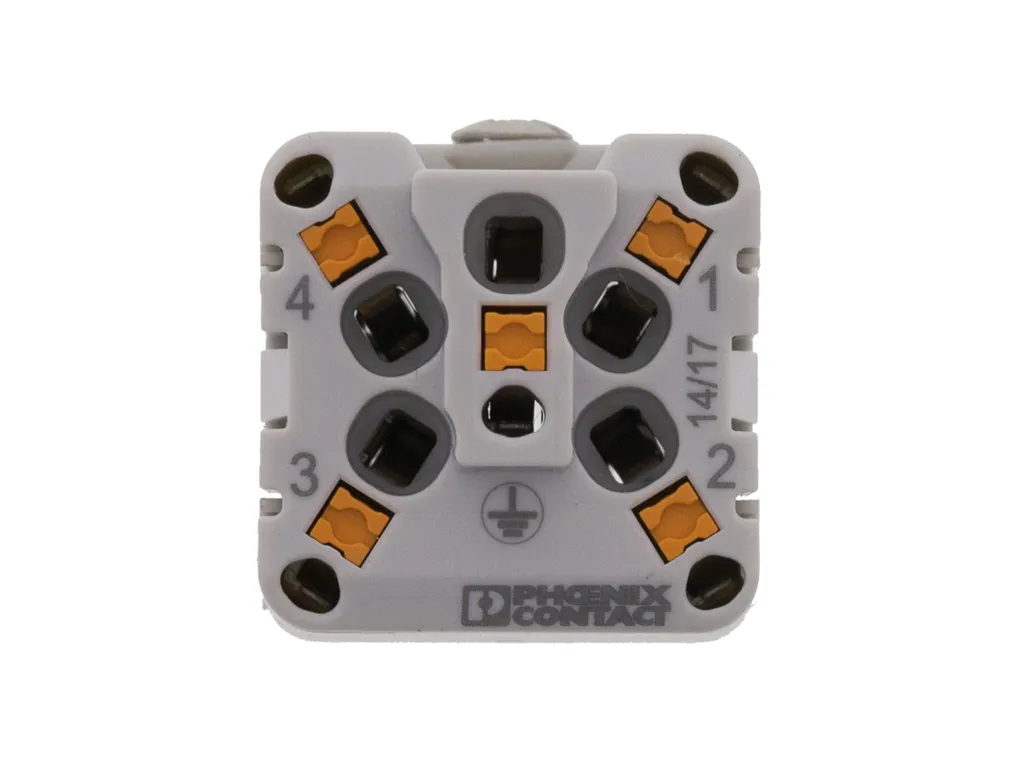

| Product properties | Type: D7 Product type: Contact insert with a fixed no. of positions Number of positions: 4 Connection profile: 4+PE Contact numbering: 1 - 4 Number of connections per position: 1 Contact material type: rolled Series: HC-A Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ac717b7f9b10d443892f5ff89acac059/-S204x204-FJPG Width: 21 mm Height: 33.5 mm Length: 21 mm Mechanical characteristics Contact diameter: 1.6 mm |
| Connection data | Connection technology Connection technology: Push-in connection Number of connections per position: 1 Connection in acc. with standard: IEC / EN Conductor connection Conductor cross section: 0.14 mm² ... 1.5 mm² Connection cross section AWG: 26 ... 16 Tightening torque: 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) Stripping length of the individual wire: 10 mm |
| Electrical properties | Rated voltage (III/3): 230 V 400 V (Conductor-Conductor) Rated voltage for power contacts: 230/400 V Rated surge voltage: 4 kV Rated current: 10 A |
| Mechanical properties | Mechanical data Insertion/withdrawal cycles: ≥ 500 |
| Material specifications | Flammability rating according to UL 94: V0 Contact surface material: Ag Contact carrier material: PC Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| Environmental and real-life conditions | Ambient conditions Degree of protection: IP20 Ambient temperature (operation): -40°C ... 125°C |
| Standards and regulations | Testing Standards/regulations: PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DINEN45545-2 (Risk level HL1 - HL3) |
| ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
| ETIM | ETIM 9.0: EC000438 |
| UNSPSC | UNSPSC 21.0: 39121500 |
