PHOENIX CONTACT 1586138
PHOENIX CONTACT 1586138
PHOENIX CONTACTNot available

HC-B 16-ANDOCK - Docking frame

Docking frame for racks, for contact inserts of B16 type, with four M5 flat headed screws, rack balance x/y axis ±1.5 mm
Product Code: 1586138
Partner cod.: 1586138
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesType: B16
Product type: Docking frame
Number of module slots: 4

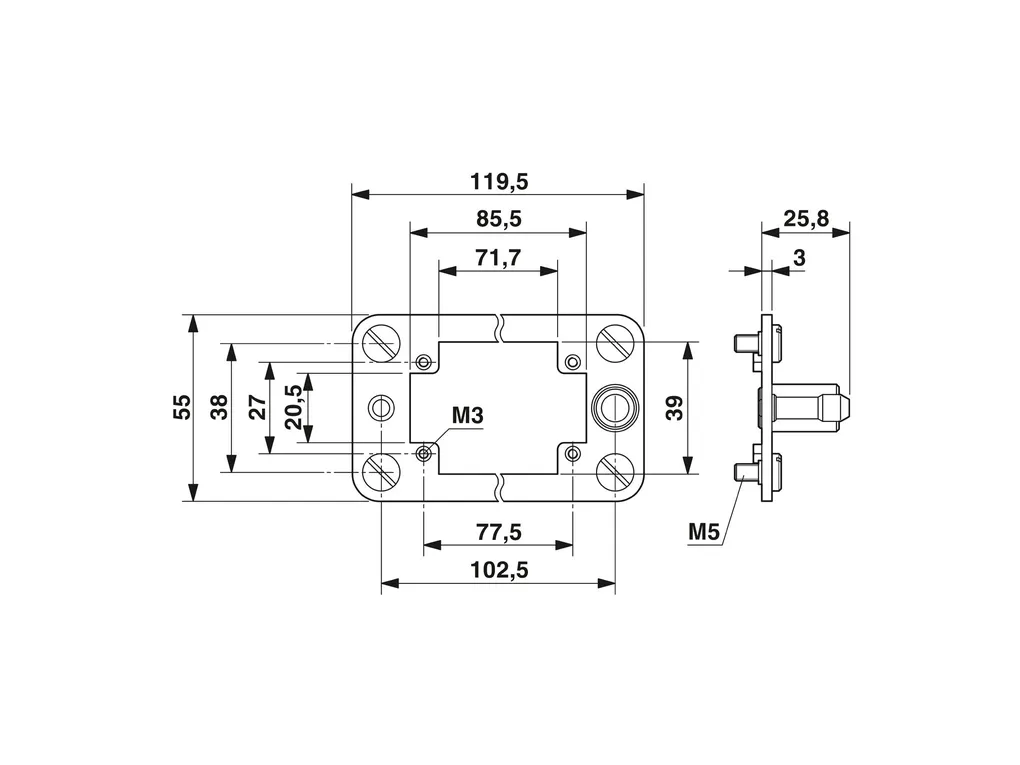

DimensionsDimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f93f710302482849b1aac26ef13a08d9/-S204x204-FJPG
Width: 55 mm
Height: 119.5 mm
Depth: 25.8 mm
Material specificationsMaterial: Stainless steel
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 500
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
MountingAssembly instructions: For contact inserts from series B16, D40, DD72, BB32, BBB40, K, M
