PHOENIX CONTACT 1592501
PHOENIX CONTACTNot available

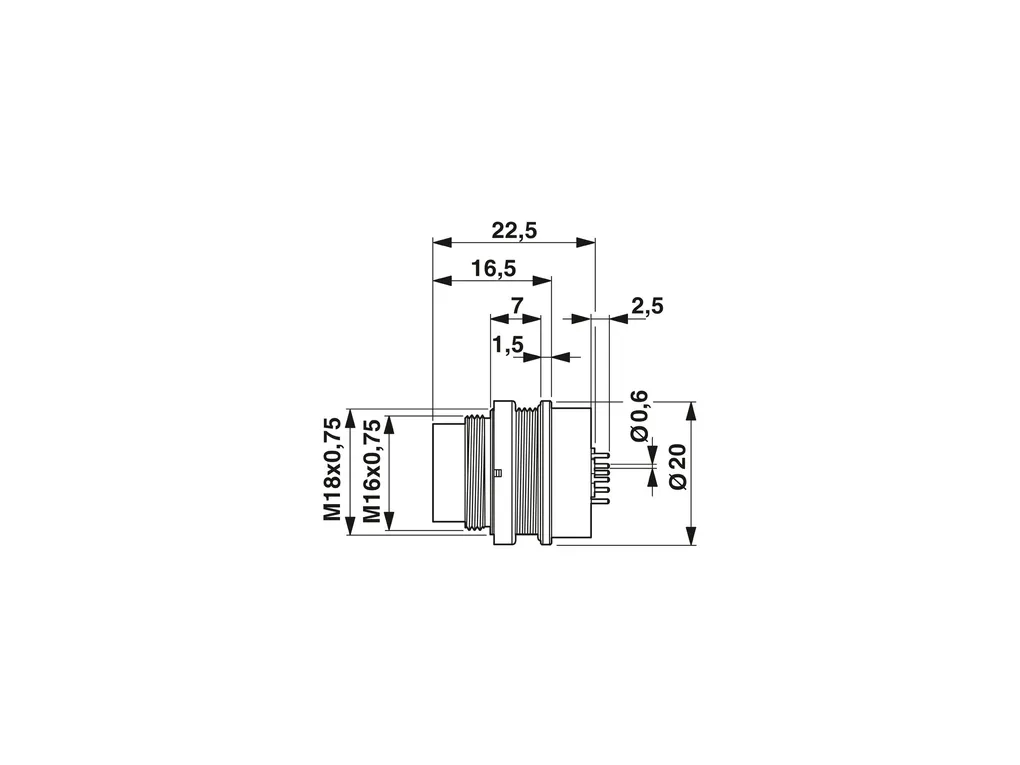

PV-14P1N22HG00 - Device connector, rear mounting

Device connector, rear mounting, straight, Screw locking mechanism, M16, number of positions: 14, contact connection type: Pin, Axial O-ring, Central fixing, shielded: no, degree of protection: IP67, number of positions: 14, connection method: Solder pins, series: PV
Product Code: 1592501
Partner cod.: 1592501
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
MountingMounting: Central fixing
Connection method: Solder pins
Product propertiesProduct type: Circular connectors (device side)
Number of positions: 14
Connection profile: 14
Application: Signal
Series: PV
Shielded: no
Coding: N
Thread type: M16
Material specificationsSeal material: FPM or NBR or EPDM
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Insulator material: PA 6.6
Contact material: CuZn
Contact surface: Nickel-plated, gold coating
Gasket and O-ring material: FPM
Electrical propertiesContact
Max. current: 800 mA
Nominal voltage UN: 48 VAC 74 VDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 0.8 kV
Connection dataConductor connection
Connection method: Solder pins
Contact connection type: Pin
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 50
ConnectorType: straight
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -20°C ... 125°C
Altitude: 2000 m
Technical Specs
ECLASSECLASS-11.0: 27440102
ECLASS-12.0: 27440116
ECLASS-13.0: 27440116
ETIMETIM 8.0: EC002635
UNSPSCUNSPSC 21.0: 39121400
