PHOENIX CONTACT 1592680
PHOENIX CONTACTNot available

RC-000000080FZ - Sleeve housing for cable connector

Sleeve housing for cable connector, straight, Screw locking mechanism, M23, shielded: no, cable diameter range: 2 mm ... 10.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240259
Product Code: 1592680
Partner cod.: 1592680
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
NotesGeneral: Order contact inserts separately
Product propertiesProduct type: Sleeve housings
Connection profile: 12
Application: Signal
Shielded: no
Thread type: M23
Material specificationsSeal material: FPM or NBR or EPDM
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Metal
Gasket and O-ring material: FPM
ConnectorType: straight
Cable/lineExternal cable diameter: 2 mm ... 10.5 mm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP65
IP67
IP68
Altitude: 2000 m
Technical Specs
ECLASSECLASS-11.0: 27440224
ECLASS-12.0: 27440224
ECLASS-13.0: 27440224
ETIMETIM 9.0: EC003556
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_09623.pdf

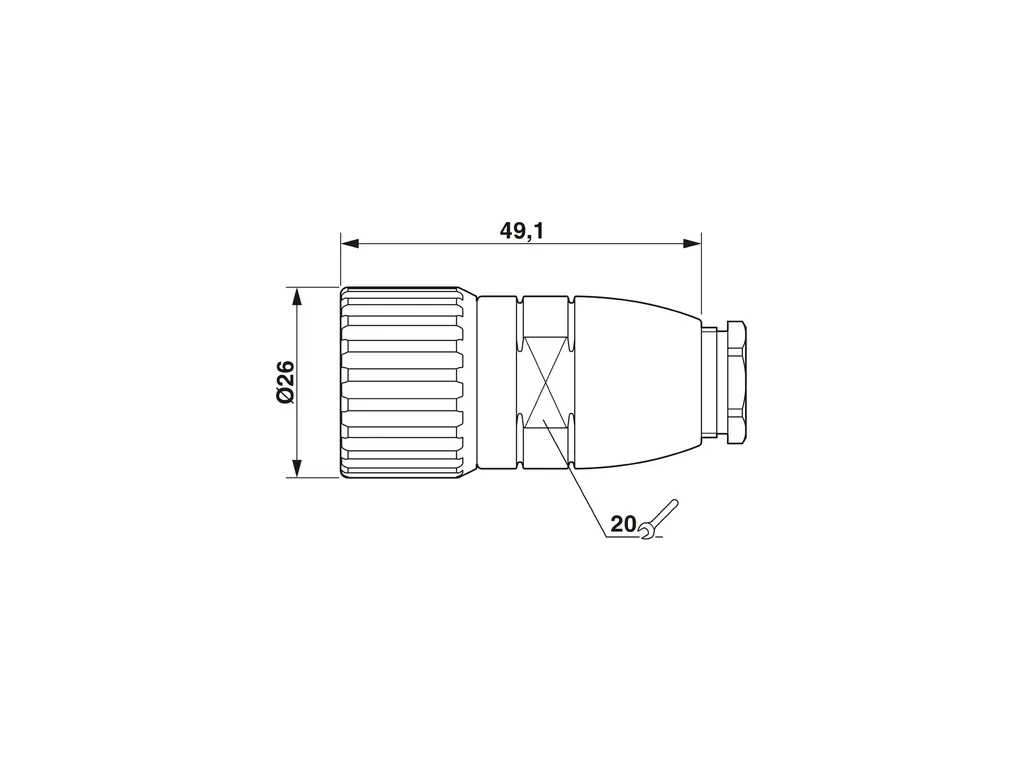

Technical_drawing_16515.pdf
