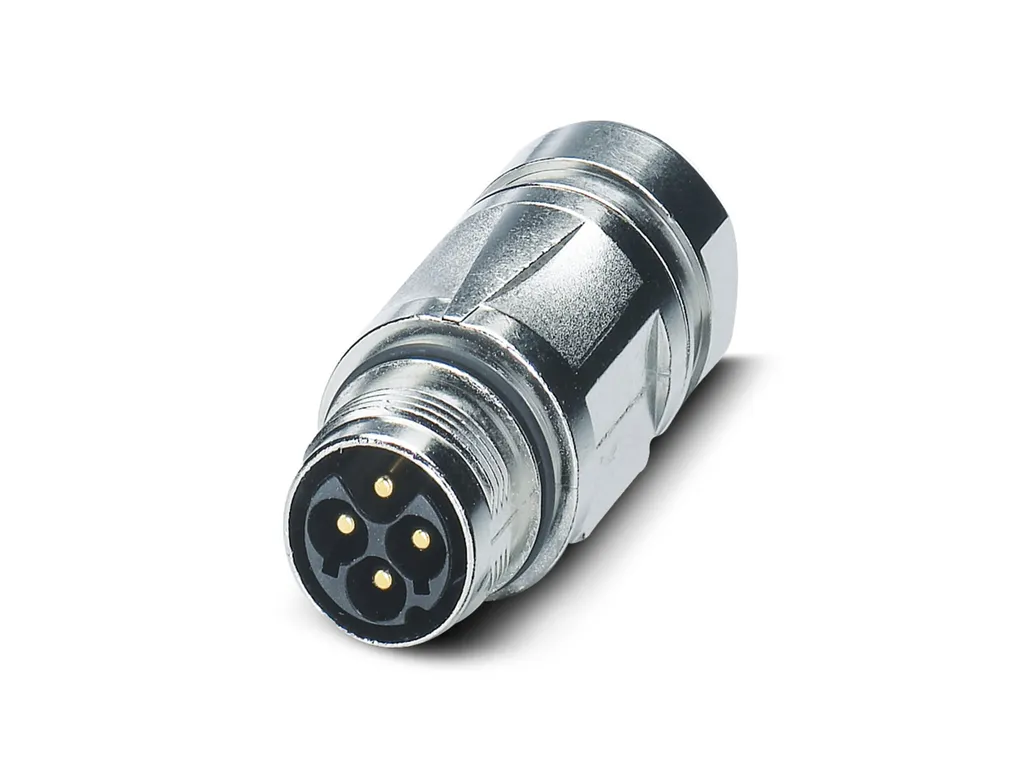

Product properties | Product type: Sleeve housings Connection profile: 12 Application: Signal Series: RC Shielded: yes Thread type: M23 |
Material specifications | Seal material: FPM or NBR or EPDM Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Metal Gasket and O-ring material: FPM |
Connector | Type: straight |
Cable/line | External cable diameter: 2 mm ... 10.5 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -20°C ... 125°C Altitude: 2000 m |
Mounting | Mounting: 4x Ã2,7 Panel thickness: 3 mm ... 7 mm Connection method: Crimp connection |
ECLASS | ECLASS-11.0: 27440224 ECLASS-12.0: 27440224 ECLASS-13.0: 27440224 |
ETIM | ETIM 8.0: EC002641 |
UNSPSC | UNSPSC 21.0: 39121400 |
