PHOENIX CONTACT 1592865
PHOENIX CONTACTNot available

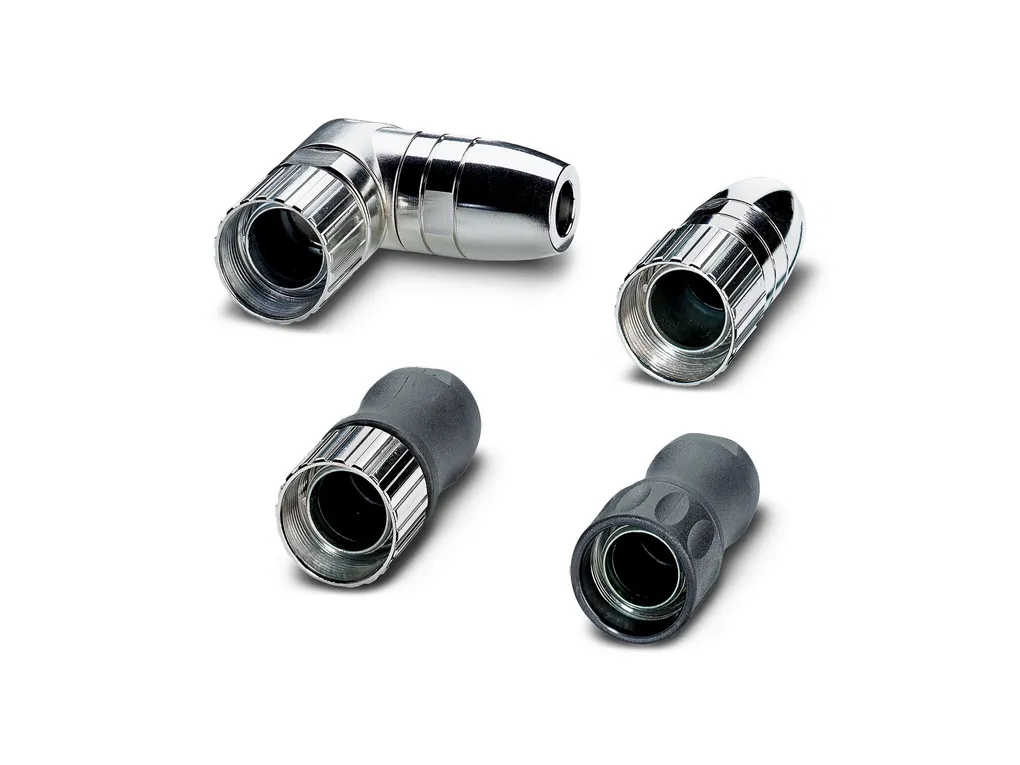

RC-0000000K0FZ - Sleeve housing for cable connector

Sleeve housing for cable connector, series: RC, straight plastic-sheathed, Screw locking mechanism, M23, shielded: yes, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240291
Product Code: 1592865
Partner cod.: 1592865
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
Product propertiesProduct type: Sleeve housings
Application: Signal
Series: RC
Shielded: yes
Thread type: M23
Material specificationsSeal material: FPM or NBR or EPDM
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn), plastic parts: SPS
Metal
Gasket and O-ring material: FPM
ConnectorType: straight plastic-sheathed
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
Ambient temperature (operation): -20°C ... 125°C
Altitude: 2000 m
Technical Specs
ECLASSECLASS-11.0: 27440224
ECLASS-12.0: 27440224
ECLASS-13.0: 27440224
ETIMETIM 8.0: EC000437
UNSPSCUNSPSC 21.0: 31261500
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_09649.pdf

Technical_drawing_16535.pdf
