PHOENIX CONTACT 1594271
PHOENIX CONTACT 1594271
PHOENIX CONTACTNot available

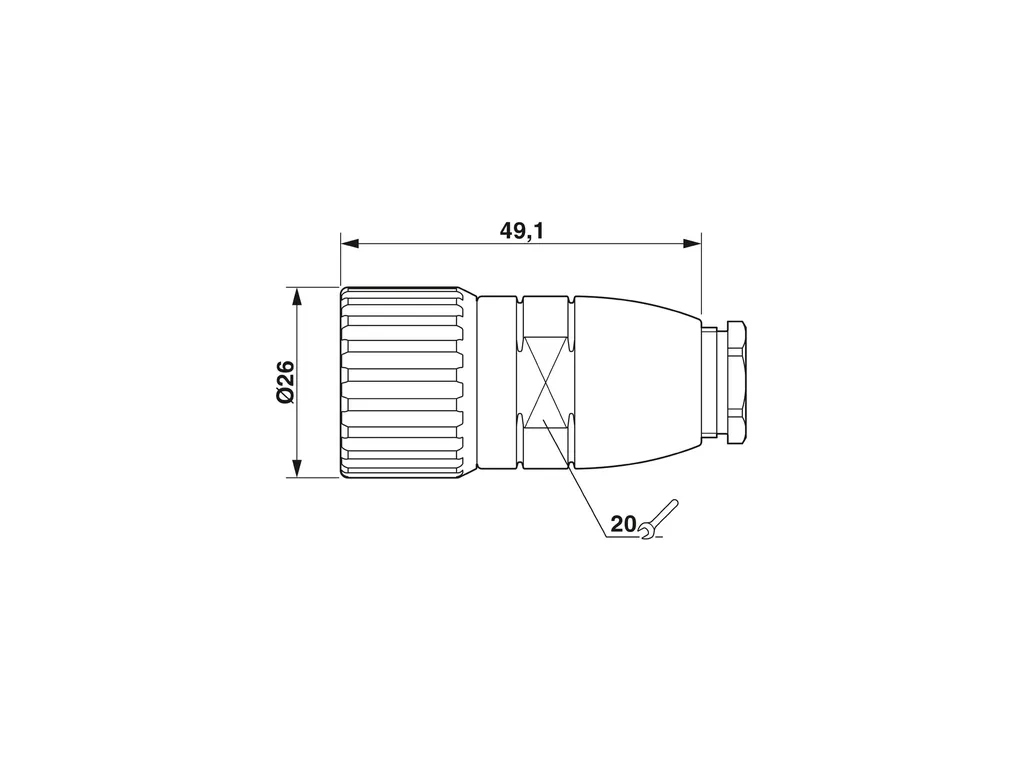

RC-07P1N121600 - Cable connector

M23, Cable connector, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 7, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 8 mm ... 12 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240474
Product Code: 1594271
Partner cod.: 1594271
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: Order cable glands separately
MountingConnection method: Solder connection
Product propertiesProduct type: Circular connector (cable-side)
Thread type: M23
Material specificationsFlammability rating according to UL 94: V0
Connection dataConductor connection
Connection method: Solder connection
ConnectorInsulating body
Coding: N
Insertion/withdrawal cycles: 50
Connection method: Solder cup
Contact switching type: Pin
Application: Signal
Number of positions: 7
Direction of rotation: Standard
Connection profile: 7
Contact diameter Power contacts: 2 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 2.5 mm²
Rated current Power contacts: 20 A
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: Pg11
Degree of protection (plugged in): IP65
IP67
Thread type: M23
Seal
External cable diameter: 8 mm ... 12 mm
Environmental and real-life conditionsAmbient conditions
Degree of protection: IP67
