1595481 PHOENIX CONTACT - Technology Bsa

RC-09P1N8AR1Q8 - Cable connector

M23, Cable connector, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 6.5 mm ... 7.5 mm, coding: N

Product Code: 1595481 Copia - Copy

Partner cod.: 1595481 Copia - Copy

PHOENIX CONTACT

Notes	General: Order crimp contacts 8 x ÃÃ 1 mm, 1 x ÃÃ 2 mm separately
Mounting	Connection method: Solder connection
Product properties	Product type: Circular connector (cable-side) Thread type: M23
Material specifications	Flammability rating according to UL 94: V0
Connection data	Conductor connection Connection method: Solder connection

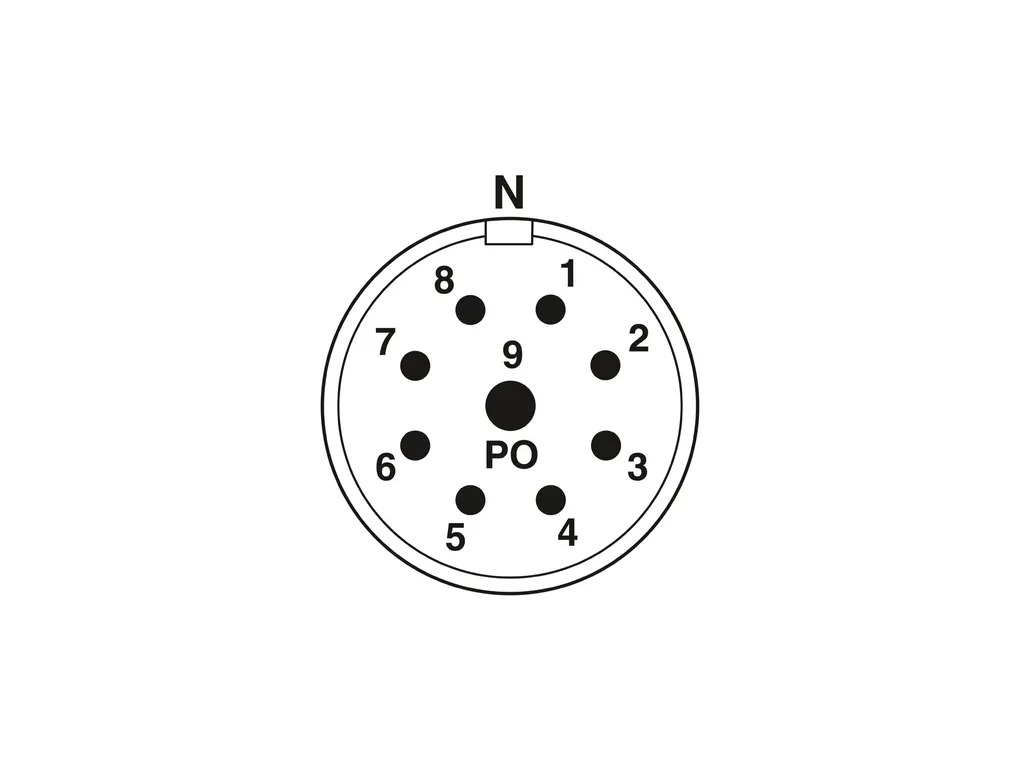

Connector	Insulating body Note: Order information: Order crimp contacts 8 x ÃÃ 1 mm, 1 x ÃÃ 2 mm separately Coding: N Connection method: Crimp connection Contact switching type: Pin Application: Signal Number of positions: 9 Direction of rotation: Standard Connection profile: 8+1 Contact diameter Power contacts: 2 mm Rated current Power contacts: 20 A Rated voltage: 48 VÃAC 74 VÃDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Contact diameter Signal contacts: 1 mm Nominal current per signal contact: 8 A Housing Order information:: Order contact inserts and cable clamping/shield accessories separately Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 6.5 mm ... 7.5 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67
