PHOENIX CONTACT 1596303

Not available

RC-09S1N8A0000 - Contact insert

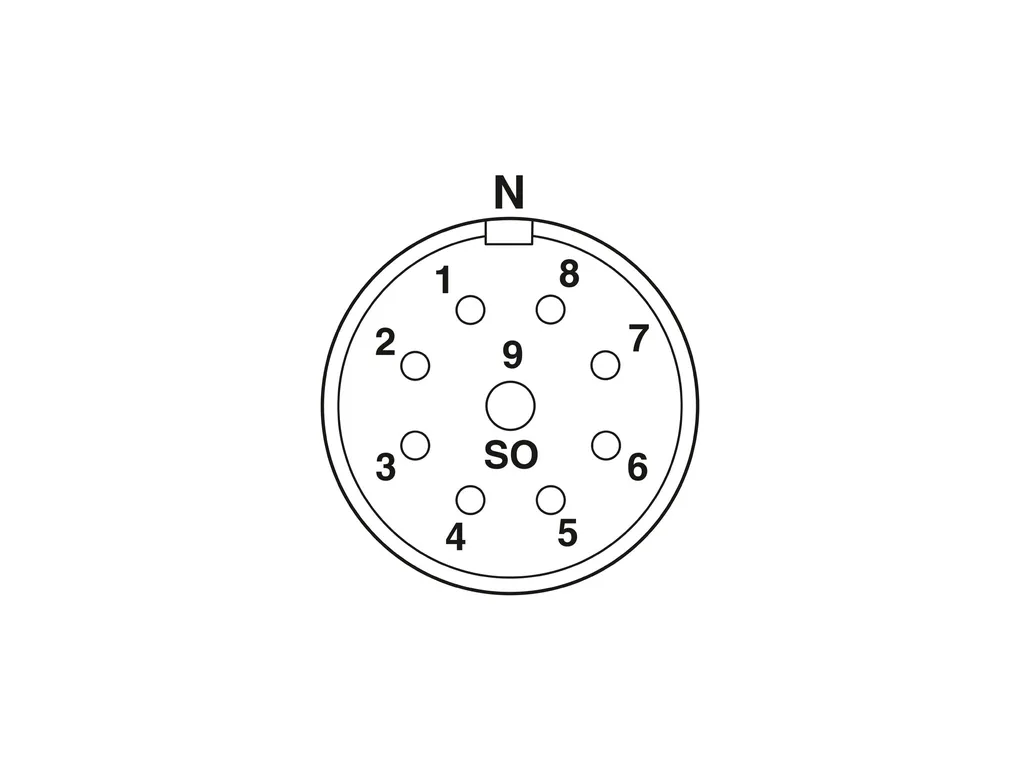

Contact insert, M23, number of positions: 8+1, contact connection type: Socket, Crimp connection

Product Code: 1596303

Partner cod.: 1596303

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Notes	General: Order crimp contacts 8 x Ã 1 mm, 1 x Ã 2 mm separately
Product properties	Product type: Contact insert Number of positions: 9 Connection profile: 8+1 Application: Signal Series: NC RC RM TU UC Coding: N Thread type: M23
Electrical properties	Contact Contact diameter: 2 mm Max. current: 20 A Nominal voltage U_N: 48 VAC 74 VDC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 1.5 kV ContactÃ¢ Contact diameter: 1 mm Max. current: 8 A
Material specifications	Insulator material: PA66
Connector	Direction of rotation: Standard
Mounting	Connection method: Crimp connection

Technical Specs

ECLASS	ECLASS-11.0: 27440223 ECLASS-12.0: 27440223 ECLASS-13.0: 27440223
ETIM	ETIM 8.0: EC003557
UNSPSC	UNSPSC 21.0: 39121400

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf
