PHOENIX CONTACT 1596314
PHOENIX CONTACT 1596314
PHOENIX CONTACTNot available

RC-09S1N8A2300 - Device connector front mounting

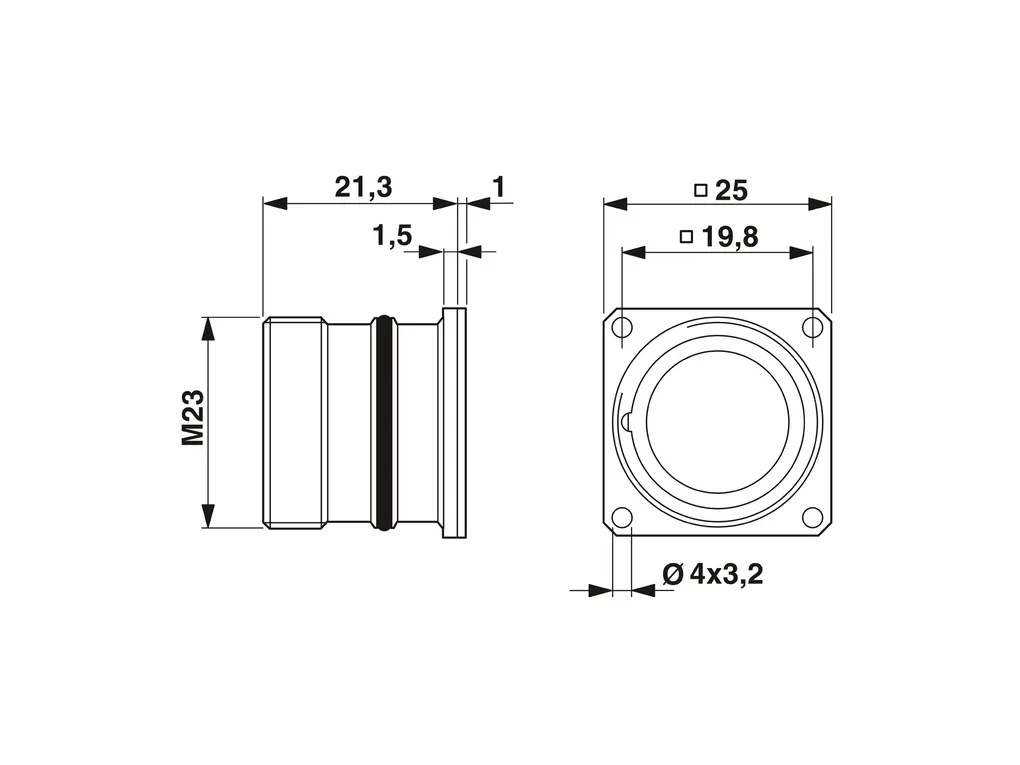

M23, Device connector front mounting, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 8+1, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Flat gasket, 4x Ø 3.2, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240696
Product Code: 1596314
Partner cod.: 1596314
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm separately
Product propertiesProduct type: Circular connectors (device side)
ConnectorInsulating body
Note: Order information: Order crimp contacts 8 x Ø 1 mm, 1 x Ø 2 mm separately
Coding: N
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 9
Direction of rotation: Standard
Connection profile: 8+1
Contact diameter Power contacts: 2 mm
Rated current Power contacts: 20 A
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Nominal current per signal contact: 8 A
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
