PHOENIX CONTACT 1597385

PHOENIX CONTACT 1597385

Not available

RC-12P1N12Y000 - Device connector, front mounting with knurled nut

M23, Device connector, front mounting with knurled nut, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder cup, Flat gasket, 4x ÃË2,7, coding: N

Product Code: 1597385 Copia - Copy

Copia - Copy

Partner cod.: 1597385 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties

Product type: Circular connectors (device side)

Connector

Insulating body
Coding: N
Insertion/withdrawal cycles: 100
Connection method: Solder cup
Contact switching type: Pin
Application: Signal
Number of positions: 12
Direction of rotation: Standard

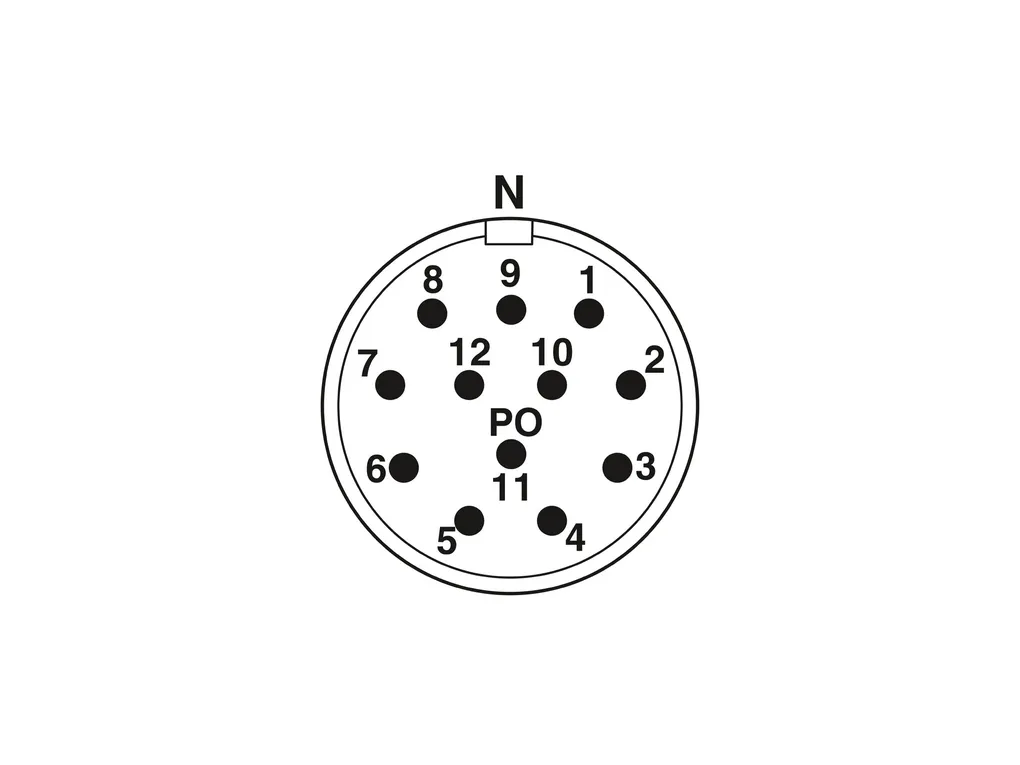

Connection profile: 12
Contact diameter Power contacts: 1 mm
Litz wire cross-section Power contacts min.: 0.08 mm²
Litz wire cross-section Power contacts max.: 1 mm²
Rated current Power contacts: 8 A
Rated voltage: 48 VÃAC
74 VÃDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Degree of protection (plugged in): IP67
Thread type: M23

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10001.pdf
