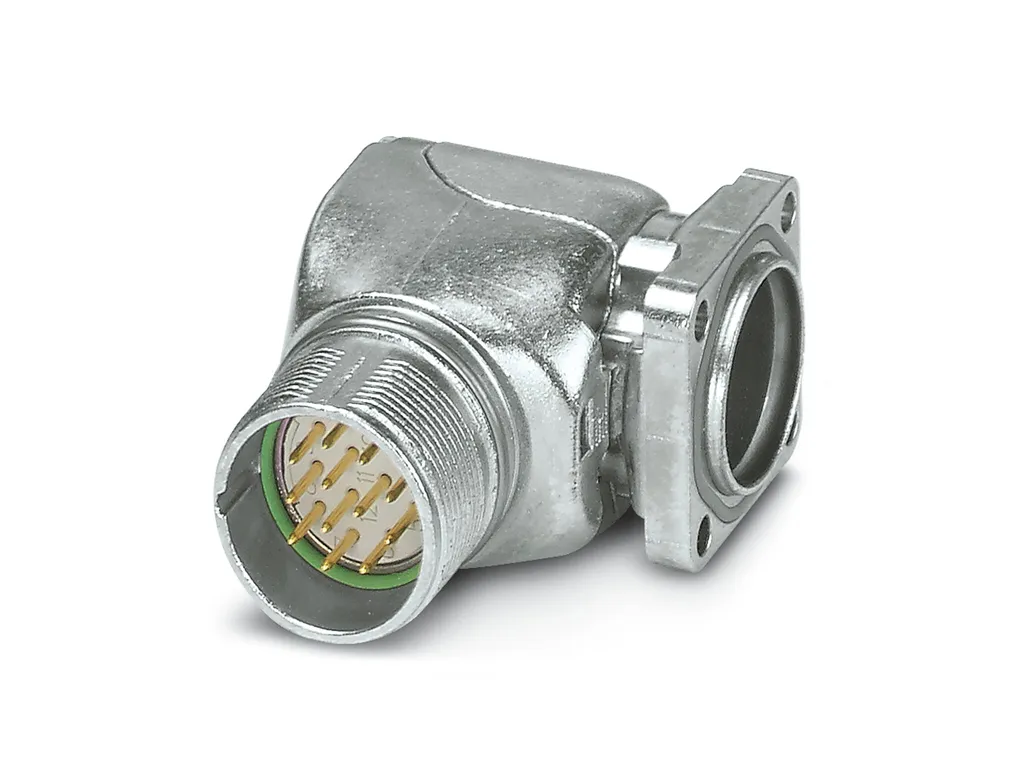

RC-12P1N8A6100 - Device connector front mounting
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Order crimp contacts à 1 mm separately |
Product properties | Product type: Circular connectors (device side) |
Connector | Insulating body Note: Order information: Order crimp contacts à 1 mm separately Coding: N Connection method: Crimp connection Contact switching type: Pin Application: Signal Number of positions: 12 Direction of rotation: Standard Connection profile: 12 Contact diameter Power contacts: 1 mm Rated current Power contacts: 8 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Order information:: Order contact inserts separately Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 |
ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
ETIM | ETIM 8.0: EC002635 |
UNSPSC | UNSPSC 21.0: 39121400 |
