PHOENIX CONTACT 1597740

PHOENIX CONTACT 1597740

Not available

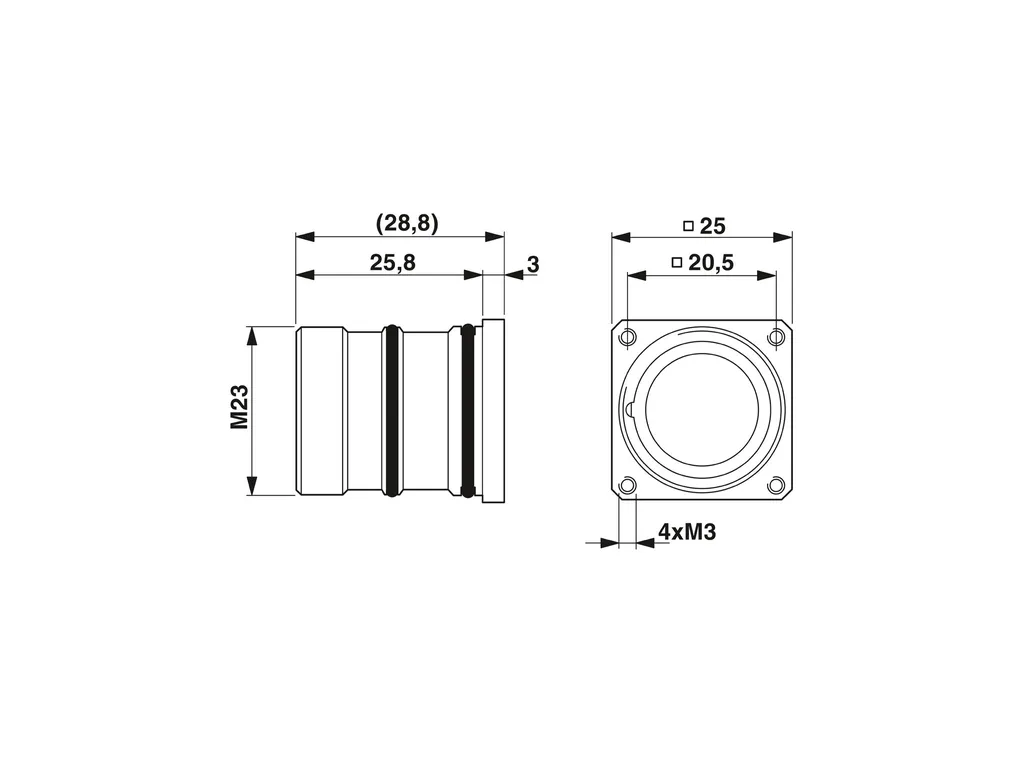

RC-12P1NX2E0S7 - Device connector, rear mounting

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, Radial O-ring, 4xM3, Panel thickness min.: 3 mm, Panel thickness max.: 10.5 mm

Product Code: 1597740 Copia - Copy

Copia - Copy

Partner cod.: 1597740 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Mounting	Connection method: Solder connection
Product properties	Product type: Circular connectors (device side) Thread type: M23
Material specifications	Flammability rating according to UL 94: V0 Housing material: Metal
Connection data	Conductor connection Connection method: Solder connection
Connector	Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10036.pdf
