PHOENIX CONTACT 1600090
PHOENIX CONTACT 1600090
PHOENIX CONTACTNot available

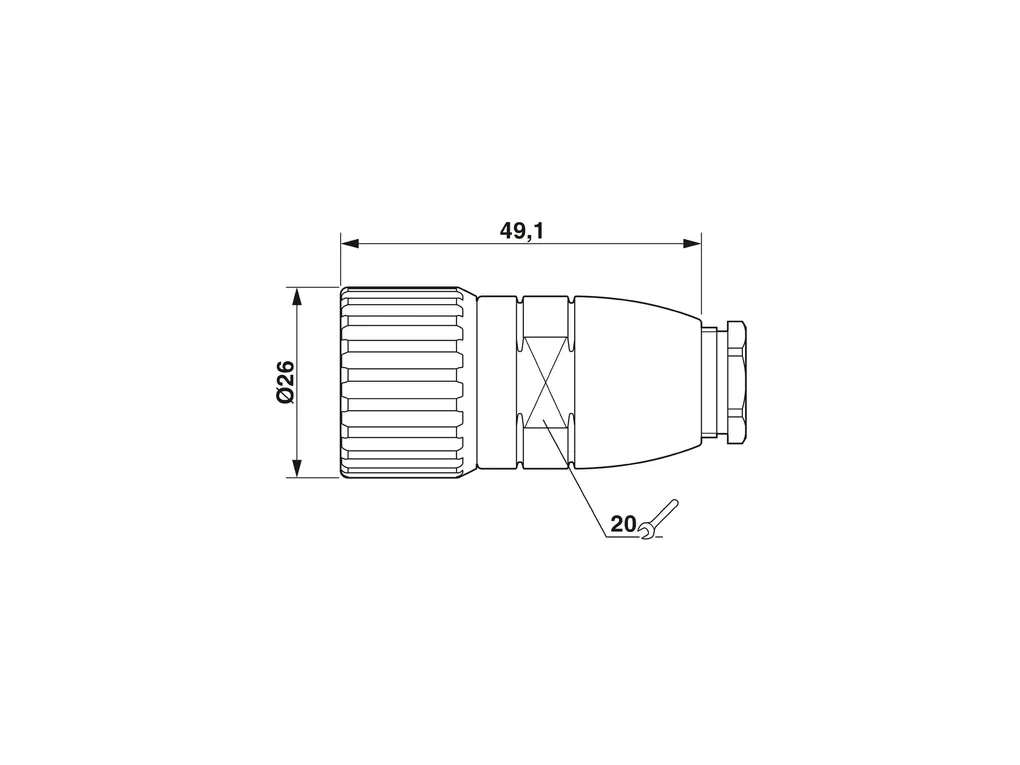

RC-12S2N8A1K00 - Cable connector

M23, Cable connector, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Counter direction, contact connection type: Socket, Crimp connection, cable diameter range: 7 mm ... 10.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241164
Product Code: 1600090
Partner cod.: 1600090
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: Order crimp contacts Ø 1 mm separately
Product propertiesProduct type: Circular connector (cable-side)
ConnectorInsulating body
Note: Order information: Order crimp contacts Ø 1 mm separately
Coding: N
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 12
Direction of rotation: Counter direction
Connection profile: 12
Contact diameter Power contacts: 1 mm
Rated current Power contacts: 8 A
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Pg screw connection: Pg11
Degree of protection (plugged in): IP65
IP67
IP68
Thread type: M23
Seal
External cable diameter: 7 mm ... 10.5 mm
