1601528 PHOENIX CONTACT - Technology Bsa

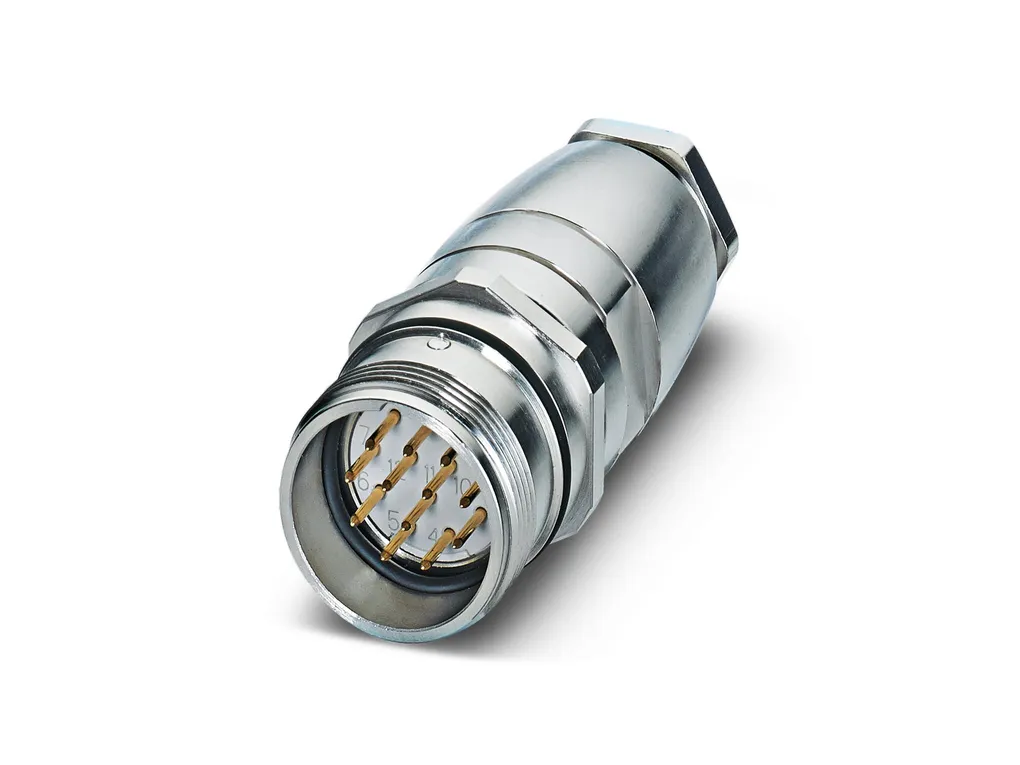

RC-17P1N8A83NN - Cable connector

M23, Cable connector, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, coding: N

Product Code: 1601528 Copia - Copy

Partner cod.: 1601528 Copia - Copy

PHOENIX CONTACT

Notes	Order information:: Order crimp contacts ÃÃ 1 mm separately
Product properties	Product type: Circular connector (cable-side) Thread type: M23
Material specifications	Flammability rating according to UL 94: V0
Connection data	Conductor connection Connection method: Solder connection
Connector	Insulating body Note: Order information: Order crimp contacts ÃÃ 1 mm separately Coding: N Connection method: Crimp connection Contact switching type: Pin Application: Signal Number of positions: 17 Direction of rotation: Standard Connection profile: 17 Contact diameter Power contacts: 1 mm Rated current Power contacts: 8 A Rated voltage: 48 V AC 74 V DC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Order information:: Order contact inserts separately Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (storage/transport): 15 °C ... 25 °C Permissible humidity (storage/transport): 50 % ... 65 %
