PHOENIX CONTACT 1602295
PHOENIX CONTACT 1602295
PHOENIX CONTACTNot available

RC-17S1NC20000 - Contact insert

Contact insert, M23, number of positions: 17, contact connection type: Socket, Solder-in connection, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241456
Product Code: 1602295
Partner cod.: 1602295
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
Product propertiesProduct type: Contact insert

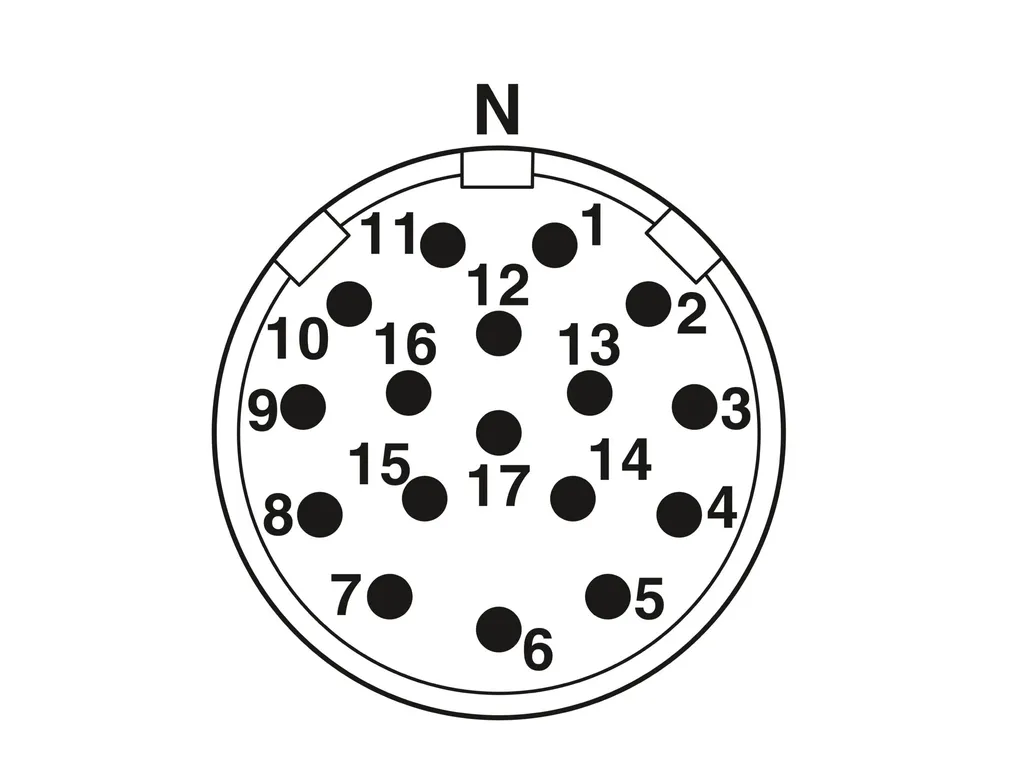

Number of positions: 17
Connection profile: 17
Application: Signal
Series: RC
TU
Coding: N
Thread type: M23
Electrical propertiesContact
Contact diameter: 1 mm
Max. current: 8 A
Nominal voltage UN: 48 VÂAC 74 VÂDC
Overvoltage category: III
Degree of pollution: 3
Rated surge voltage: 1.5 kV
Material specificationsMaterial: PA 6.6
Insulator material: PBT
Contact material: CuZn
Contact surface material: Ni/Au
Contact surface: Nickel-plated, gold coating
ConnectorDirection of rotation: Standard
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: 50
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
MountingConnection method: Solder-in connection
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10405.pdf

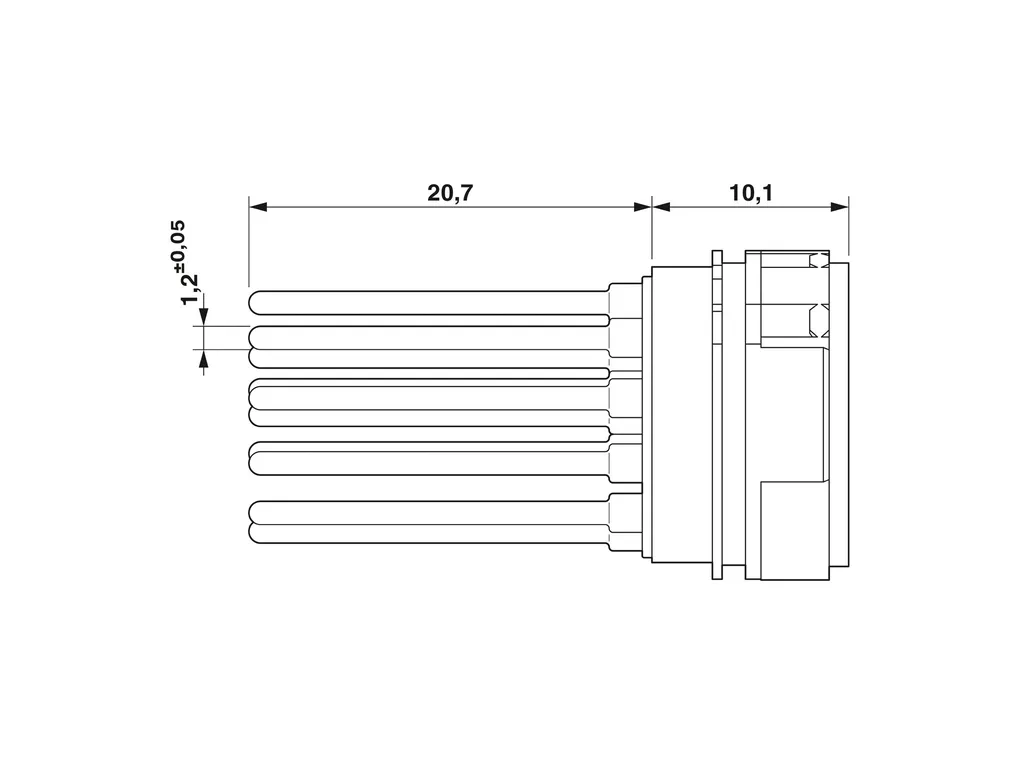

Technical_drawing_16608.pdf
