1602501 PHOENIX CONTACT - Technology Bsa

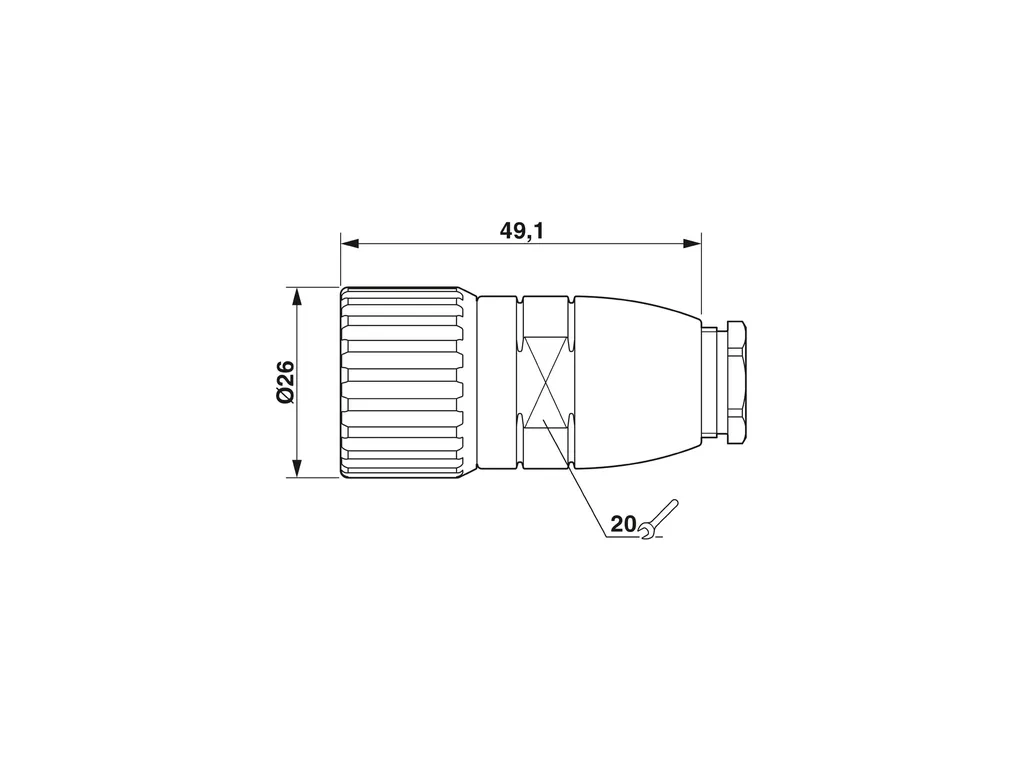

RC-19P1N121L00 - Cable connector

M23, Cable connector, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 16+3, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 9 mm ... 13 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241473

Product Code: 1602501 Copia - Copy

Partner cod.: 1602501 Copia - Copy

PHOENIX CONTACT

Mounting	Connection method: Solder connection
Product properties	Product type: Circular connector (cable-side) Type of the screw connection: IP68 screw Thread type: M23
Material specifications	Flammability rating according to UL 94: V0
Connection data	Conductor connection Connection method: Solder connection
Mechanical properties	Mechanical data Type of the screw connection: IP68 screw
Connector	Insulating body Coding: N Insertion/withdrawal cycles: 100 Connection method: Solder cup Contact switching type: Pin Application: Signal Number of positions: 19 Direction of rotation: Standard Connection profile: 16+3 Contact diameter Power contacts: 1.5 mm Litz wire cross-section Power contacts min.: 0.08 mm² Litz wire cross-section Power contacts max.: 1 mm² Rated current Power contacts: 10 A Rated voltage: 48 VÃAC 74 VÃDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Contact diameter Signal contacts: 1 mm Litz wire cross-section Signal contacts min.: 0.08 mm² Litz wire cross-section Signal contacts max.: 1 mm² Nominal current per signal contact: 8 A Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP65 IP67 Thread type: M23 Seal External cable diameter: 9 mm ... 13 mm
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67
