PHOENIX CONTACT 1602738

Not available

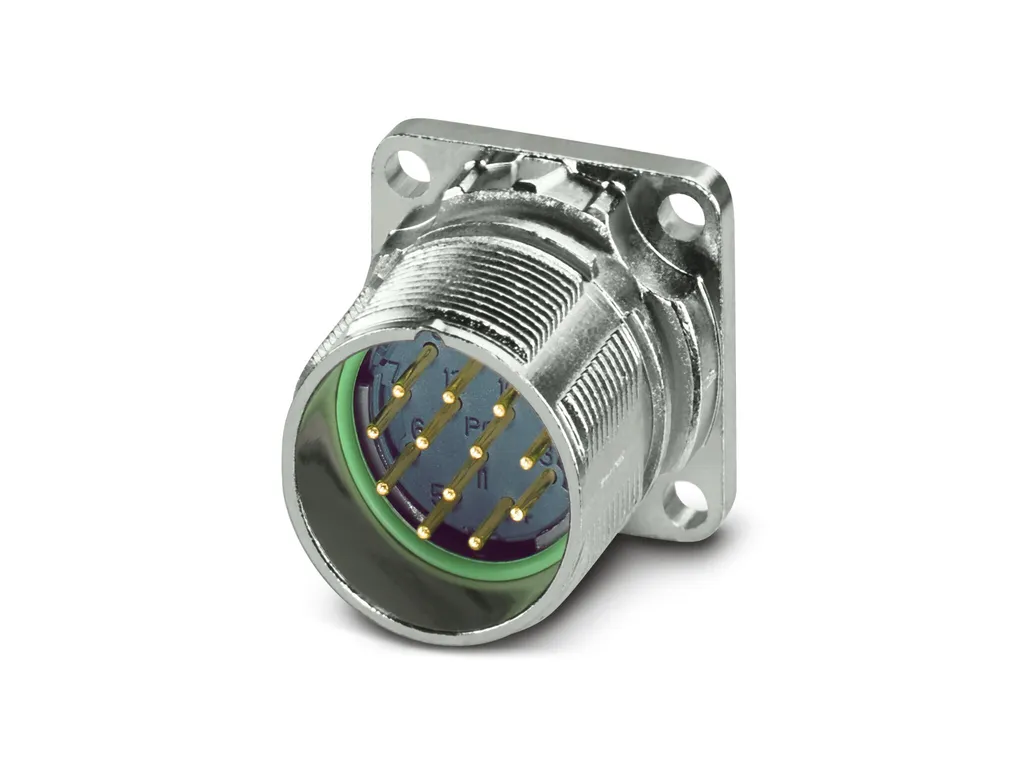

RC-19P1NX24ZJW - Device connector, rear mounting

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, Radial O-ring, 4x M2.5, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm

Product Code: 1602738

Partner cod.: 1602738

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Product properties	Product type: Circular connectors (device side)
Connector	Housing Order information:: Order contact inserts separately Housing material: GD-Zn Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23

Technical Specs

ECLASS	ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116
ETIM	ETIM 8.0: EC002635
UNSPSC	UNSPSC 21.0: 39121400

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10443.pdf

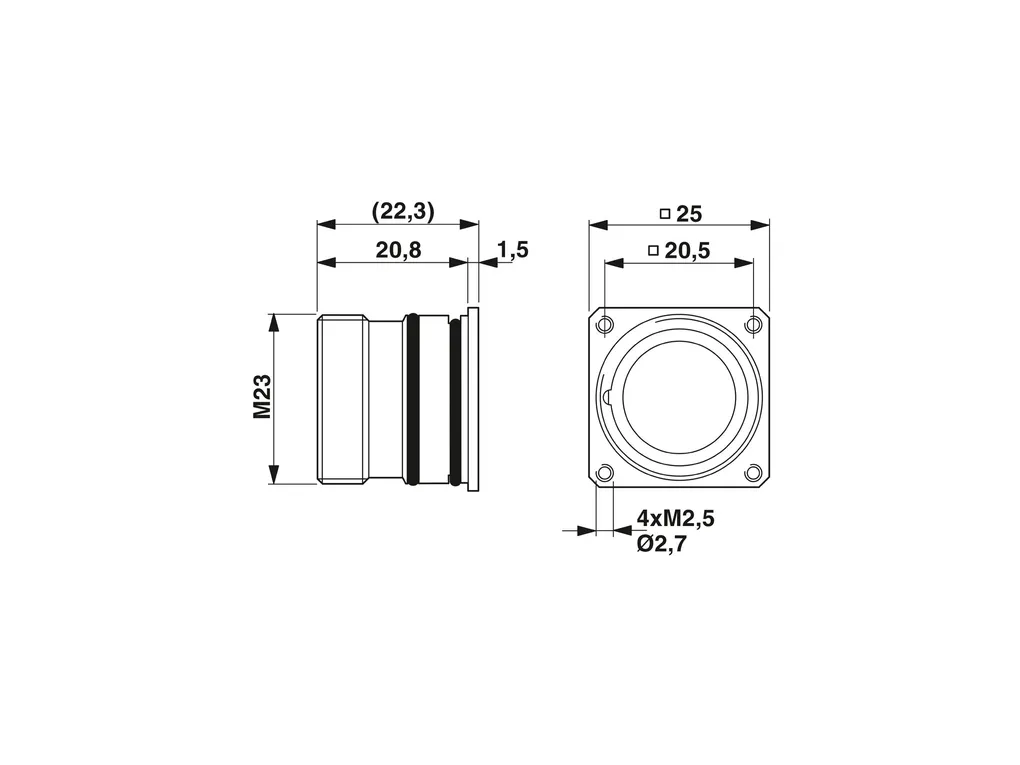

Technical_drawing_16617.pdf
