PHOENIX CONTACT 1603002

PHOENIX CONTACT 1603002

Not available

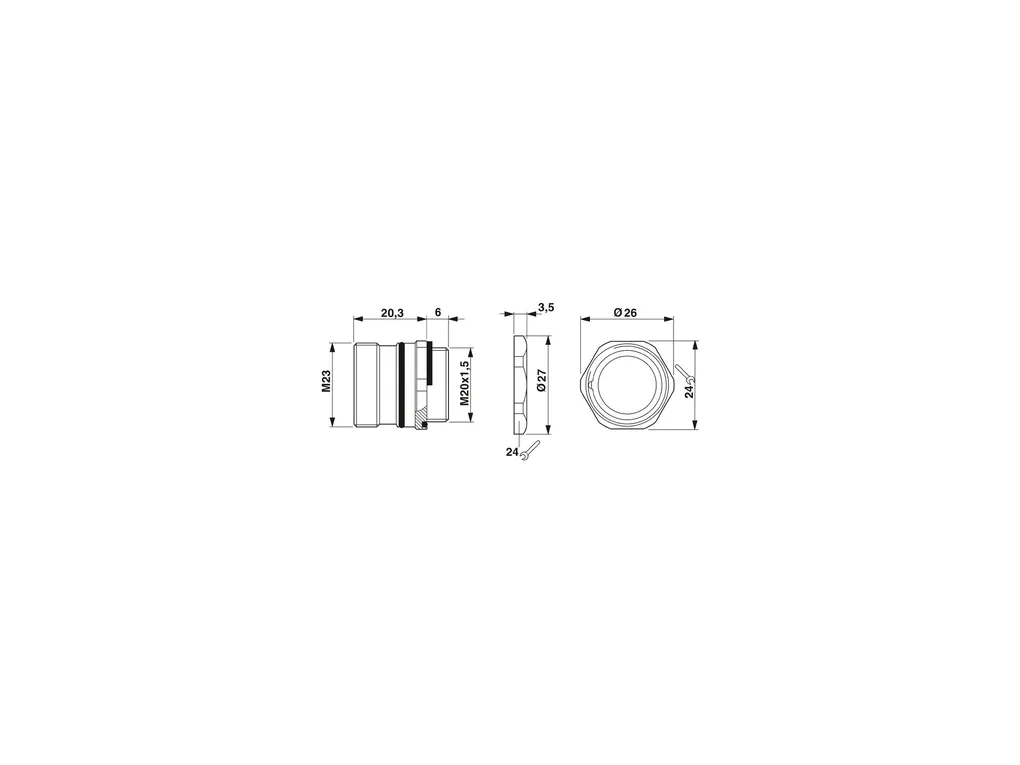

RC-1LP1NT2616E - Device connector front mounting

M23, Device connector front mounting, series: RC, straight, shielded: yes, Screw locking mechanism, Axial O-ring, Central fixing, Panel thickness min.: 0.8 mm, Panel thickness max.: 6.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241574

Product Code: 1603002 Copia - Copy

Copia - Copy

Partner cod.: 1603002 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Circular connectors (device side)
Connector	Housing Order information:: Order contact inserts separately Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_10475.pdf

Technical_drawing_16621.pdf

Other products

Description other products

PHOENIX CONTACT 1593076

RC-06P1N121000 - Cable connector
Cod. Articolo: 1593076

M23, Cable connector, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Pin, Solder cup, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240321

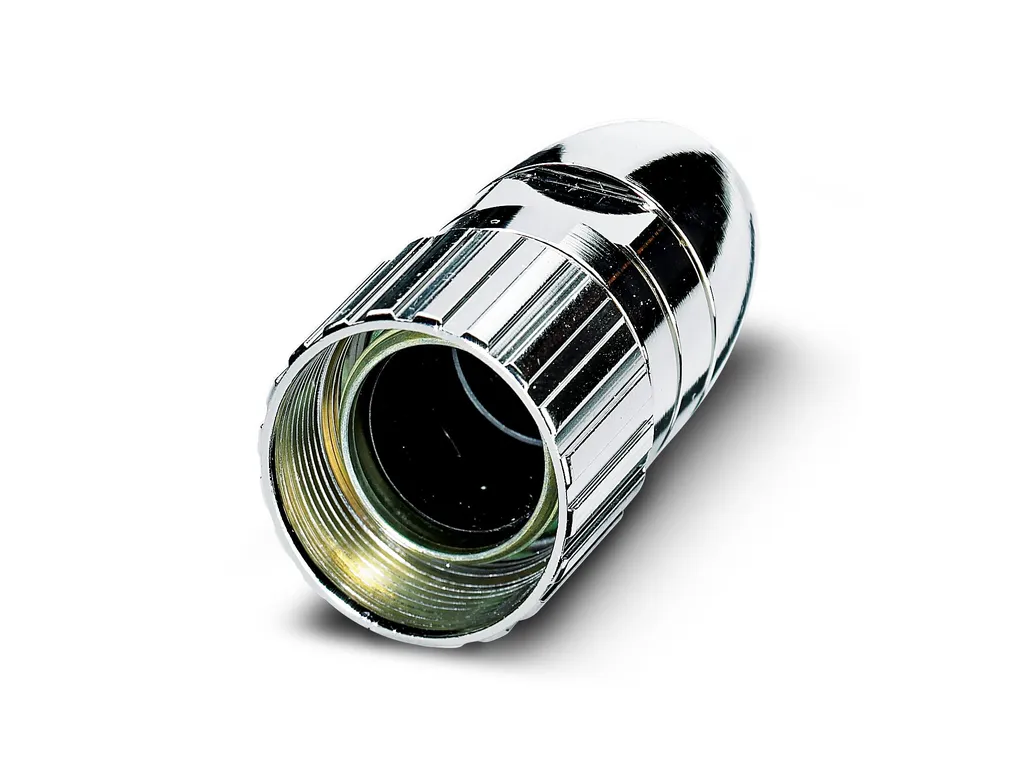

PHOENIX CONTACT 1592539

RC-00000001200 - Sleeve housing for cable connector
Cod. Articolo: 1592539

Sleeve housing for cable connector, series: RC, straight, Screw locking mechanism, M23, shielded: no, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240216

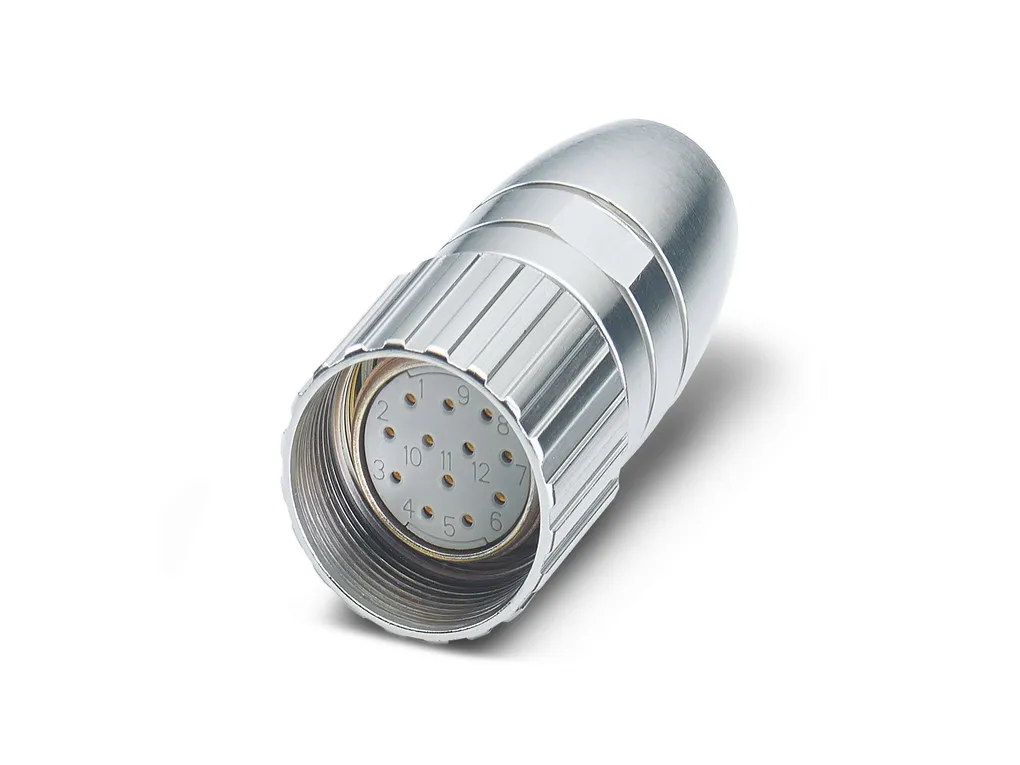

PHOENIX CONTACT 1599742
