Mounting | Connection method: Solder connection |

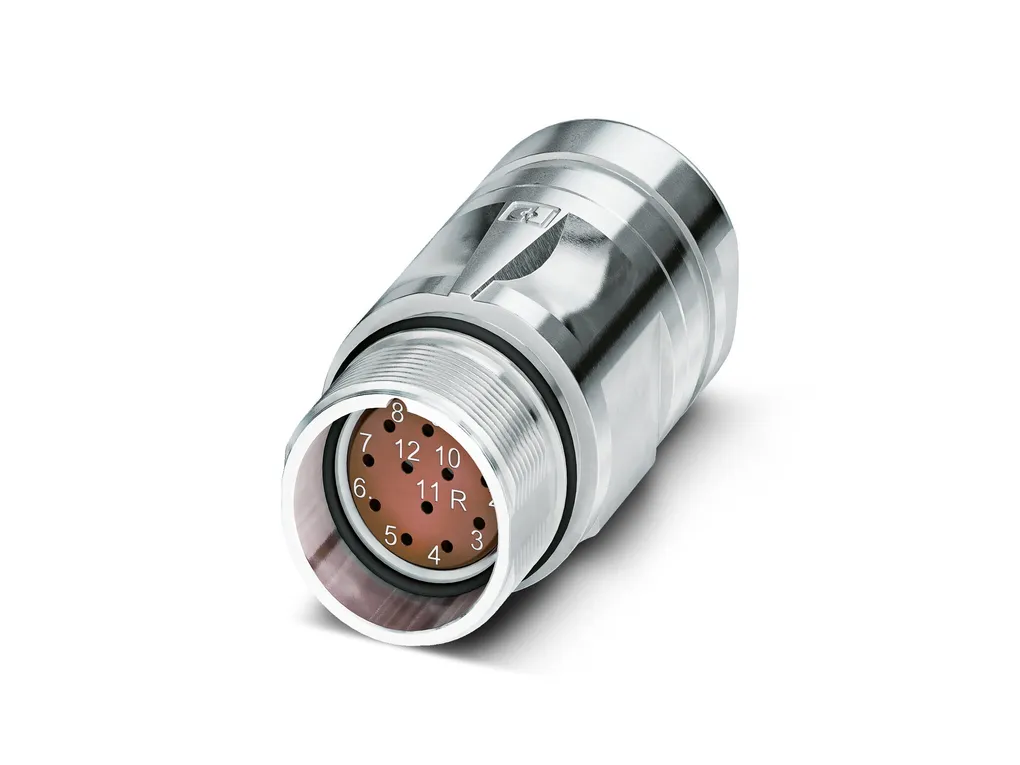

Product properties | Product type: Circular connector (cable-side) Type of the screw connection: IP68 screw Thread type: M23 |
Material specifications | Flammability rating according to UL 94: V0 |
Connection data | Conductor connection Connection method: Solder connection |
Mechanical properties | Mechanical data Type of the screw connection: IP68 screw |
Connector | Insulating body Connection method: Solder cup Contact switching type: Socket Application: Signal Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP65 IP67 Thread type: M23 Seal External cable diameter: 9 mm ... 13 mm |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 |
ECLASS | ECLASS-11.0: 27440109 ECLASS-12.0: 27440109 ECLASS-13.0: 27440109 |
ETIM | ETIM 8.0: EC003569 |
UNSPSC | UNSPSC 21.0: 39121400 |
