PHOENIX CONTACT 1603332

PHOENIX CONTACT 1603332

Not available

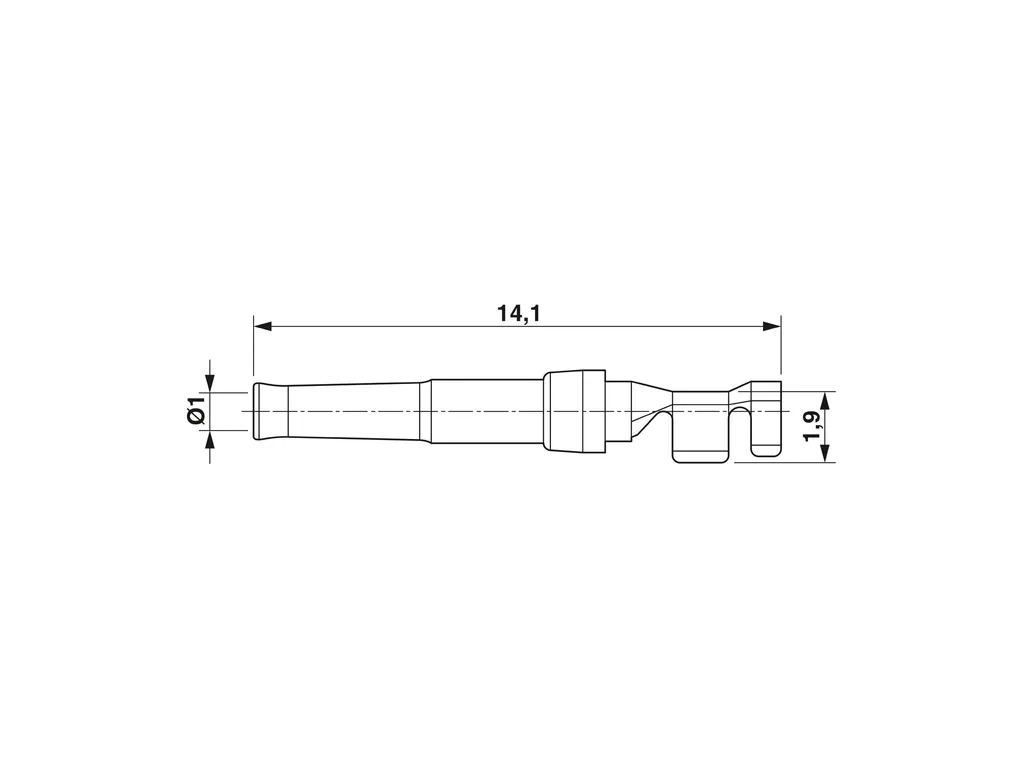

RC-22S2400 - Crimp contact

Crimp contact, Socket, rolled, Taped product, number of pieces per reel: 10000, contact diameter: 1 mm, crimp range: 0.22 mm² ... 0.56 mm², Item is lead-free in accordance with RoHS II without Exemption6c (Pb<0.1%)

Product Code: 1603332 Copia - Copy

Copia - Copy

Partner cod.: 1603332 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Mounting	Connection method: Crimp connection
Product properties	Product type: Crimp contact Contact material type: rolled
Connection data	Connection method: Crimp connection Contact connection type: Socket Conductor cross section: 0.22 mm² ... 0.56 mm²
Material specifications	Contact surface: Gold Contact material: Cu alloy
Dimensions	Mechanical characteristics Contact diameter: 1 mm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 100
Packaging specifications	Type of packaging: Taped products

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Technical_drawing_16631.pdf

Other products

Description other products

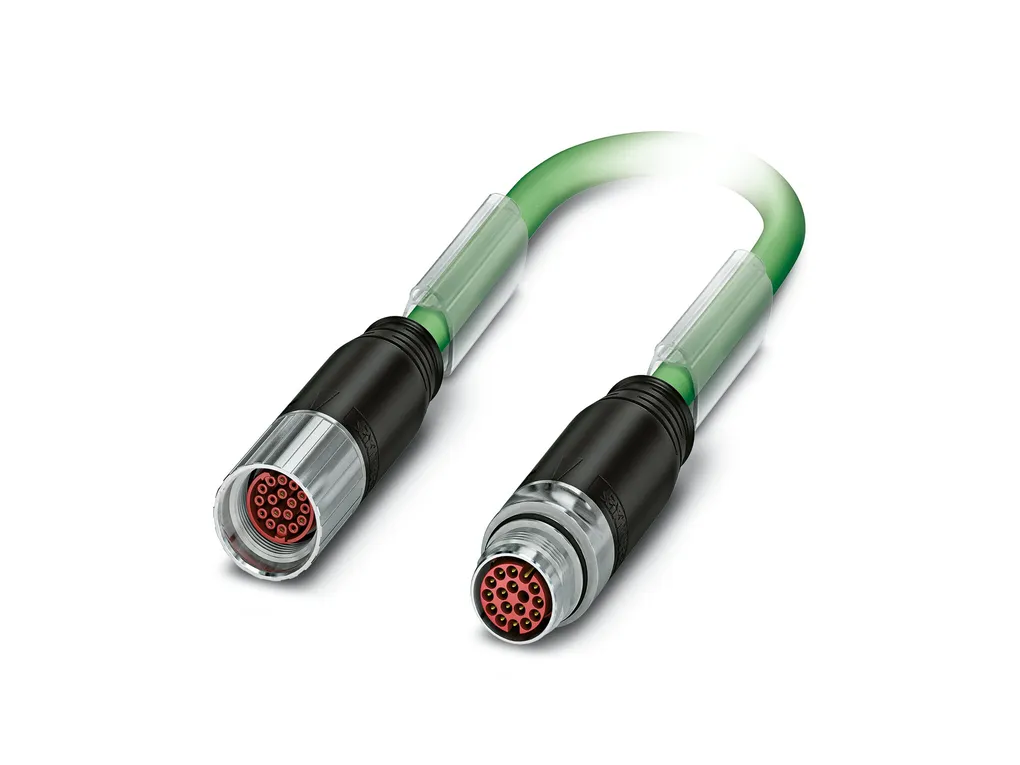

PHOENIX CONTACT 1624783

K-17-M17 M9/5,0-E01/M17 F8 - Connector in molded plastic on both sides
Cod. Articolo: 1624783

Connector in molded plastic on both sides, M17-Socket, Straight, plastic molded, number of positions: 17, type of locking: Screw locking mechanism, on M17-Pin, Straight, plastic molded, number of positions: 17, cable length: 5 m, shielded: yes, color of outer sheath: green, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1261271

PHOENIX CONTACT 1619384

CA-12S1N8AT007S - Cable connector
Cod. Articolo: 1619384

M23, Cable connector, series: CA, angled, shielded: yes, SPEEDCON, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, cable diameter range: 6 mm ... 10 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243502

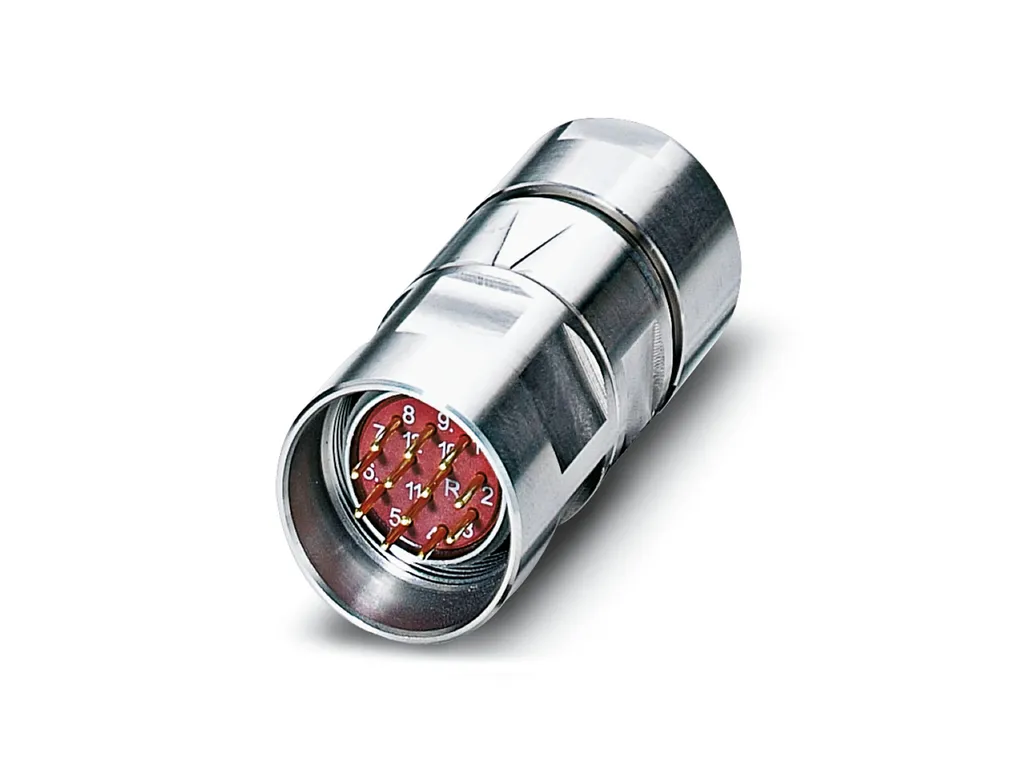

PHOENIX CONTACT 1614067
