PHOENIX CONTACT 1604375

Not available

RC-Z2229 - Cable clamp type cage and shield adapter

Cable clamp type cage and shield adapter, shielded: yes, litz wire bundle diameter: 4.6 mm, cable diameter range: 7.5 mm ... 9.5 mm, series: NC

Product Code: 1604375 Copia - Copy

Copia - Copy

Partner cod.: 1604375 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Cable clamp type cage Type of the screw connection: EMC Series: NC RC Shielded: yes
Cable/line	External cable diameter: 7.5 mm ... 9.5 mm
Mechanical properties	Mechanical data Type of the screw connection: EMC

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_10575.pdf

Technical_drawing_16685.pdf

Other products

Description other products

PHOENIX CONTACT 1607918

SL-1CKS030 - Crimp contact
Cod. Articolo: 1607918

Crimp contact, Socket, turned, contact diameter: 10 mm, crimp range: 25 mm² ... 25 mm², Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1362834

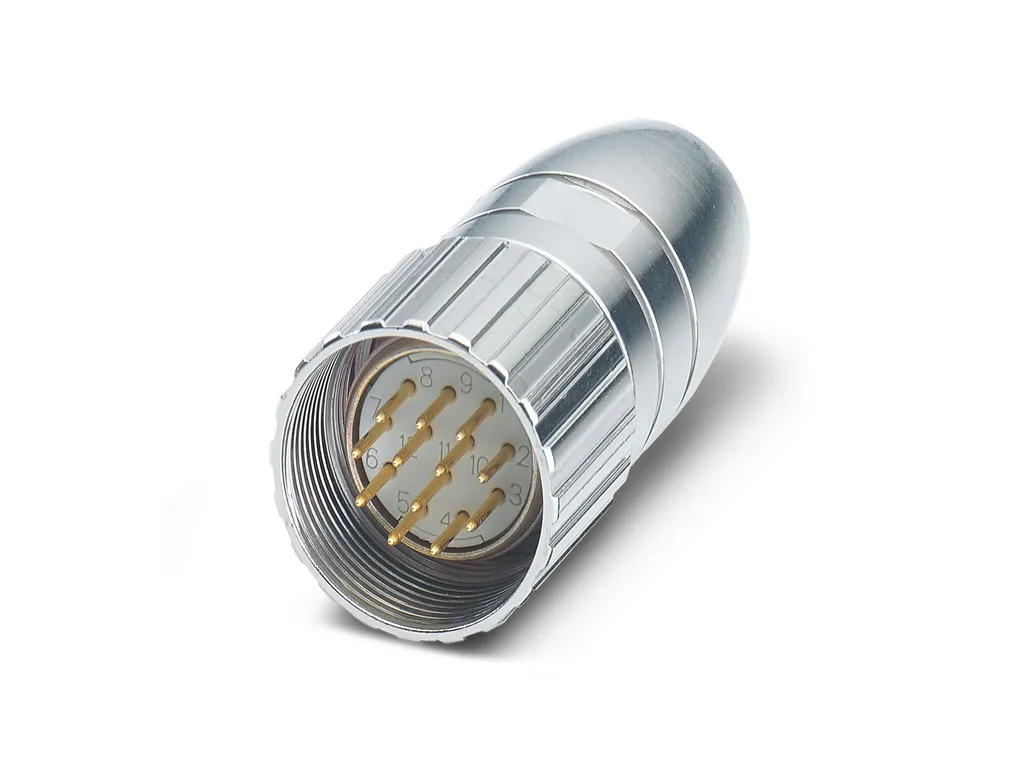

PHOENIX CONTACT 1597018

RC-12P1N1280EQ - Cable connector
Cod. Articolo: 1597018

M23, Cable connector, straight, shielded: no, Screw locking mechanism, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 3 mm ... 10.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1240787

PHOENIX CONTACT 1601836

RC-17S1N124000 - Device connector, rear mounting
Cod. Articolo: 1601836

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Socket, Solder cup, Flat gasket, 4x M2.5, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241399
