| Notes | General: 1 for every connector |

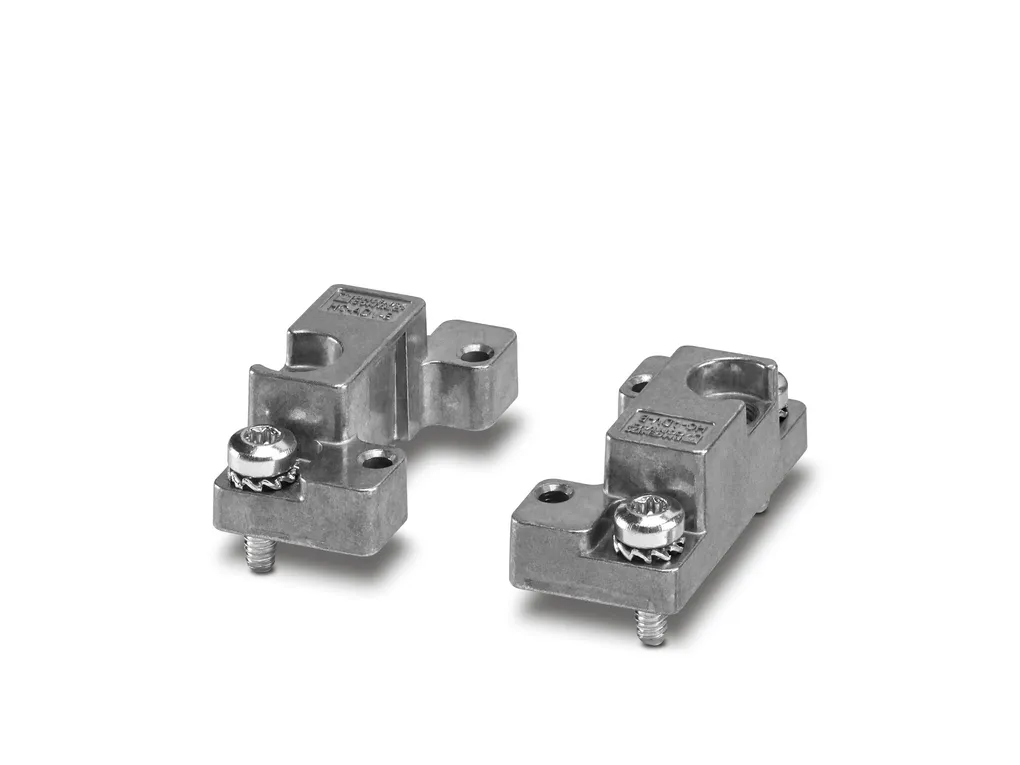

| Product properties | Type: B6 - B24 Set of 2 with screws Product type: Panel-mount flange Housing type: Panel-mount flange Protective cover: no Pg screw connection: none |
| Connection data | Tightening torque: 0.8 Nm ... 1.2 Nm (For M4 mounting screws on the panel-mount base) |

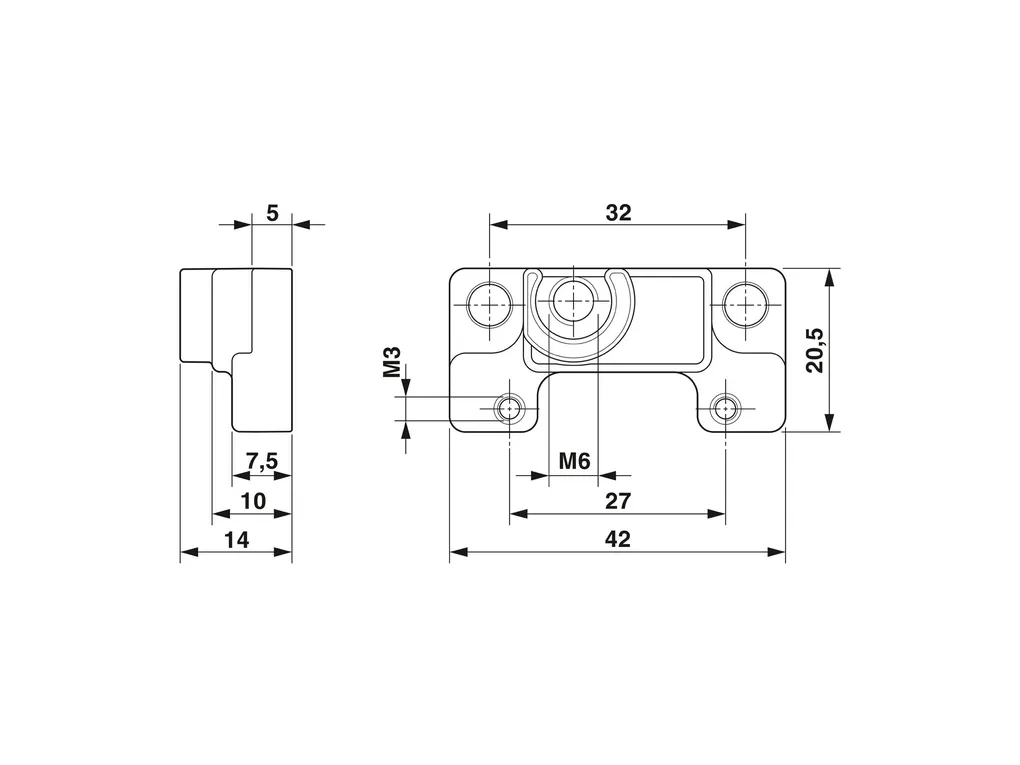

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/f60b110b08c2364cb216582332dc6320/-S204x204-FJPG Width: 42 mm Height: 20.5 mm Depth: 14 mm Hole diameter: 4.5 mm |
| Material specifications | Material: die-cast aluminum |
| Mechanical properties | Mechanical data Locking type: Nut |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
| Mounting | Assembly instructions: In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. Minimum panel thickness of a steel sheet: 2.0 mm. For mounting with self-tapping M4 screws: 3.6Ãmm drill-hole diameter |
