| Notes | General: 2 for every connector |
| Product properties | Product type: Panel-mount flange Pg screw connection: none |

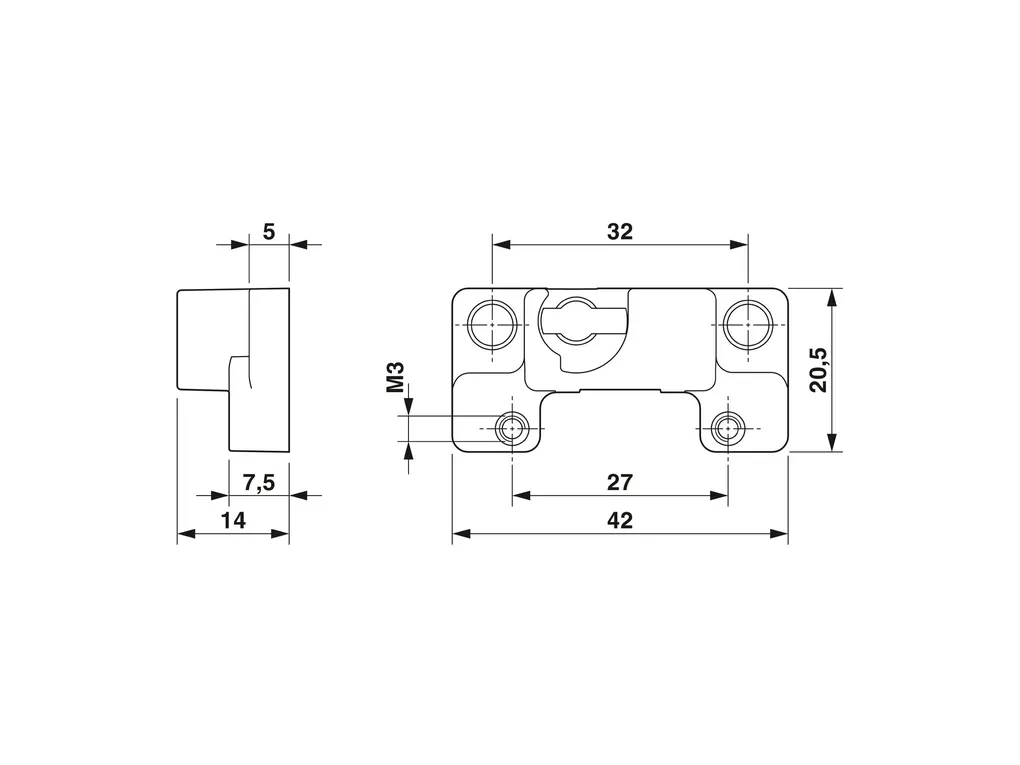

| Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/0d1a6477d602b04cb410939dd714cf3d/-S204x204-FJPG Hole diameter: 4.5 mm |
| Material specifications | Material: Die-cast zinc |
| Mechanical properties | Mechanical data Locking type: Nut |
| Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
| Mounting | Assembly instructions: In order to guarantee that the protective conductor contact functions even when plugged in at an angle, the two panel-mount flanges must have sufficient electrical contact with the metal mounting panel. |
