Notes | General: Connectors may be operated only when there is no load/voltage. |
Mounting | Assembly instructions: To ensure correct use, installation in housing with IP54 protection or better is required |

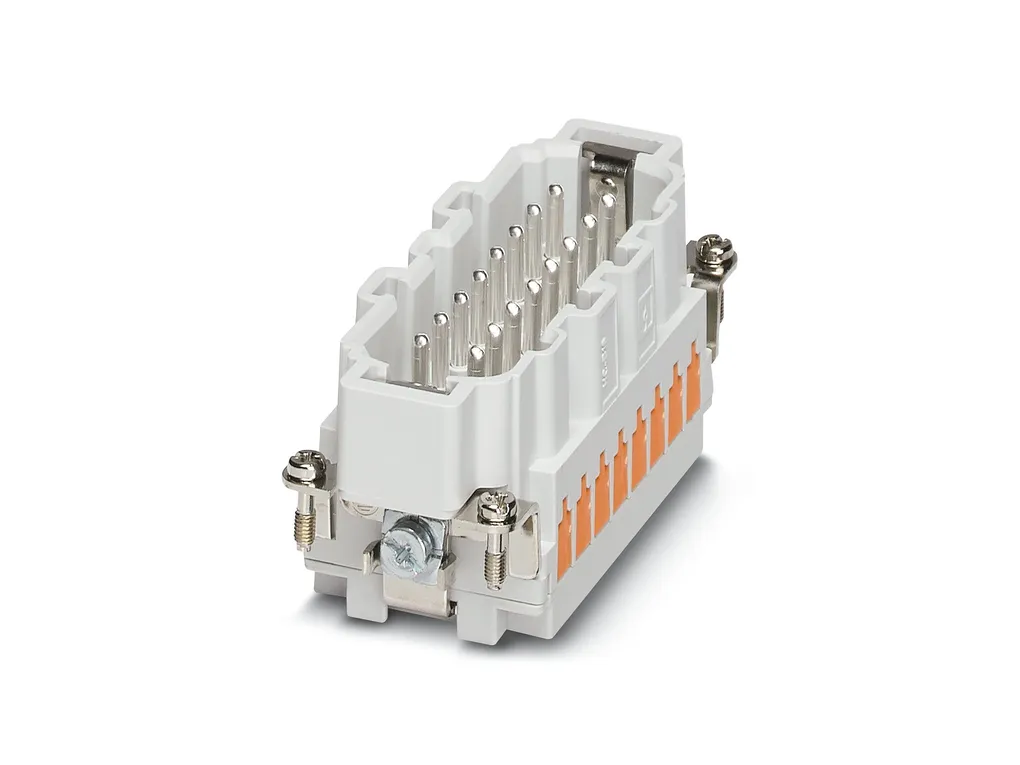

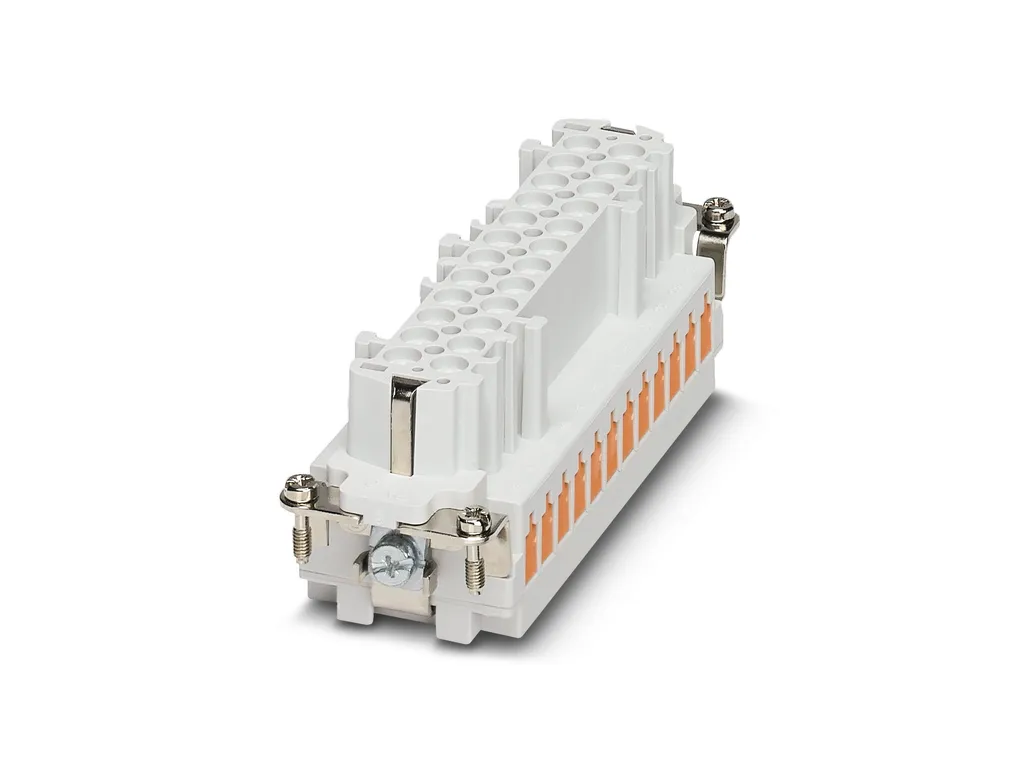

Product properties | Type: B16 B32 Product type: Contact insert with a fixed no. of positions Number of positions: 16 Connection profile: 16+PE Contact numbering: 17 - 32 Insulation characteristics Overvoltage category: III Degree of pollution: 3 |
Dimensions | Mechanical characteristics Contact diameter: 2.5 mm |
Connection data | Connection technology Connection technology: QUICKON connection Conductor connection Conductor cross section: 0.34 mm² ... 2.5 mm² (Litz wire structure VDE 0295, Class 1 - 5/litz wire diameter >= 0.2 mm) Connection cross section AWG: 22 ... 14 Tightening torque: 0.8 Nm ... 1.2 Nm (PE connection) 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
Electrical properties | Rated voltage (III/3): 500 V Rated surge voltage: 6 kV Rated current: 16 A |
Mechanical properties | Mechanical data Insertion/withdrawal cycles: ⥠500 |
Material specifications | Flammability rating according to UL 94: V0 |
Environmental and real-life conditions | Ambient conditions Ambient temperature (operation): -40°C ... 125°C |
ECLASS | ECLASS-11.0: 27440205 ECLASS-12.0: 27440205 ECLASS-13.0: 27440205 |
ETIM | ETIM 9.0: EC000438 |
UNSPSC | UNSPSC 21.0: 39121500 |
