PHOENIX CONTACT 1605739

Not available

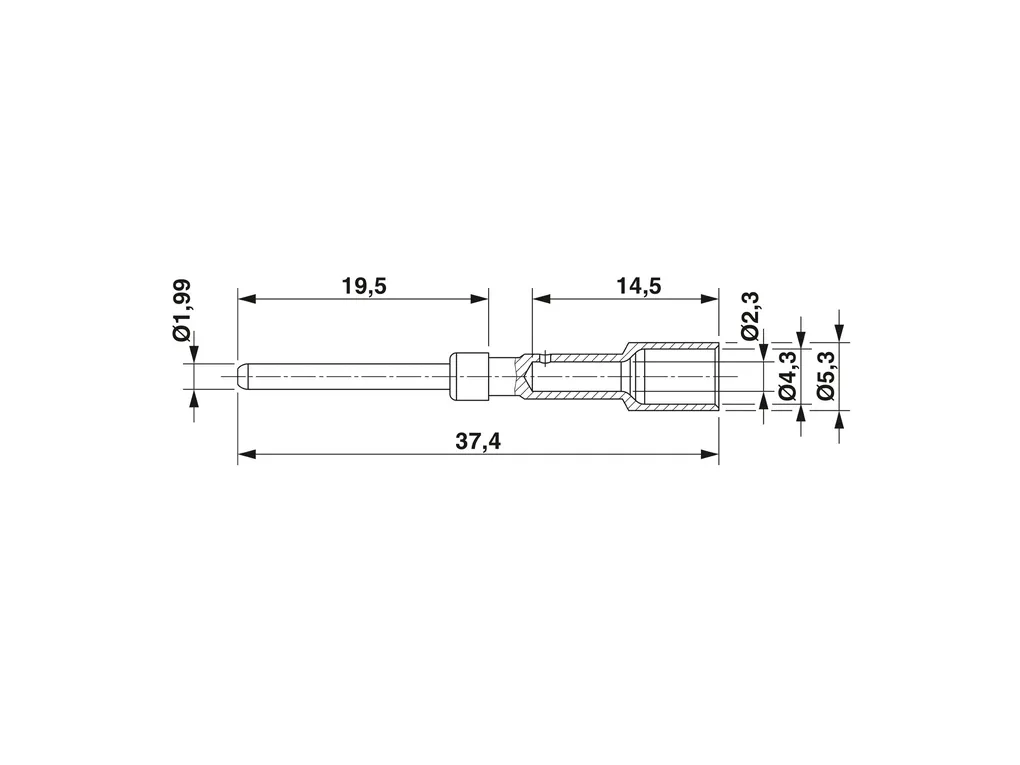

SM-20KP007 - Crimp contact

Crimp contact, Pin, turned, Single contact, contact diameter: 2 mm, crimp range: 1 mm² ... 2.5 mm², Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1241968

Product Code: 1605739

Partner cod.: 1605739

PHOENIX CONTACT

Tecnichal data

Technical Specs

Download

Tecnichal data

Mounting	Connection method: Crimp connection
Product properties	Product type: Crimp contact Contact material type: turned
Connection data	Connection method: Crimp connection Contact connection type: Pin Conductor cross section: 1 mm² ... 2.5 mm²
Material specifications	Contact surface: Nickel-plated (Ni), with gold coating (Au) Contact material: CuZn
Dimensions	Mechanical characteristics Contact diameter: 2 mm
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 100

Technical Specs

ECLASS	ECLASS-11.0: 27440204 ECLASS-12.0: 27440204 ECLASS-13.0: 27440204
ETIM	ETIM 9.0: EC000796
UNSPSC	UNSPSC 21.0: 39121500

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_10698.pdf

Technical_drawing_16771.pdf
