TU-00000004100 - Housing screw connection
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Order contact inserts separately |
Product properties | Product type: Panel mounting base Connection profile: 12 Application: Signal Series: TU Shielded: yes Thread type: M23 |

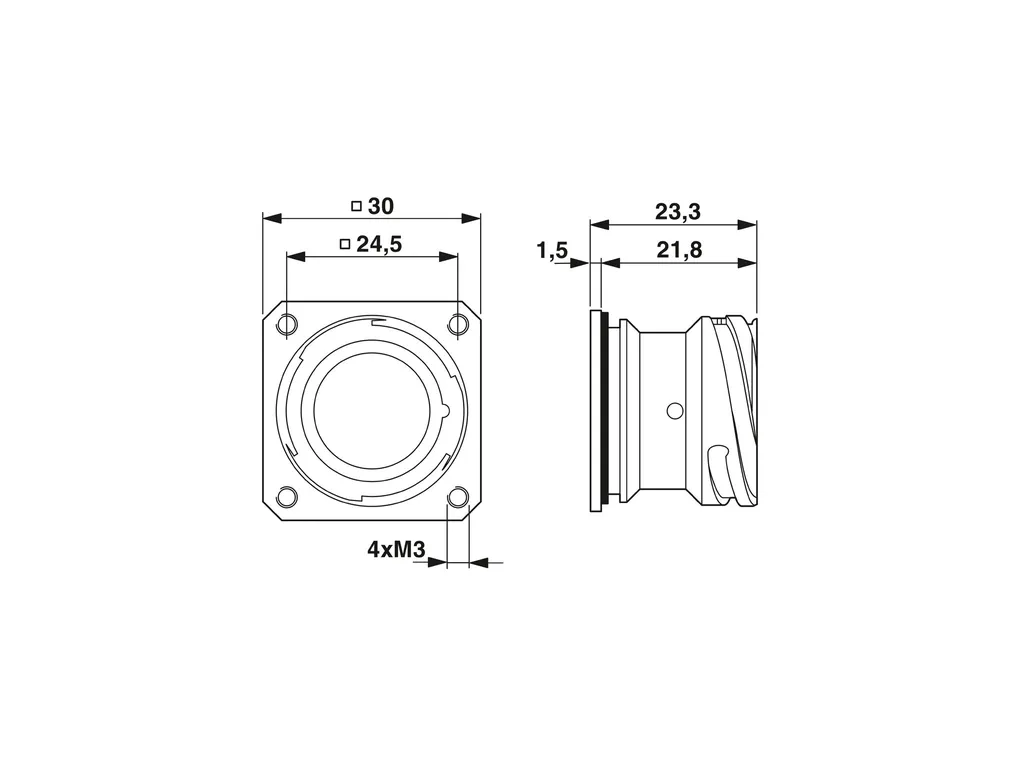

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/1b0b62d5082c78469b1020c9bab51a77/-S204x204-FJPG Length of the solder pin: 16.5 mm 2.5 mm 3.5 mm 9 mm 16.5 mm 2.5 mm 3.5 mm 9 mm |
Material specifications | Seal material: FPM or NBR or EPDM Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Metal Gasket and O-ring material: FPM |
Connector | Type: straight |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -40°C ... 90°C Altitude: 2000 m |
Mounting | Mounting: 4x M3 Panel thickness: < 2.5 mm Connection method: Crimp connection |
ECLASS | ECLASS-11.0: 27440224 ECLASS-12.0: 27440224 ECLASS-13.0: 27440224 |
ETIM | ETIM 8.0: EC000437 |
UNSPSC | UNSPSC 21.0: 31261500 |
