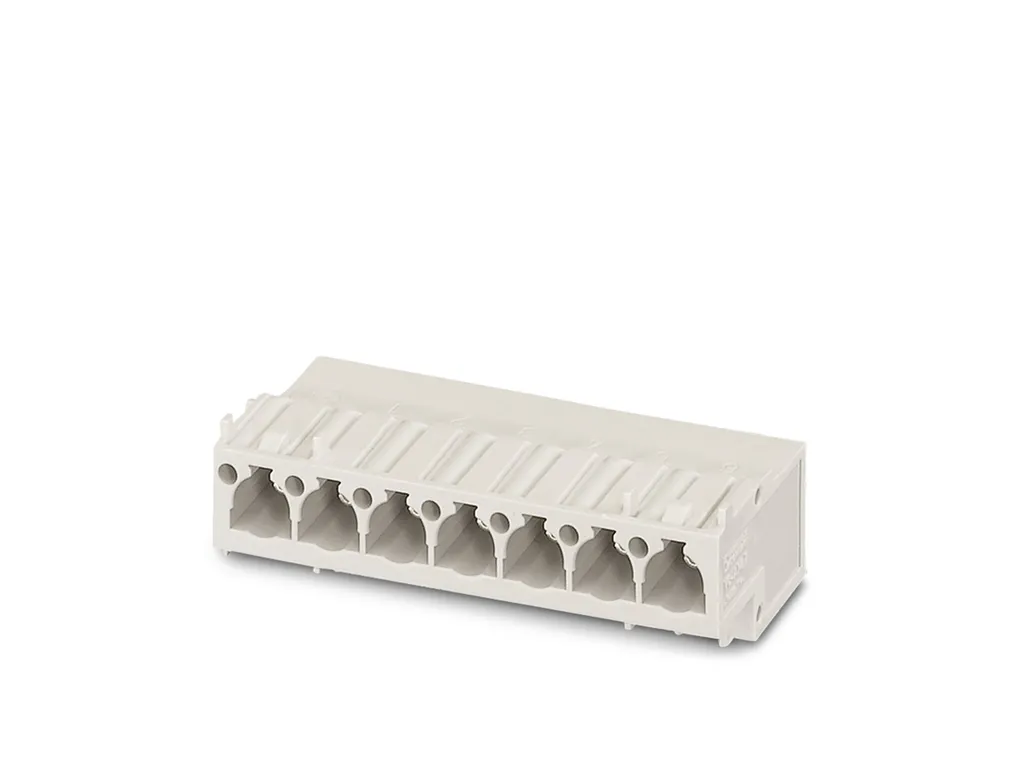

VC-AML 7-PEA - Contact insert

Contact insert, Range of articles: VARIOCON, design: VC4, housing material: PA 6.6, color: light grey, number of positions: 7, rated voltage: 690, rated current: 63 A, Connection method: PCB connection, Contact connection type: Pin. Connectors may only be connected/disconnected when under no load.
Product Code: 1607544
Partner cod.: 1607544
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Technical Specs
Download
Tecnichal data
NotesGeneral: Connectors may only be connected/disconnected when under no load.
Product propertiesType: VC4
Product type: Contact insert
Product family: VARIOCON
Number of positions: 7
Connection profile: 6+PE
Number of module slots: 5
Series: VC-M
Insulation characteristics
Degree of pollution: 3
Electrical propertiesRated voltage (II/2): 1000 V
Rated voltage (III/2): 1000 V
Rated voltage (III/3): 690 V
Nominal voltage ATD: 690
Rated surge voltage: 6 kV
Rated surge voltage (II/2): 8 kV
Rated surge voltage (III/2): 8 kV
Rated surge voltage (III/3): 8 kV
Rated current: 63 A
70 A
63 A
Nominal voltage UN: 690 V
DimensionsWidth: 35.6 mm
Height: 27.1 mm
Length: 75 mm
Material specificationsColor: light grey
Color of the housing part: gray
Material: Polyamide
Flammability rating according to UL 94: V0
Insulating material group: I
Contact material: E-Cu 58
Contact surface material: hard-silver plated
Housing material: PA 6.6
Mechanical propertiesMechanical data
Insertion/withdrawal cycles: ≥ 50
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 100°C
MountingConnection method: PCB connection
Technical Specs
ECLASSECLASS-11.0: 27440223
ECLASS-12.0: 27440223
ECLASS-13.0: 27440223
ETIMETIM 9.0: EC003557
UNSPSCUNSPSC 21.0: 39121400
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Application_note_00208.pdf

Technical_drawing_16895.pdf
