Product properties | Product type: Full screw connection No. of conductors: 1 Type of the screw connection: M40 Manufacturer: Jacob Manufacturer Designation: 101036M40 Shielded: no |

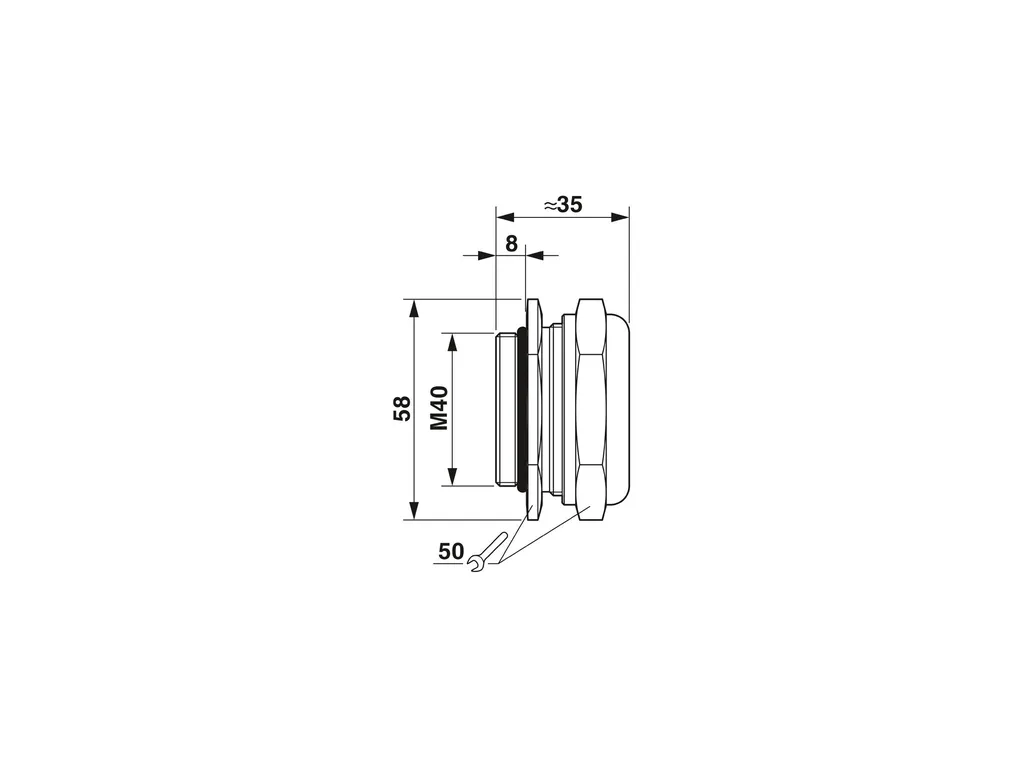

Dimensions | Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/17e100ca5afb4448bca5632895bbad4c/-S204x204-FJPG Length: 35 mm Length of the connecting thread: 8 mm Hole diameter: 40.1 mm ... 40.3 mm Wrench size, union nut: 50 mm Wrench size, support: 50 mm Hexagon angular dimension: 58 mm Thread type connection side: M40 x 1.5 Thread pitch: 1.5 mm |
Connection data | Tightening torque: 20 Nm (Union nut) 20 Nm (Support sleeve) |
Material specifications | Material: PA Seal material O-ring: NBR Seal material Cable seal: Neoprene Material for screw connection: Brass, nickel-plated |
Cable/line | External cable diameter (Cable 1): 27 mm ... 34 mm Halogen-free: no |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP68 (up to 5 bar) Ambient temperature (operation): -30°C ... 100°C |
ECLASS | ECLASS-11.0: 27144432 ECLASS-12.0: 27140801 ECLASS-13.0: 27140801 |
ETIM | ETIM 9.0: EC000441 |
UNSPSC | UNSPSC 21.0: 39121300 |
