RF-17S1N8AWA00 - Device connector front mounting
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Order crimp contacts Ø 1 mm separately |

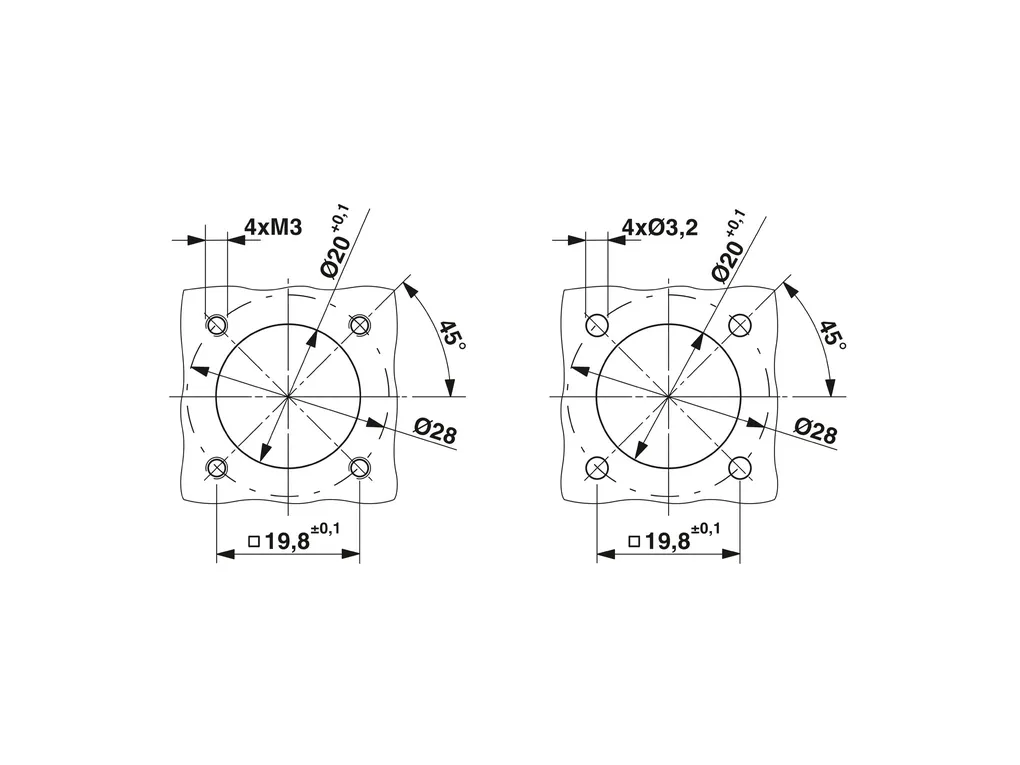

Mounting | Mounting: 4x Ø 3.2 Connection method: Crimp connection |
Product properties | Product type: Circular connectors (device side) Number of positions: 17 Connection profile: 17 Application: Signal Series: RF Shielded: yes Coding: N Thread type: M23 |
Material specifications | Seal material: FPM Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Insulator material: PA 6.6 Gasket and O-ring material: FPM |
Electrical properties | Contact Contact diameter: 1 mm Max. current: 8 A Nominal voltage UN: 48 VAC 74 VDC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 1.5 kV |
Connection data | Conductor connection Connection method: Crimp connection Contact connection type: Socket |
Connector | Type: straight Direction of rotation: Standard Connection 1 Head design: Socket |
Environmental and real-life conditions | Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -20°C ... 125°C Altitude: 2000 m |
ECLASS | ECLASS-11.0: 27440102 ECLASS-12.0: 27440116 ECLASS-13.0: 27440116 |
ETIM | ETIM 9.0: EC002635 |
UNSPSC | UNSPSC 21.0: 39121400 |
