PHOENIX CONTACT 1610272
PHOENIX CONTACT 1610272
PHOENIX CONTACTNot available

RC-06S1N8AY100 - Device connector, front mounting with knurled nut

M23, Device connector, front mounting with knurled nut, series: RC, straight, shielded: no, Screw locking mechanism, No. of pos.: 6, Direction of rotation: Standard, contact connection type: Socket, Crimp connection, Flat gasket, 4x Ø2,7, coding: N
Product Code: 1610272
Partner cod.: 1610272
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
NotesGeneral: Order crimp contacts Ø 2 mm separately
Product propertiesProduct type: Circular connectors (device side)
ConnectorInsulating body
Note: Order information: Order crimp contacts Ø 2 mm separately

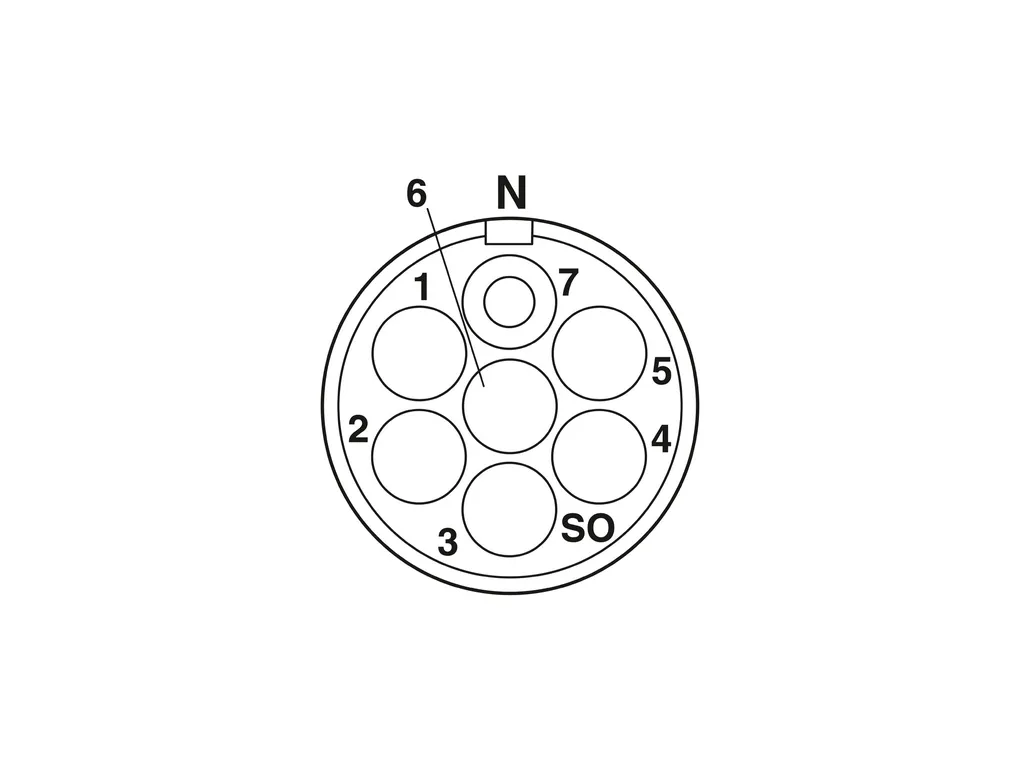

Coding: N
Connection method: Crimp connection
Contact switching type: Socket
Application: Signal
Number of positions: 6
Direction of rotation: Standard
Connection profile: 6
Contact diameter Power contacts: 2 mm
Rated current Power contacts: 20 A
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Housing
Housing material: Metal
Type of locking: Screw locking mechanism
Degree of protection (plugged in): IP67
Thread type: M23
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11041.pdf
