PHOENIX CONTACT 1611137

PHOENIX CONTACT 1611137

Not available

RC-16P1NA24300 - Device connector, rear mounting

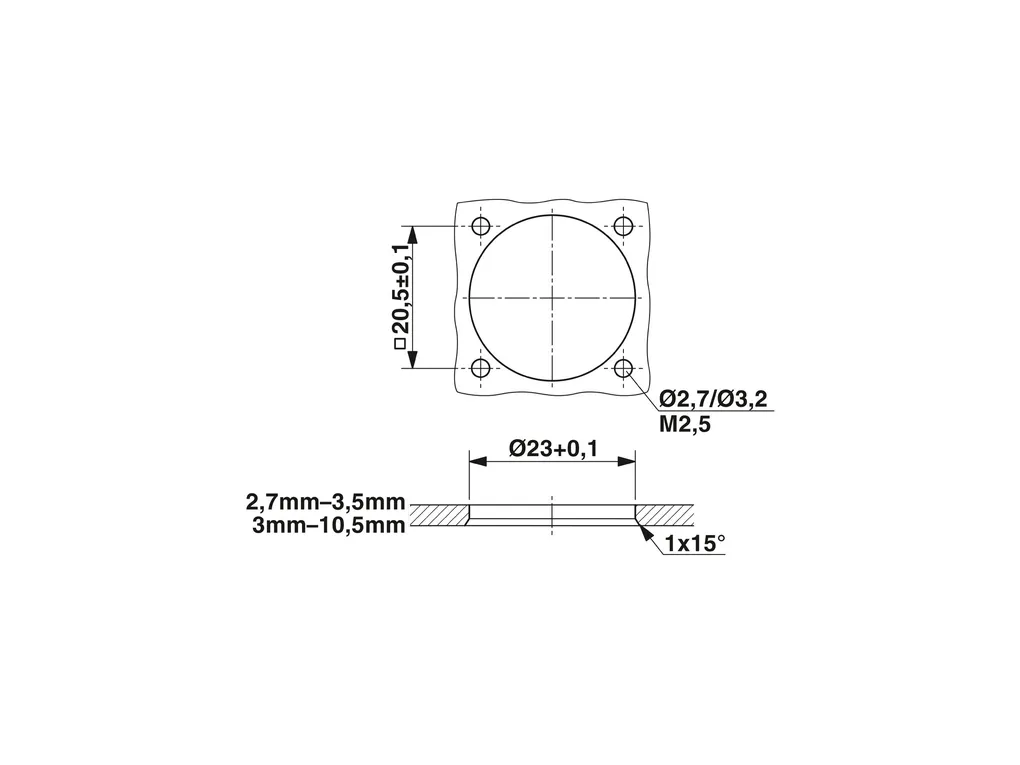

M23, Device connector, rear mounting, series: RC, straight, Screw locking mechanism, Radial O-ring, 4xM3, Panel thickness min.: 2.7 mm, Panel thickness max.: 3.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1242556

Product Code: 1611137 Copia - Copy

Copia - Copy

Partner cod.: 1611137 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Circular connector (cable-side)
Material specifications	Flammability rating according to UL 94: V0
Connector	Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11079.pdf

Technical_drawing_17024.pdf

Other products

Description other products

PHOENIX CONTACT 1618740

ST-8EP1N8A9K02S - Coupler connector
Cod. Articolo: 1618740

Coupler connector, straight, for standard and SPEEDCON interlock, M17, number of positions: 5+3+PE, contact connection type: Pin, shielded: yes, flange dimensions: 25.75 mm x 25.75 mm, degree of protection: IP67, cable diameter range: 3.5 mm ... 5.5 mm, number of positions: 9, connection method: Crimp connection, series: ST, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243304

PHOENIX CONTACT 1617814

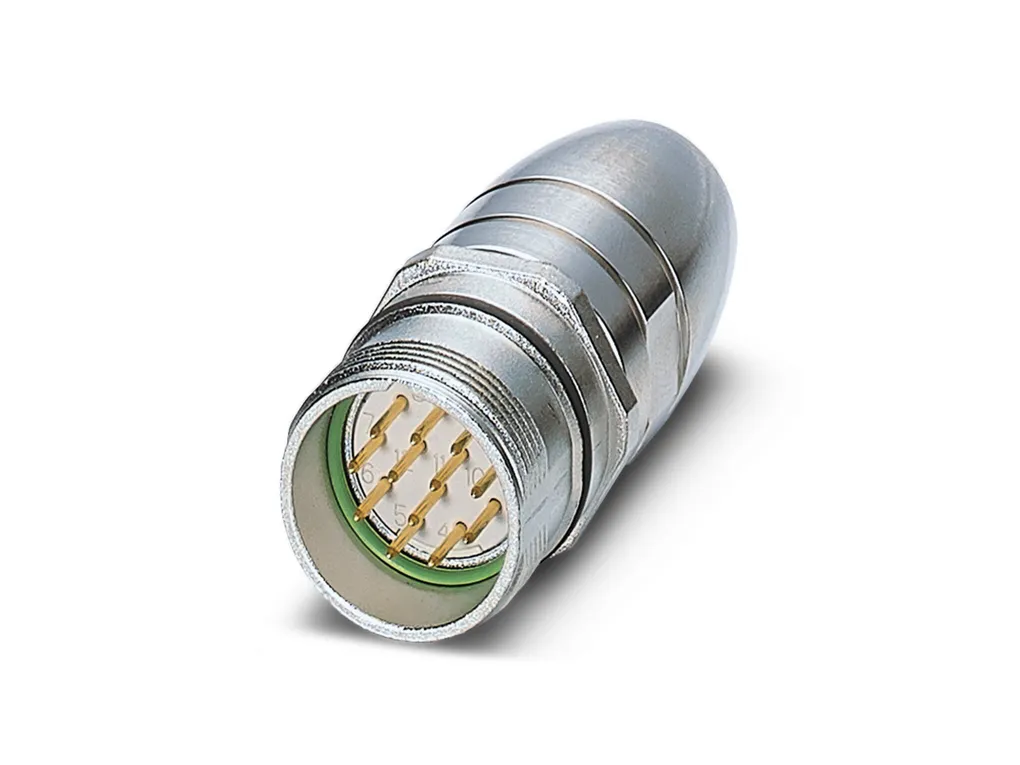

RC-17P1N1290GZ - Coupler connector
Cod. Articolo: 1617814

M23, Coupler connector, series: RC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Solder cup, cable diameter range: 3.5 mm ... 4.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243127

PHOENIX CONTACT 1620179

CA-16P1N8AT008 - Cable connector
Cod. Articolo: 1620179

M23, Cable connector, series: CA, angled, shielded: yes, Screw locking mechanism, No. of pos.: 16, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 10 mm ... 14.5 mm, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1244068
