1615309 PHOENIX CONTACT - Technology Bsa

HC-26P1N322300 - Device connector front mounting

Device connector front mounting, straight, Screw locking mechanism, M27, number of positions: 26, contact connection type: Pin, Flat gasket, 4x ÃË 3.2, shielded: yes, degree of protection: IP67, number of positions: 26, connection method: Solder pins, series: HC

Product Code: 1615309 Copia - Copy

Partner cod.: 1615309 Copia - Copy

PHOENIX CONTACT

Mounting	Mounting: 4x ÃÃ 3.2 Connection method: Solder pins
Product properties	Product type: Circular connectors (device side) Number of positions: 26 Connection profile: 26 Application: Signal Series: HC Shielded: yes Coding: N Thread type: M27

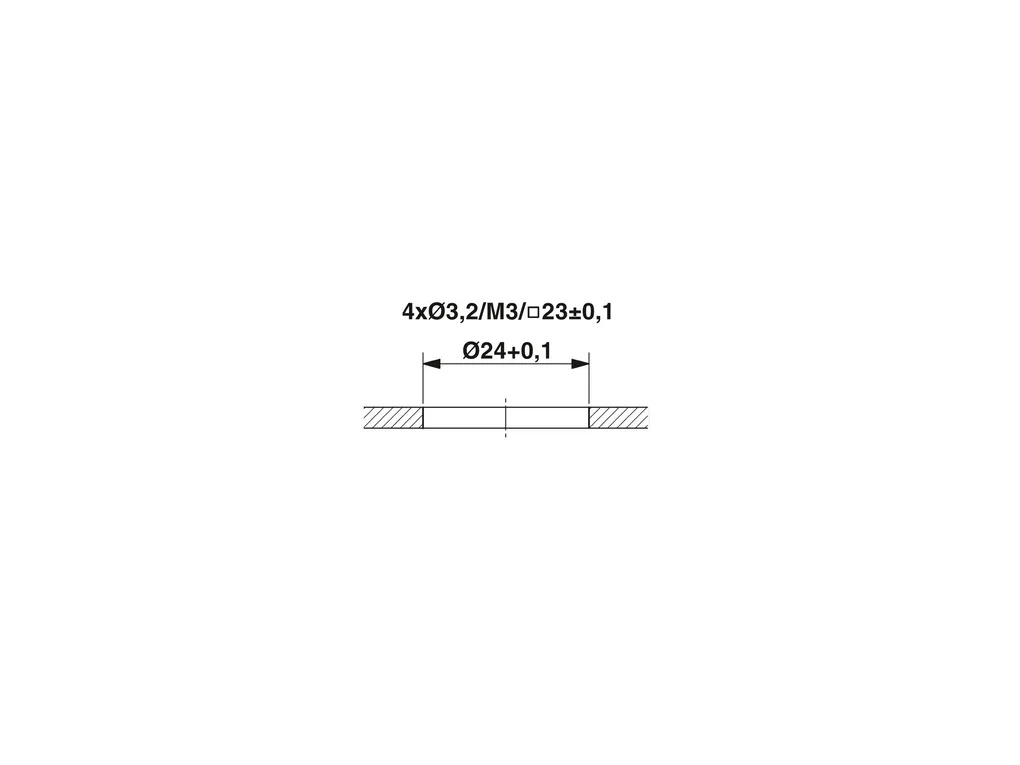

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/8b20a7640a9a4545bc3fc57ef357061d/-S204x204-FJPG Length of the solder pin: 4.5 mm
Material specifications	Flammability rating according to UL 94: V0 Seal material: FPM or NBR or EPDM Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) Metal Contact material: CuZn Contact surface: Nickel-plated, gold coating
Electrical properties	Contact Contact diameter: 1 mm Max. current: 8 A Nominal voltage U_N: 48 VÃAC 74 VÃDC Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 1.5 kV
Connection data	Conductor connection Connection method: Solder pins Contact connection type: Pin
Mechanical properties	Mechanical data Insertion/withdrawal cycles: 50
Connector	Type: straight Direction of rotation: Standard Connection 1 Head design: Pin
Environmental and real-life conditions	Ambient conditions Degree of protection: IP67 Ambient temperature (operation): -20°C ... 125°C Altitude: 2000 m
