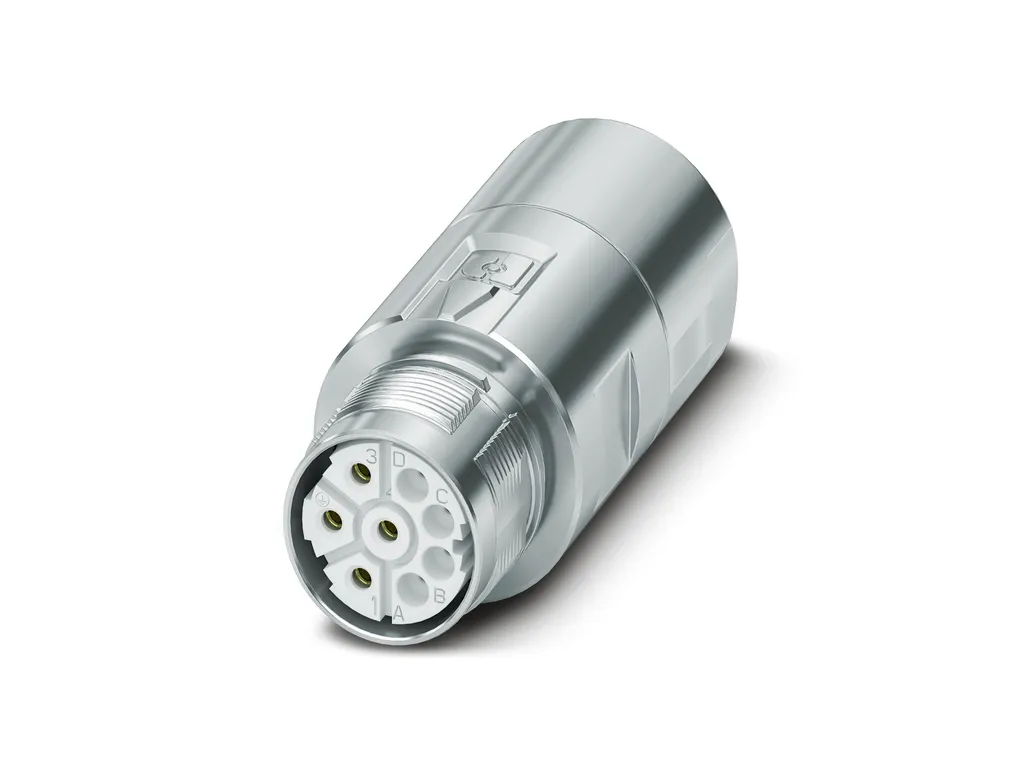

RC-09S1N8AB1NY - Front panel feed-through
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
![](https://www.technologybsa.com/wp-content/uploads/2023/08/copia.png)
Notes | General: Order crimp contacts 8 x à 1 mm, 1 x à 2 mm separately |
Product properties | Product type: Circular connector (cable-side) |
Connector | Insulating body Note: Order information: Order crimp contacts 8 x à 1 mm, 1 x à 2 mm separately Coding: N Connection method: Crimp connection Contact switching type: Socket Application: Signal Number of positions: 9 Direction of rotation: Standard Connection profile: 8+1 Contact diameter Power contacts: 2 mm Rated current Power contacts: 20 A Rated voltage: 48 VAC 74 VDC Rated surge voltage: 1.5 kV Overvoltage category: III Degree of pollution: 3 Contact diameter Signal contacts: 1 mm Nominal current per signal contact: 8 A Housing Order information:: Order contact inserts and cable clamping/shield accessories separately Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23 Seal External cable diameter: 7.5 mm ... 9.5 mm |
ECLASS | ECLASS-11.0: 27281101 ECLASS-12.0: 27281101 ECLASS-13.0: 27281101 |
ETIM | ETIM 8.0: EC000761 |
UNSPSC | UNSPSC 21.0: 39131500 |
