PHOENIX CONTACT 1618495

PHOENIX CONTACT 1618495

Not available

RC-16S1NA2H000 - Device connector, rear mounting

M23, Device connector, rear mounting, series: RC, straight, shielded: yes, Screw locking mechanism, Axial O-ring, Central fastening M25 x 1.5, Panel thickness min.: 0.8 mm, Panel thickness max.: 6.5 mm, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243219

Product Code: 1618495 Copia - Copy

Copia - Copy

Partner cod.: 1618495 Copia - Copy

Copia - Copy

PHOENIX CONTACT

Tecnichal data

Download

Tecnichal data

Product properties	Product type: Circular connectors (device side)

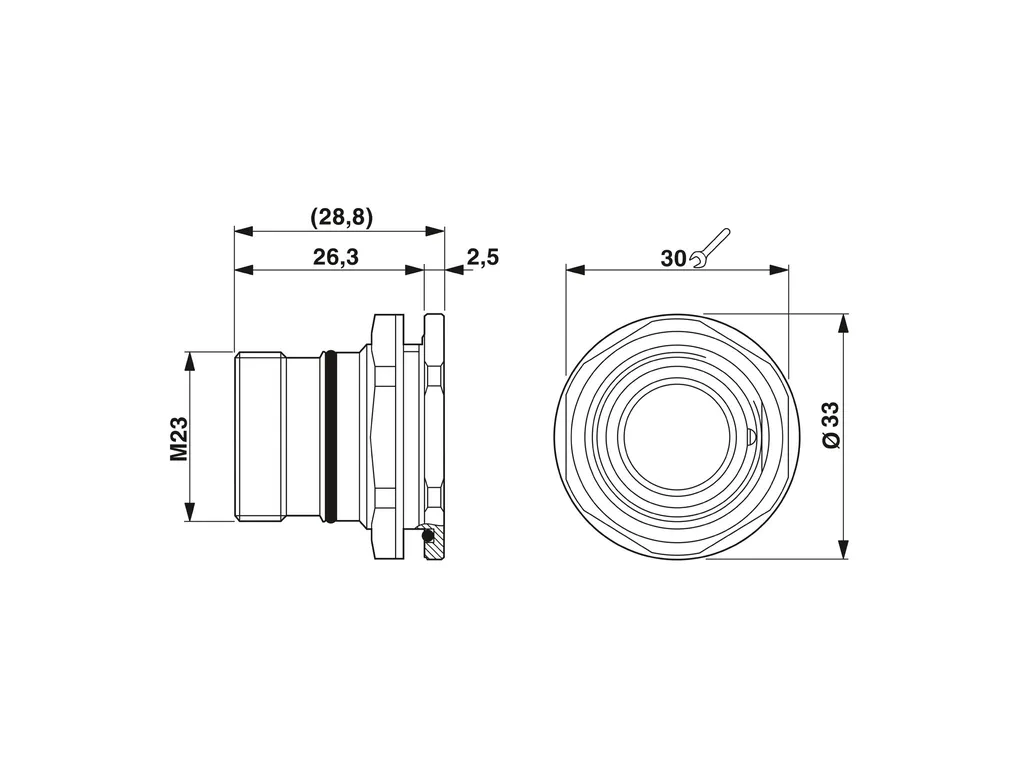

Dimensions	Dimensional drawing: https://dam-mdc.phoenixcontact.com/rendition/156443151564/ede6aa589ab9b749bc62869a38cf0424/-S204x204-FJPG Length of the solder pin: 3.5 mm
Connector	Housing Housing material: Metal Type of locking: Screw locking mechanism Pg screw connection: none Degree of protection (plugged in): IP67 Thread type: M23

Download

PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11406.pdf
