| Product properties | Product type: Signal and power cable |

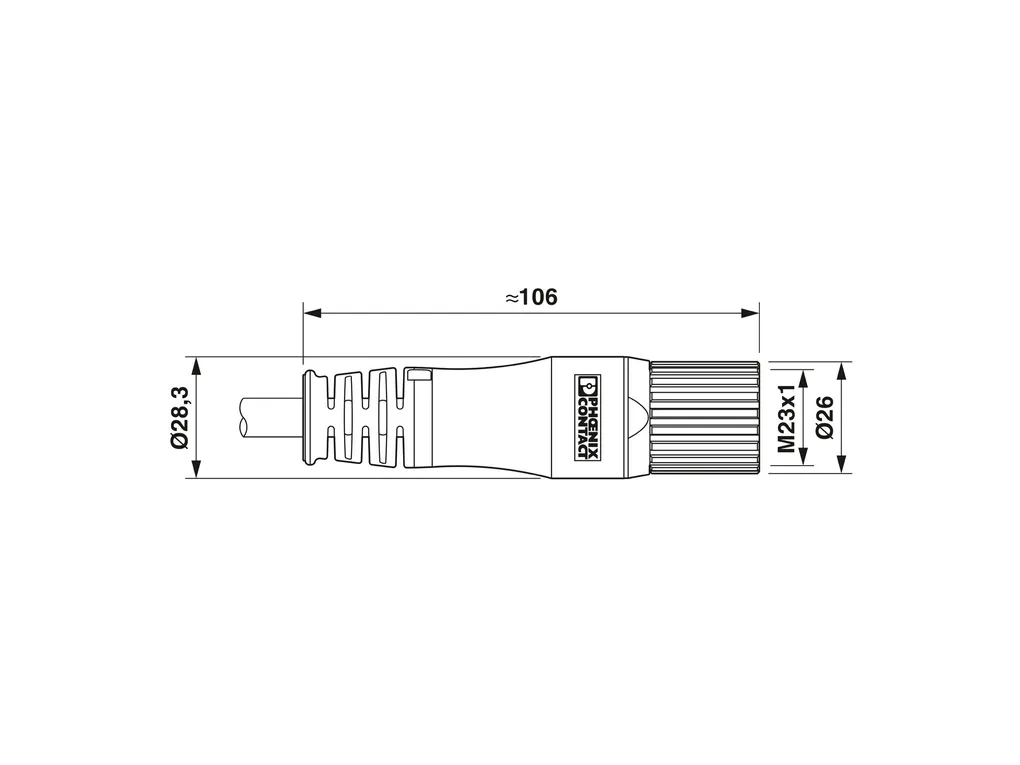

| Connector | Connector specifications Type: Straight, plastic molded Cable specifications Cable type: SSLC11Y Shielded: yes Cable structure: 3x2x0.14mm²+2x0.5mm²+4x0.14mm²+4x0.22mm² Cable structure (AWG): 26 AWG/3pr + 20 AWG/2c + 26 AWG/4c + 24 AWG/4c External cable diameter: 9.4 mm Outer sheath, material: TPU Material wire insulation: TPU External sheath, color: green Nominal voltage, cable: 30 V Test voltage: 0.5 kV Rated current: 9 A Smallest bending radius, fixed installation: 38 mm Smallest bending radius, movable installation: 94 mm Ambient temperature (operation) for fixed installation: -30°C ... 80°C Ambient temperature (operation) for flexible installation: -30°C ... 60°C Connector specifications (second page) Type: Straight, plastic molded |
| Electrical properties | Nominal current IN: 9 A |
| Cable/line | Cable length: 5 m |
| ECLASS | ECLASS-11.0: 27060106 ECLASS-12.0: 27060106 ECLASS-13.0: 27060106 |
| ETIM | ETIM 9.0: EC003250 |
| UNSPSC | UNSPSC 21.0: 26121600 |
