1619318 PHOENIX CONTACT - Technology Bsa

K-5E-M17 M9/010-C00/M17 F8 - Connector in molded plastic on both sides

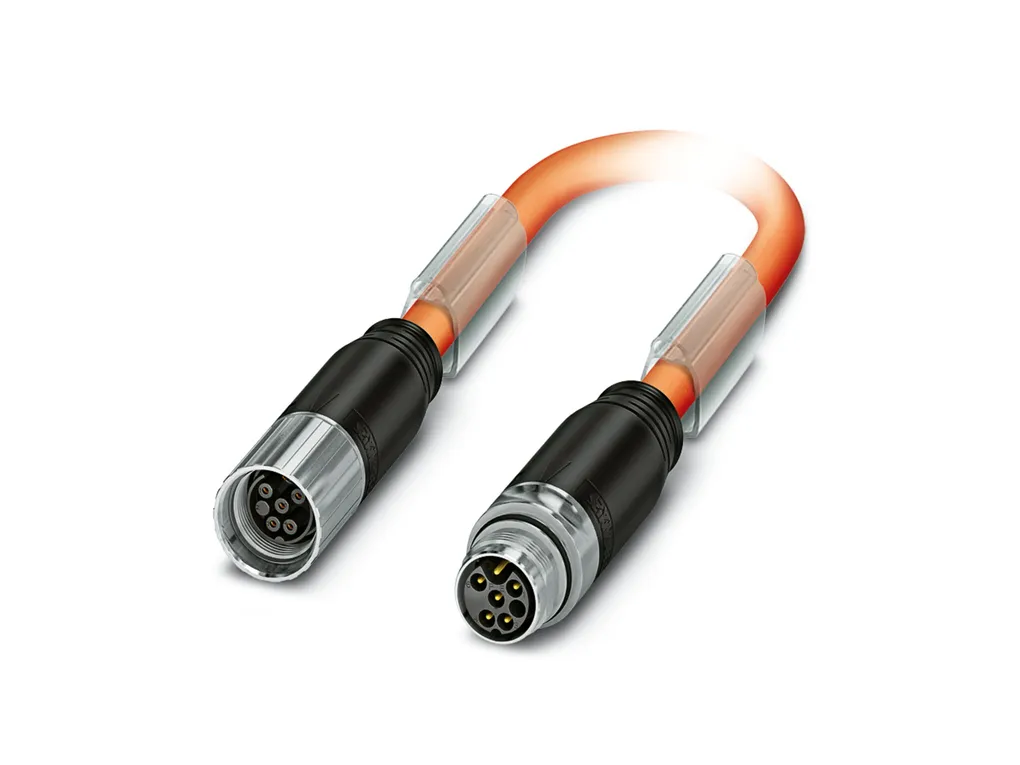

Connector in molded plastic on both sides, series: KST, M17-Socket, Straight, plastic molded, number of positions: 5+PE, type of locking: Screw locking mechanism, on M17-Pin, Straight, plastic molded, number of positions: 5+PE, cable length: 10 m, shielded: yes, color of outer sheath: orange RAL2003, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243440

Product Code: 1619318

Partner cod.: 1619318

PHOENIX CONTACT

Notes	General: Observe derating curve. Safety note Safety note: WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. Ã¢¢ WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. Ã¢¢ WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. Ã¢¢ The products are suitable for applications in plant, controller, and electrical device engineering. Ã¢¢ When operating the connectors in outdoor applications, they must be separately protected against environmental influences. Ã¢¢ Assembled products may not be manipulated or improperly opened. Ã¢¢ Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). Ã¢¢ When using the product in direct connection with third-party manufacturers, the user is responsible. Ã¢¢ For operating voltages > 50V AC, conductive connector housings must be grounded Ã¢¢ Ensure that the protective or functional ground has been properly connected. Ã¢¢ VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector Ã¢¢ Only use tools recommended by PhoenixContact Ã¢¢ The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. Ã¢¢ Operate the connector only when it is fully plugged in and interlocked. Ã¢¢ Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. Ã¢¢ Observe the minimum bending radius of the cable. Lay the cable without twisting it. Ã¢¢ The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).
Product properties	Product type: Signal and power cable

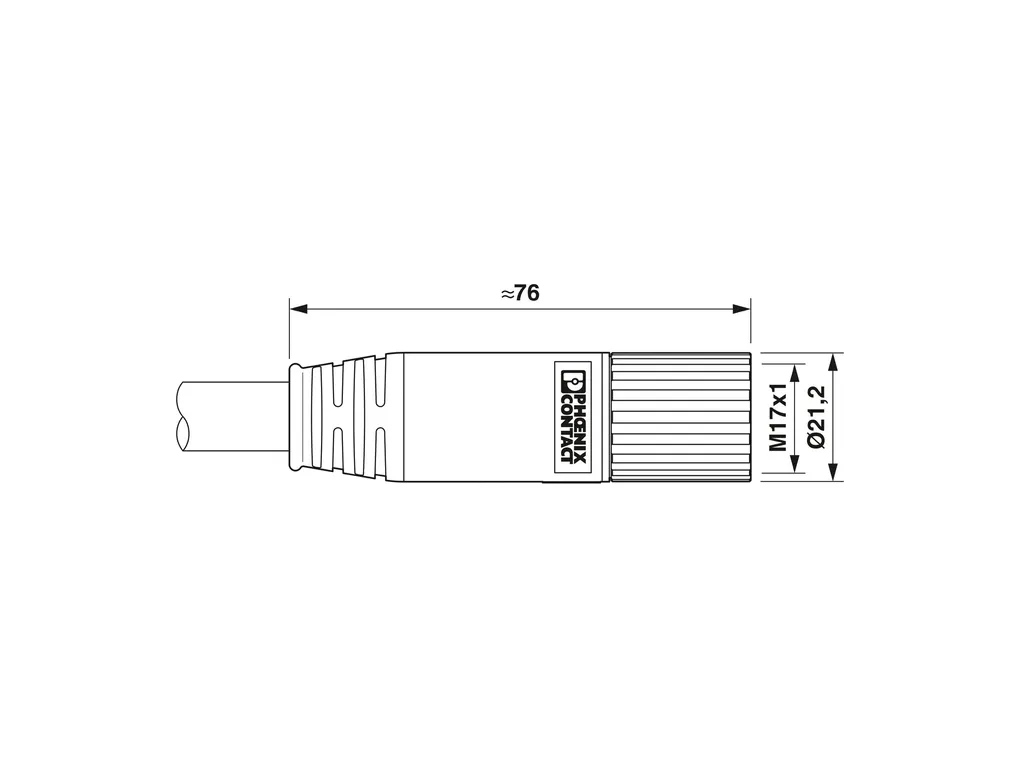

Connector	Connector specifications Type: Straight, plastic molded Housing material: Zinc die-cast Thread type: M17 Type of locking: Screw locking mechanism Degree of protection: IP67, when in locked state No. of pos.: 5+PE Direction of rotation: Standard Contact switching type: Socket Insertion/withdrawal cycles: 50 Contact resistance: < 0.3 mÃ© Max. current: 14 A Voltage: 630 V Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 6 kV Ambient temperature (operation): -40°C ... 105°C Cable specifications Cable type: PSLC11Y-J Shielded: yes Cable structure: 4x0.75mm²+2x0.5mm² StC Cable structure (AWG): 19 AWG/4c + 20 AWG/1pr External cable diameter: 9.4 mm Outer sheath, material: PUR Material wire insulation: TPM External sheath, color: orange RAL2003 Nominal voltage, cable: 1000 V Test voltage: 4 kV (2 kV signal) Rated current: 12 A Smallest bending radius, movable installation: 94 mm Ambient temperature (operation) for fixed installation: -40°C ... 80°C Ambient temperature (operation) for flexible installation: -30°C ... 70°C Connector specifications (second page) Type: Straight, plastic molded Housing material: Zinc die-cast Thread type: M17 Degree of protection: IP67, when in locked state No. of pos.: 5+PE Direction of rotation: Standard Contact switching type: Pin Insertion/withdrawal cycles: 50 Contact resistance: < 0.3 mÃ© Max. current: 14 A Voltage: 630 V Overvoltage category: III Degree of pollution: 3 Rated surge voltage: 6 kV Ambient temperature (operation): -40°C ... 105°C
Cable/line	Cable length: 10 m
