PHOENIX CONTACT 1619789
PHOENIX CONTACT 1619789
PHOENIX CONTACTNot available

CA-12P1N12HZ00 - Device connector, rear mounting

M23, Device connector, rear mounting, series: CA, straight, shielded: yes, for standard and SPEEDCON interlock, No. of pos.: 12, Direction of rotation: Standard, contact connection type: Pin, Solder connection, Axial seal, Central fixing, coding: N, Alternative product in accordance with RoHS II without Exemption6c (Pb<0.1%) item no.: 1243841
Product Code: 1619789
Partner cod.: 1619789
PHOENIX CONTACT


Diminuisci la quantità
Aumenta la quantità
Tecnichal data
Download
Tecnichal data
MountingConnection method: Solder connection
Product propertiesProduct type: Circular connectors (device side)
Connection dataConductor connection
Connection method: Solder connection
Contact connection type: Pin
ConnectorInsulating body

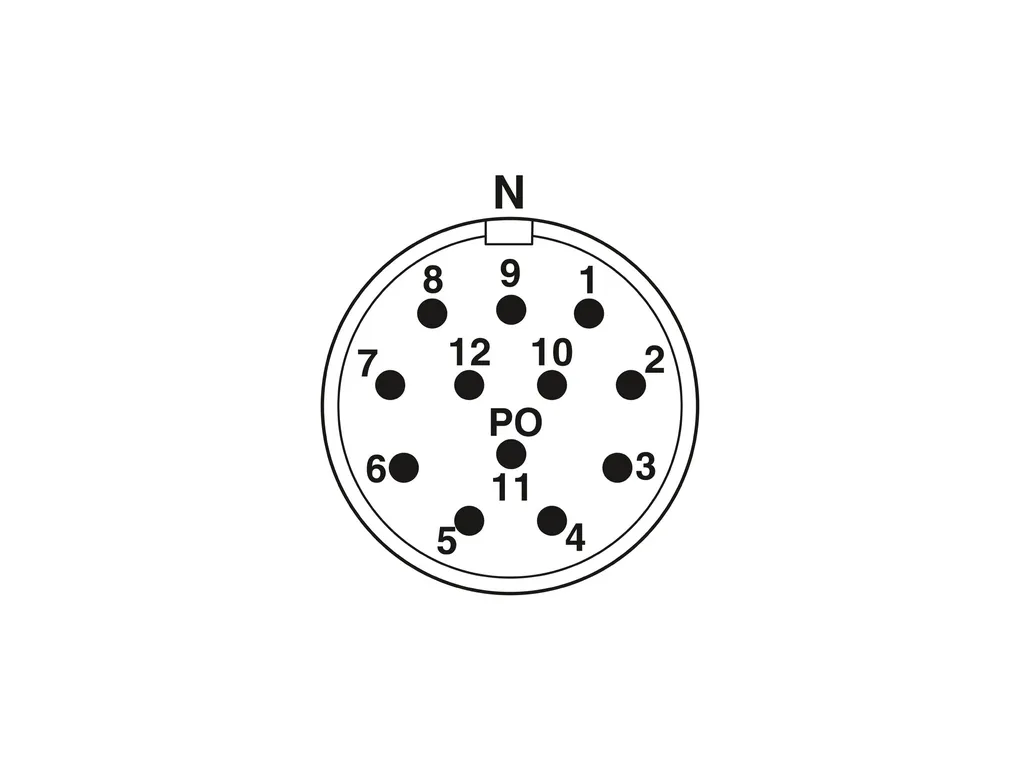

Coding: N
Insulation body material: PBT
Contact material: CuZn
Contact surface material: Ni/Au
Insertion/withdrawal cycles: 100
Connection method: Solder connection
Contact switching type: Pin
Application: Signal
Number of positions: 12
Direction of rotation: Standard
Connection profile: 12
Rated voltage: 48 VÂAC
74 VÂDC
Rated surge voltage: 1.5 kV
Overvoltage category: III
Degree of pollution: 3
Contact diameter Signal contacts: 1 mm
Litz wire cross-section Signal contacts max.: 1 mm²
Nominal current per signal contact: 8 A
Housing
Housing material: Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn)
Type of locking: for standard and SPEEDCON interlock
Pg screw connection: none
Degree of protection (plugged in): IP67
Thread type: M23
Environmental and real-life conditionsAmbient conditions
Ambient temperature (operation): -40°C ... 125°C
Download
PER SCARICARE I DOCUMENTI E' NECESSARIO EFFETTUARE L'ACCESSO AL SITO

Assembly_instructions_00056.pdf

Manufacturer_declaration_05486.pdf

Manufacturer_declaration_11992.pdf

Technical_drawing_17366.pdf
